17 models

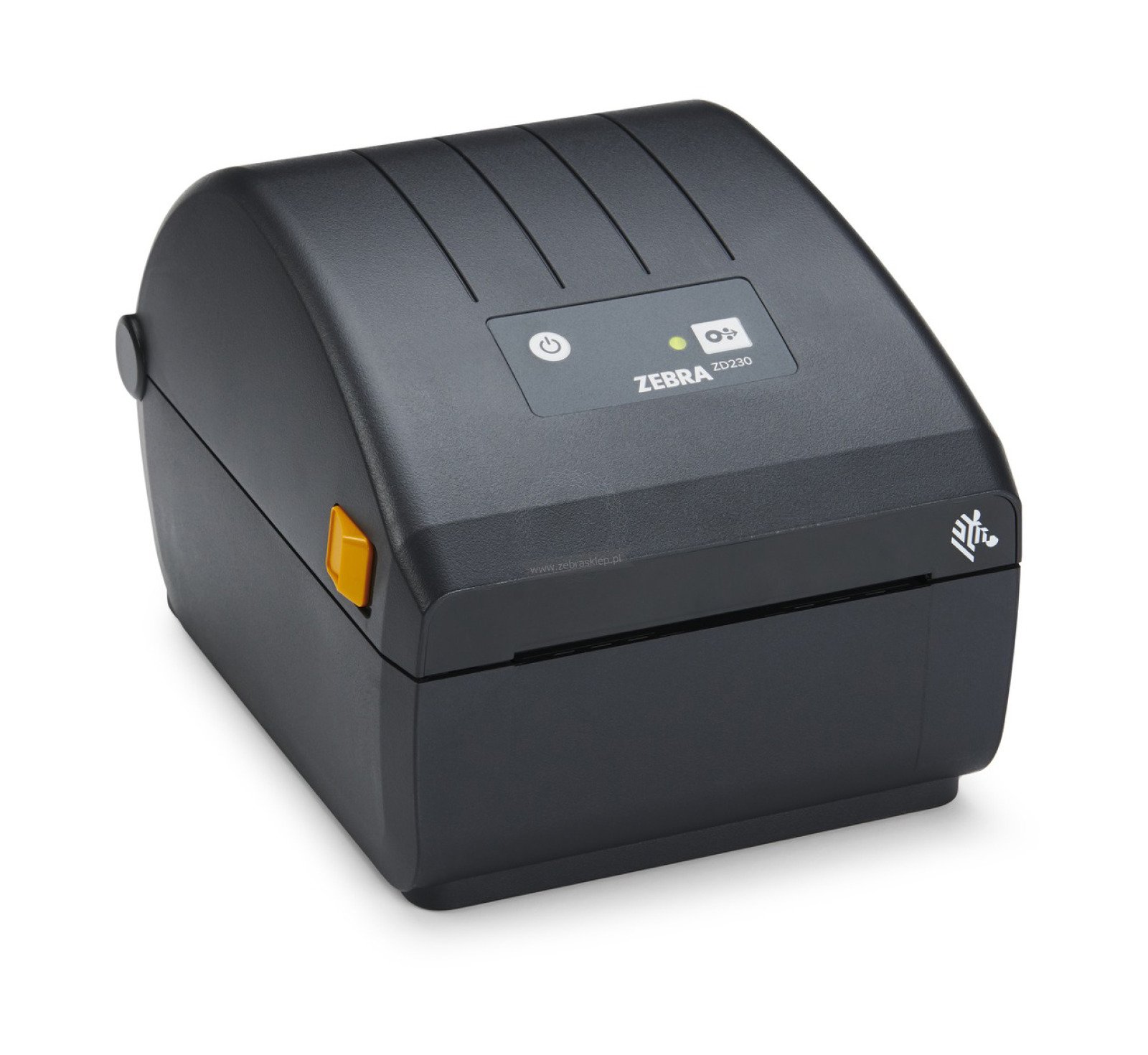

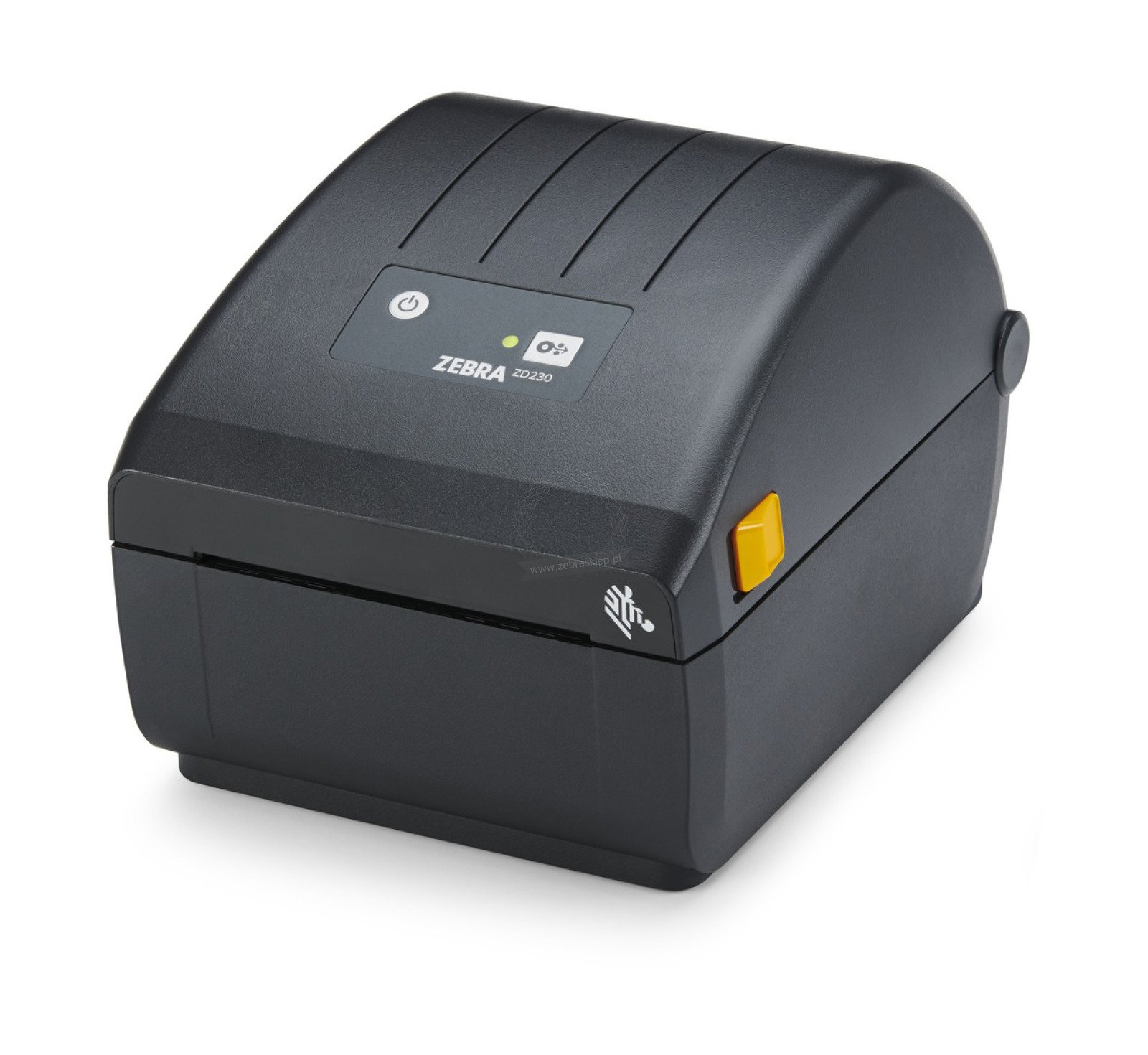

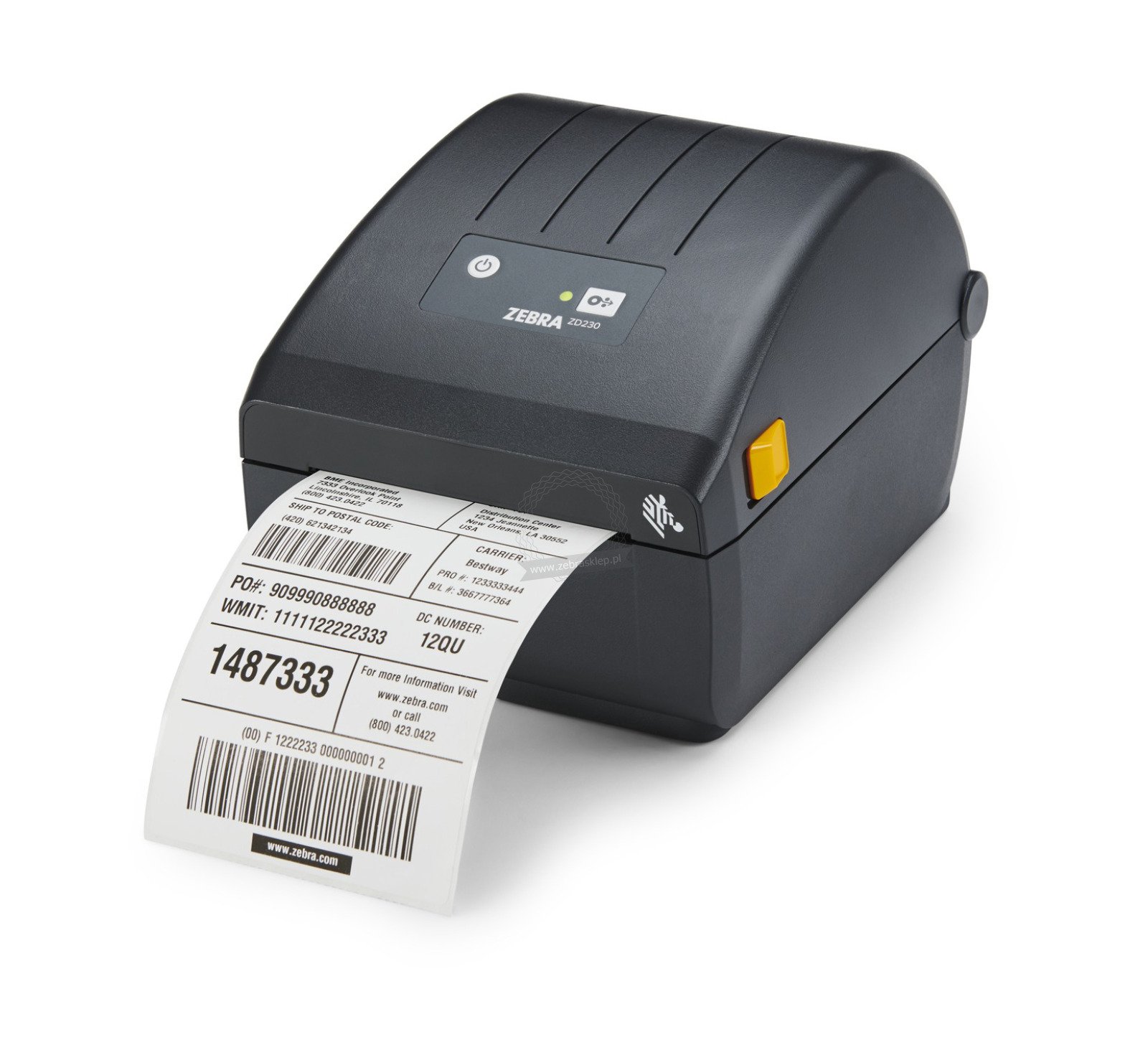

Direct thermal printer ZD230 Zebra; Standard EZPL, 203 dpi, EU/UK Power Cord, USB, Ethernet, Dispenser (Peeler)

Name: Direct thermal printer ZD230 Zebra; Standard EZPL, 203 dpi, EU/UK Power Cord, USB, Ethernet, Dispenser (Peeler)
Brand: Zebra
SKU: ZD23042-D1EC00EZ
Price: 292.80 EUR
Availability: InStock

Cat. no.: ZD23042-D1EC00EZ

Price: €292.80

SRP: €489.30

Save up to €196.50

Print methods

direct thermal thermal termiczny/termotransferowy thermal/thermal transfer termiczny direct thermal/thermal transfer

Printing resolution

203 dpi (8 pts/mm) 203 dpi (8 pkt/mm) 203 dpi (8 pts. / mm) 203 dpi (8 pkt. / mm)

Print speed

152 mm/s 152 mm per second 152 mm na sekundę

Maximum label width

4 in./112 mm 112 mm

Media types

On a roll or fanfold, die-cut or continuous media with or without black mark, cards, continuous receipt paper, wristbands On roll or fanfold, die-cut or continuous feed with or without black mark, tags, continuous receipt paper, wristbands Na rolce lub składanka, sztancowane lub nośnik ciągły z czarnym znacznikiem lub bez, kartoniki, ciągły papier paragonowy, opaski na rękę On roll or fanfold, die-cut or continuous feed with or without black mark, cards, continuous receipt paper, wristbands

Cutter

Not Yes

Peeler

Not Yes

Real-time clock

no No Nie nie

WIFI

Not Yes

ETHERNET

Not Yes

Compare all parameters

Availability 5-6 days in stock

Other configurations ZD230 17 models

You are planning a major purchase, carrying out a project, Find out more.

Features

Producer:

Zebra

catalog No.: ZD23042-D1EC00EZ

Printer specification
Print methods	direct thermal
Printing resolution	203 dpi (8 pts. / mm)
Print speed	152 mm per second
Maximum print width	104 mm
Maximum print length	991 mm
Maximum label width	25,4 mm
Maximum label width	112 mm
Maximum label length	991 mm
Label roll outer diameter	127 mm
Label roll inner diameter	25,4 mm
Label thickness	0.08 mm (min), 0.1905 mm (max) (peel mode only)
Media types	On roll or fanfold, die-cut or continuous feed with or without black mark, cards, continuous receipt paper, wristbands
Memory	Flash 256 MB, SDRAM 128 MB
Programming languages	ZPL II; EPL 2; XML
Supported codes	Bar width ratio: 2:1 and 3:1; Barcodes (1D): Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2- or 5-digit extensions, Plessey, Postnet, standard 2 of 5, industrial 2 of 5, interleaved 2 of 5, Logmars, MSI, Codabar, Planet Code; Barcodes (2D): Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software	This printer is equipped with a basic set of Print DNA applications supported by the Link-OS Basic system
Peeler	Yes
Tear	Yes
Real-time clock	no
Additional software	full version of ZebraDesigner
Interfaces
Interface	USB, Ethernet
USB	Yes
ETHERNET	Yes
Physical specification
Color	dark gray
Warranty	36 months printer, 12 months printhead
Dimensions	220 mm (len.) × 176 mm (wid.) × 151 mm (ht.)
Weight	1,1 kg
Performance specification
Operating temperature	4,4° up to 41°C
Storage temperature	-40 up to 60°C
Operating humidity	10% up to 90% without condensation
Storage humidity	5% up to 95% without condensation
Electrical characteristics	Self-adjusting power supply (PFC compliant) 100–240 V AC, 50–60 Hz; ENERGY STAR certified
