Comsumables for ZD230

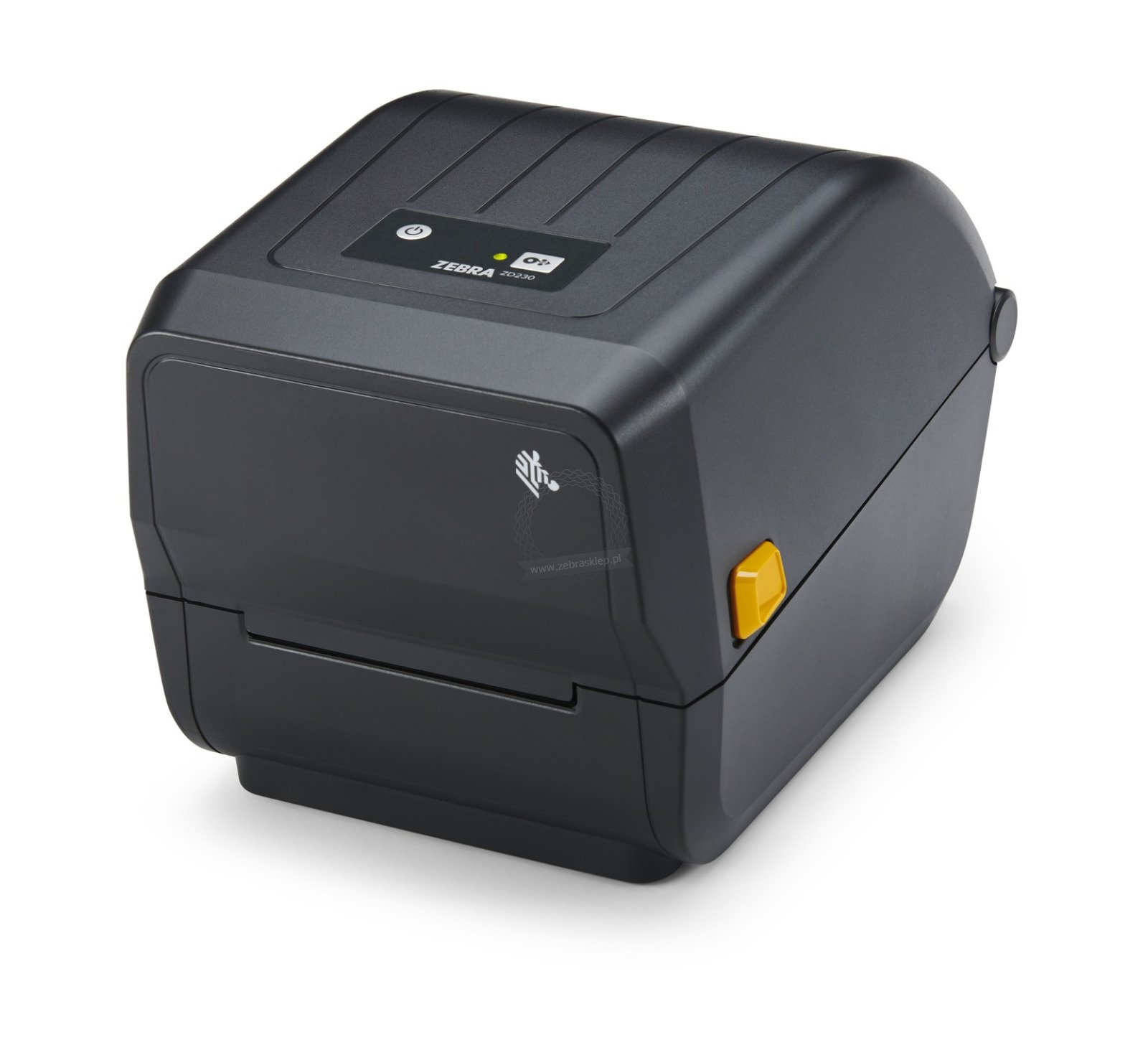

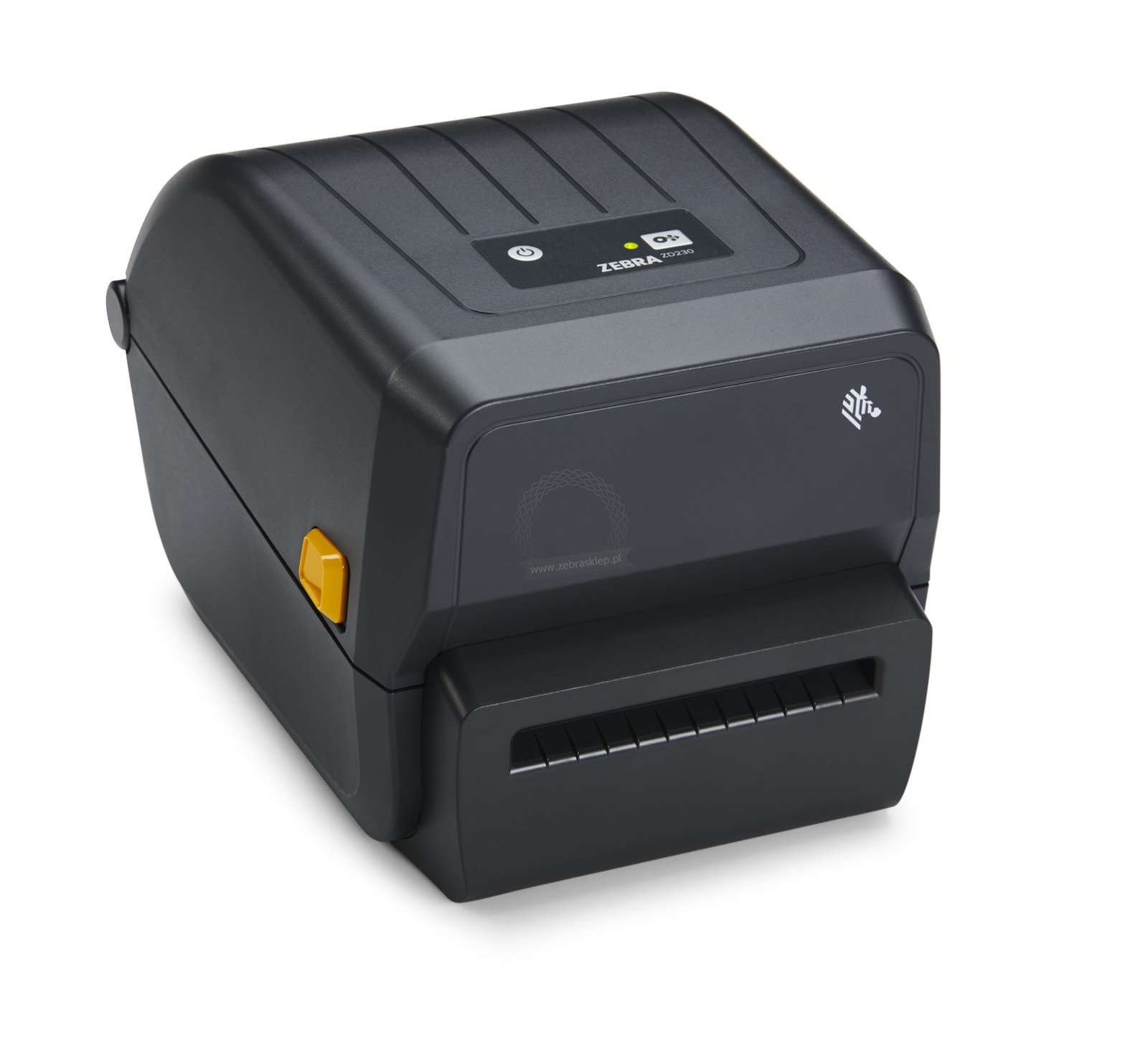

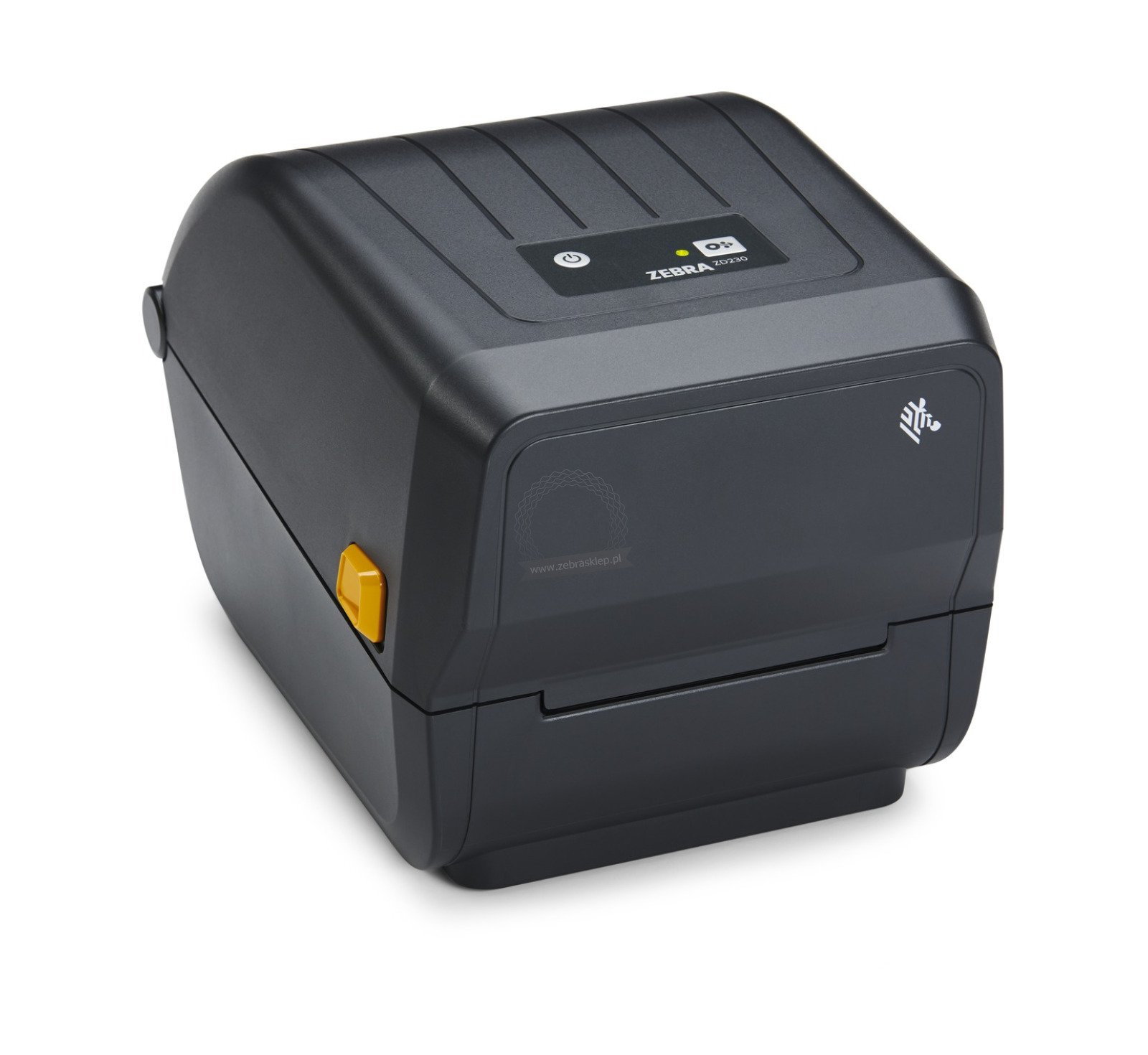

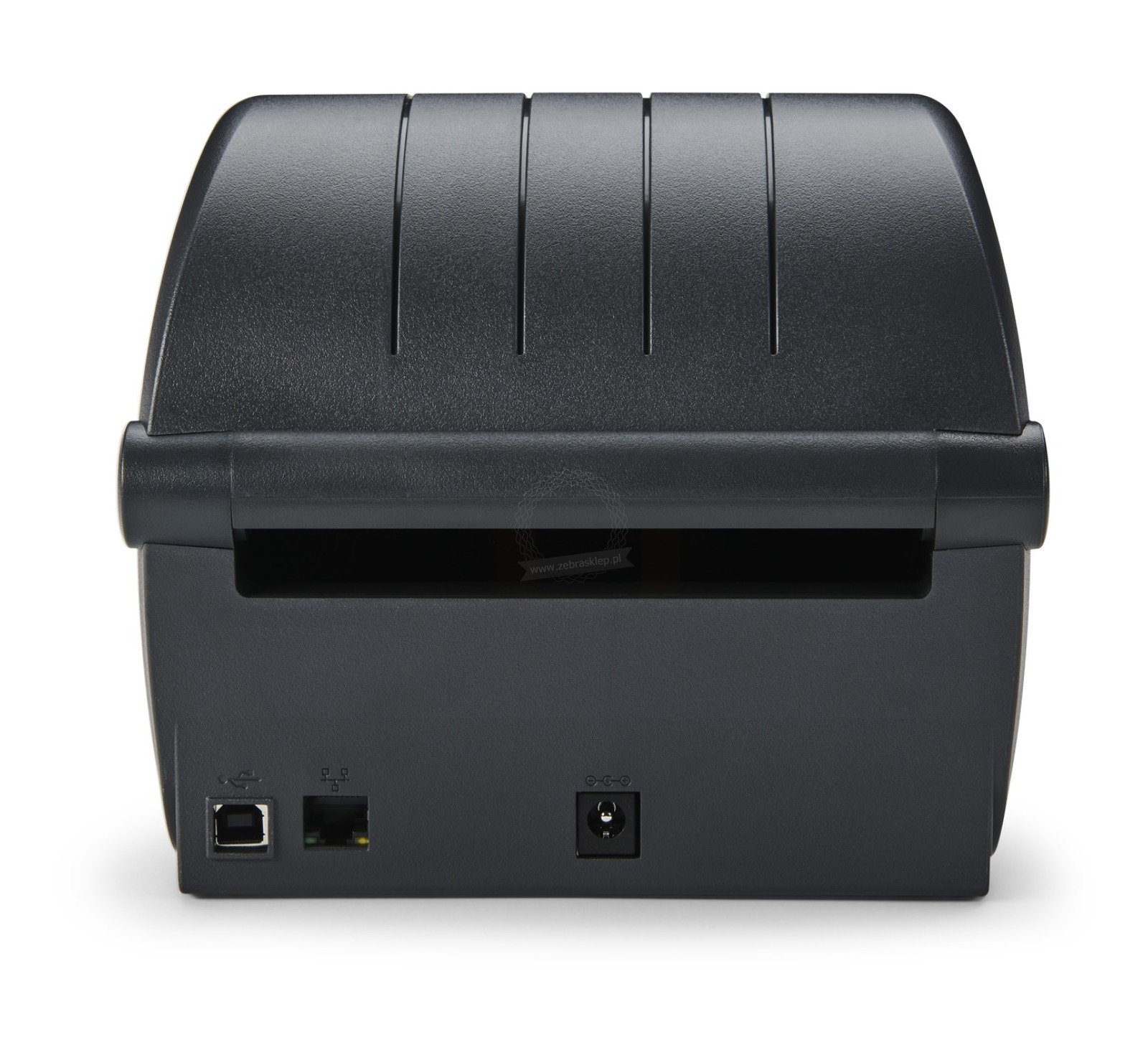

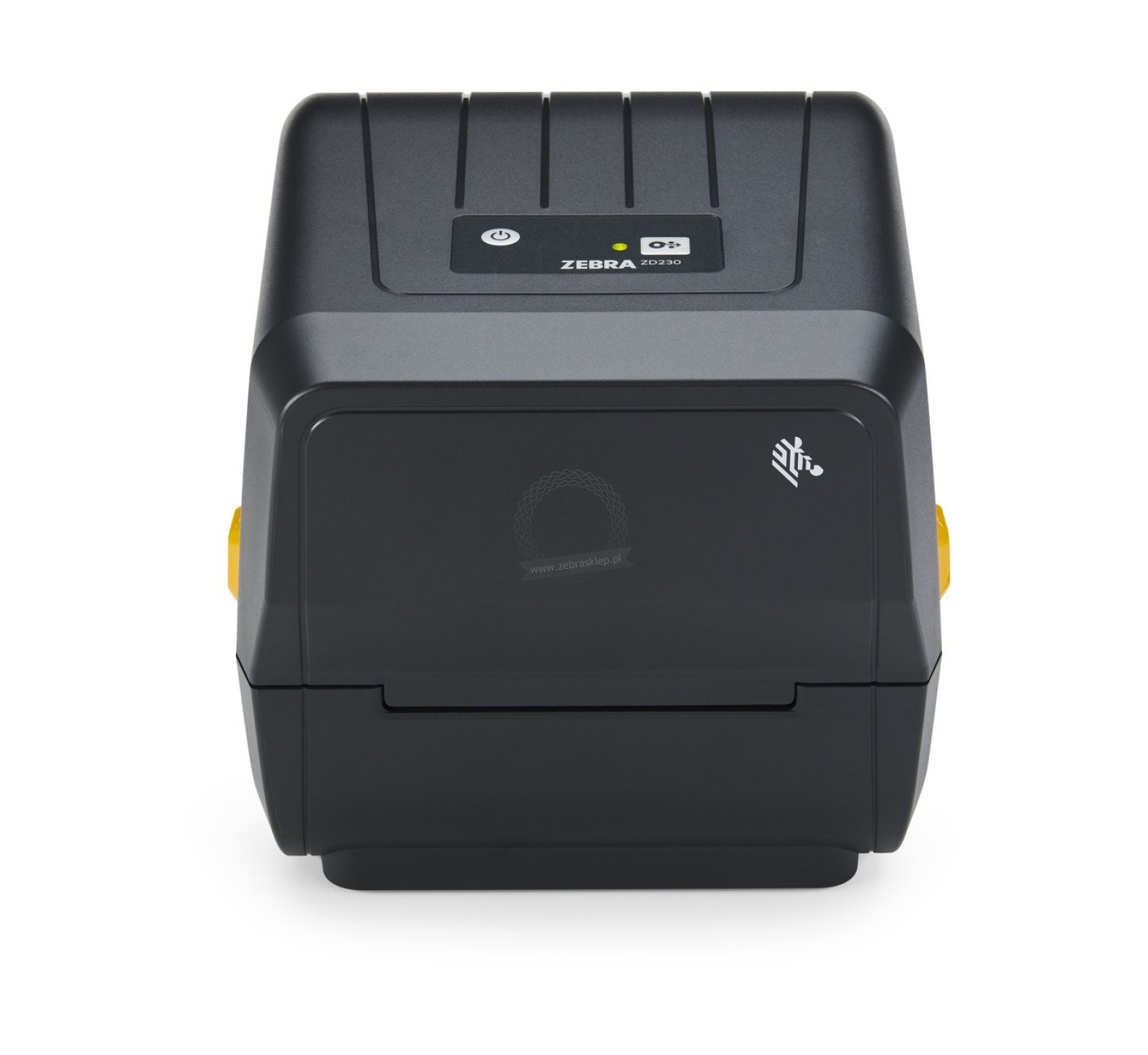

Thermal transfer printer ZD230 Zebra; (74/300M) ZD230; Standard EZPL, 203 dpi, EU and UK Power Cords, USB
Cat. no.: ZD23042-30EG00EZ
Price: €323.40
SRP: €487.30
Save up to €163.90
Print methods
Availability
24h in stock
Other configurations ZD230
13
models
You are planning a major purchase, carrying out a project, Find out more.
These printers boast dual-wall construction and all-metal printheads — components not often found in a basic printer.
With an industry best out-of-box experience, they are simple to install and begin printing.
Key features include USB connectivity for universal interoperability
ENERGY STAR® qualified to reduce operational expenses
Zebra-quality engineering, reliable operation and basic features at an affordable price
With an industry best out-of-box experience, they are simple to install and begin printing.
Key features include USB connectivity for universal interoperability
ENERGY STAR® qualified to reduce operational expenses
Zebra-quality engineering, reliable operation and basic features at an affordable price
Features
Producer:
Zebra
catalog No.: ZD23042-30EG00EZ
Printer specification |
|
| Print methods | thermal/thermal transfer |
| Printing resolution | 203 dpi (8 pts/mm) |
| Print speed | 152 mm/s |
| Maximum print width | 104 mm (4.09") |
| Maximum print length | 991 mm |
| Maximum label width | 1,00 in./25,4 mm |
| Maximum label width | 4 in./112 mm |
| Maximum label length | 39,0 in./991 mm |
| Label roll outer diameter | 5.00 in./127 mm |
| Label roll inner diameter | 1.0 in. (25,4 mm) |
| Label thickness | 0.003 in. (0.08 mm) minimum; 0.0075 in. (0.1905 mm) maximum (tear-off mode only) |
| Media types | On roll or fanfold, die-cut or continuous feed with or without black mark, tags, continuous receipt paper, wristbands |
| Ribbon width | 1,33 in./33,8 mm ~ 4,3 in./109,2 mm |
| Ribbon length | 74 m/300 m |
| Ribbon roll inner diameter | 25,4 m (300m); 12,7 m (74 m) |
| Memory | Flash 256 MB, SDRAM 128 MB |
| Programming languages | ZPL II; EPL 2; XML |
| Supported codes | Stosunek kresek: 2:1 oraz 3:1; Kody kreskowe (1D): Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC i EAN z rozszerzeniami 2- lub 5-cyfrowymi, Plessey, Postnet, standardowy 2 z 5, przemysłowy 2 z 5, przeplatany 2 z 5, Logmars, MSI, Codabar, Planet Code; Kody kreskowe (2D): Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Software | This printer comes with a basic set of Print DNA applications supported by the Link-OS Basic system |
| Ribbon roll | external |
| Tear | Yes |
| Real-time clock | No |
| Additional software | full version of ZebraDesigner |
Interfaces |
|
| Interface | USB |
| USB | Yes |
Physical specification |
|
| Color | dark gray |
| Warranty | printer 24 months, printhead 6 months |
| Dimensions | 197 x 191 x 267 mm (szer. x wys. x dł.) |
| Weight | 1.1 kg |
Performance specification |
|
| Operating temperature | 40°F to 105°F/4,4°C to 41°C |
| Storage temperature | -40°F to 140°F/-40°C to 60°C |
| Operating humidity | 10% to 90% without condensation |
| Storage humidity | 5% to 95% without condensation |
| Electrical characteristics | Autosensing power supply (PFC compliant) 100–240 V AC, 50–60 Hz; with ENERGY STAR certification |
Other configurations
Compare configurations
13
models
ZD23042-32EG00EZ
Thermal transfer printer ZD230 Zebra; (74/300M) ZD230; Standard EZPL, 203 dpi, EU and UK Power Cords, USB, Cutter
Net: €418.46
Gross: €514.70
ZD23042-D2EG00EZ
Direct thermal printer ZD230 Zebra; Standard EZPL, 203 dpi, EU and UK Power Cords, USB, Cutter
Net: €354.15
Gross: €435.60
ZD23042-D0EC00EZ
Direct thermal printer ZD230 Zebra; Standard EZPL, 203 dpi, EU and UK Power Cords, USB, Ethernet
Net: €269.59
Gross: €331.60
ZD23042-30EG00EZ
Thermal transfer printer ZD230 Zebra; (74/300M) ZD230; Standard EZPL, 203 dpi, EU and UK Power Cords, USB
Net: €262.93
Gross: €323.40
ZD23042-30EC00EZ
Thermal transfer printer ZD230 Zebra; (74/300M) ZD230; Standard EZPL, 203 dpi, EU and UK Power Cords, USB, 802.11ac Wi-Fi, Bluetooth 4 ROW
Net: €281.46
Gross: €346.20
ZD23042-30ED02EZ
Thermal transfer printer ZD230 Zebra; (74/300M) ZD230; Standard EZPL, 203 dpi, EU and UK Power Cords, USB, 802.11ac Wi-Fi, Bluetooth 4 ROW
Net: €336.26
Gross: €413.60
ZD23042-D0EG00EZ
Direct thermal printer ZD230 Zebra; Standard EZPL, 203 dpi, EU and UK Power Cords, USB
Net: €250.98
Gross: €308.70
ZD23042-D0ED02EZ
Direct thermal printer ZD230 Zebra;Standard EZPL, 203 dpi, EU and UK Power Cords, USB, 802.11ac Wi-Fi, Bluetooth 4 ROW
Net: €325.04
Gross: €399.80
ZD23042-31EC00EZ
Thermal transfer printer ZD230 Zebra; (74/300M), Standard EZPL, 203 dpi, EU power supply, USB, Ethernet, Peeler
Net: €283.01
Gross: €348.10
ZD23042-D1EG00EZ
Direct thermal printer ZD230 Zebra; Standard EZPL, 203 dpi, EU and UK Power Cords, USB, Dispenser (Peeler)
Net: €266.42
Gross: €327.70
ZD23042-31EG00EZ
Thermal transfer printer ZD230 Zebra; (74/300M) ZD230; Standard EZPL, 203 dpi, EU and UK Power Cords, USB, Dispenser (Peeler)
Net: €282.85
Gross: €347.90
ZD23W42-30EC00EZ
Thermal transfer printer ZD230 Zebra; (74/300M) ZD230 (White version); Standard EZPL, 203 dpi, EU and UK Power Cords, USB, Ethernet
Net: €261.46
Gross: €321.60
ZD23W42-D0EC00EZ
Direct thermal printer ZD230 Zebra; (White version); Standard EZPL, 203 dpi, EU and UK Power Cords, USB, Ethernet
Net: €250.41
Gross: €308.00
