Comsumables for ZD230

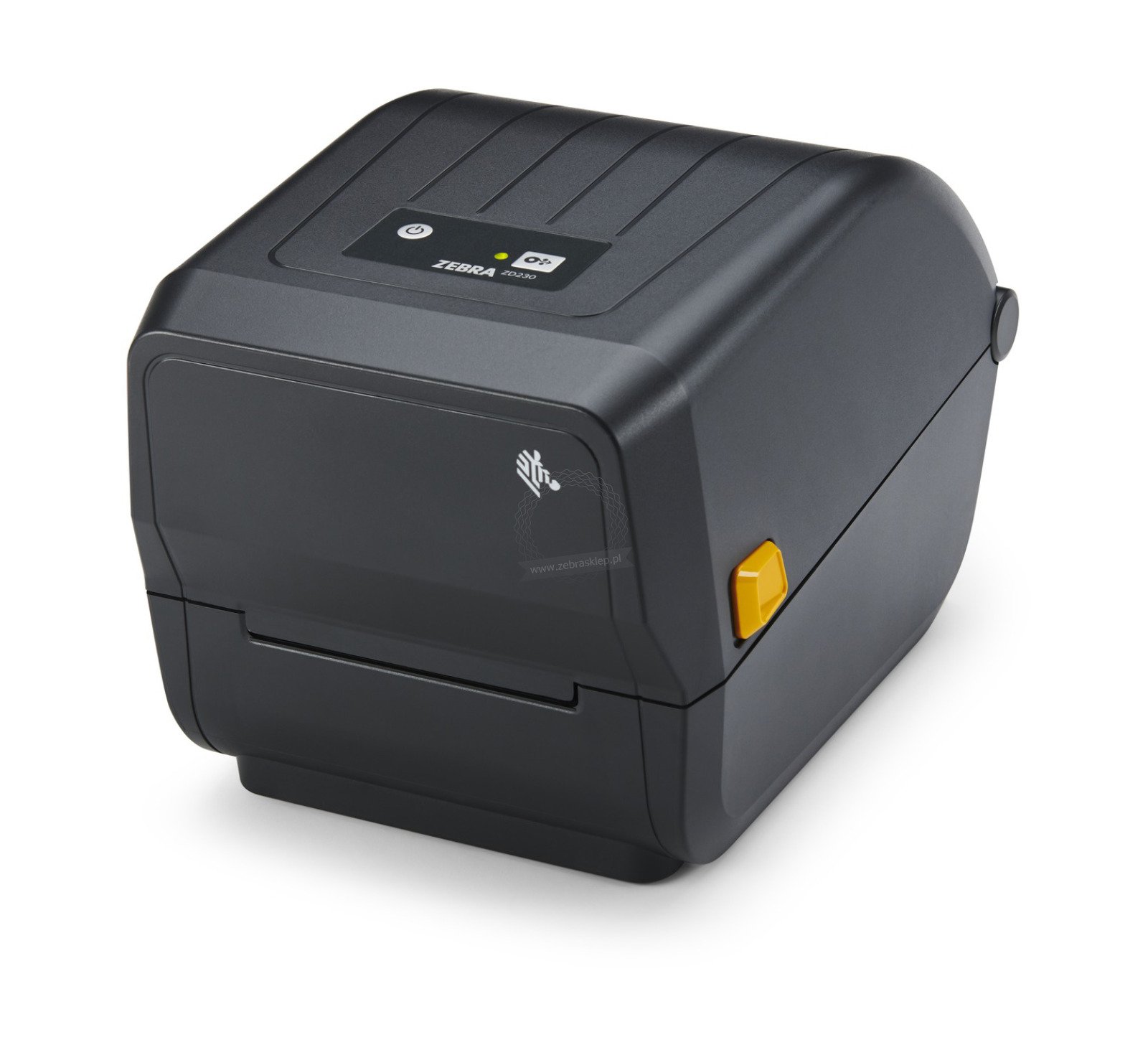

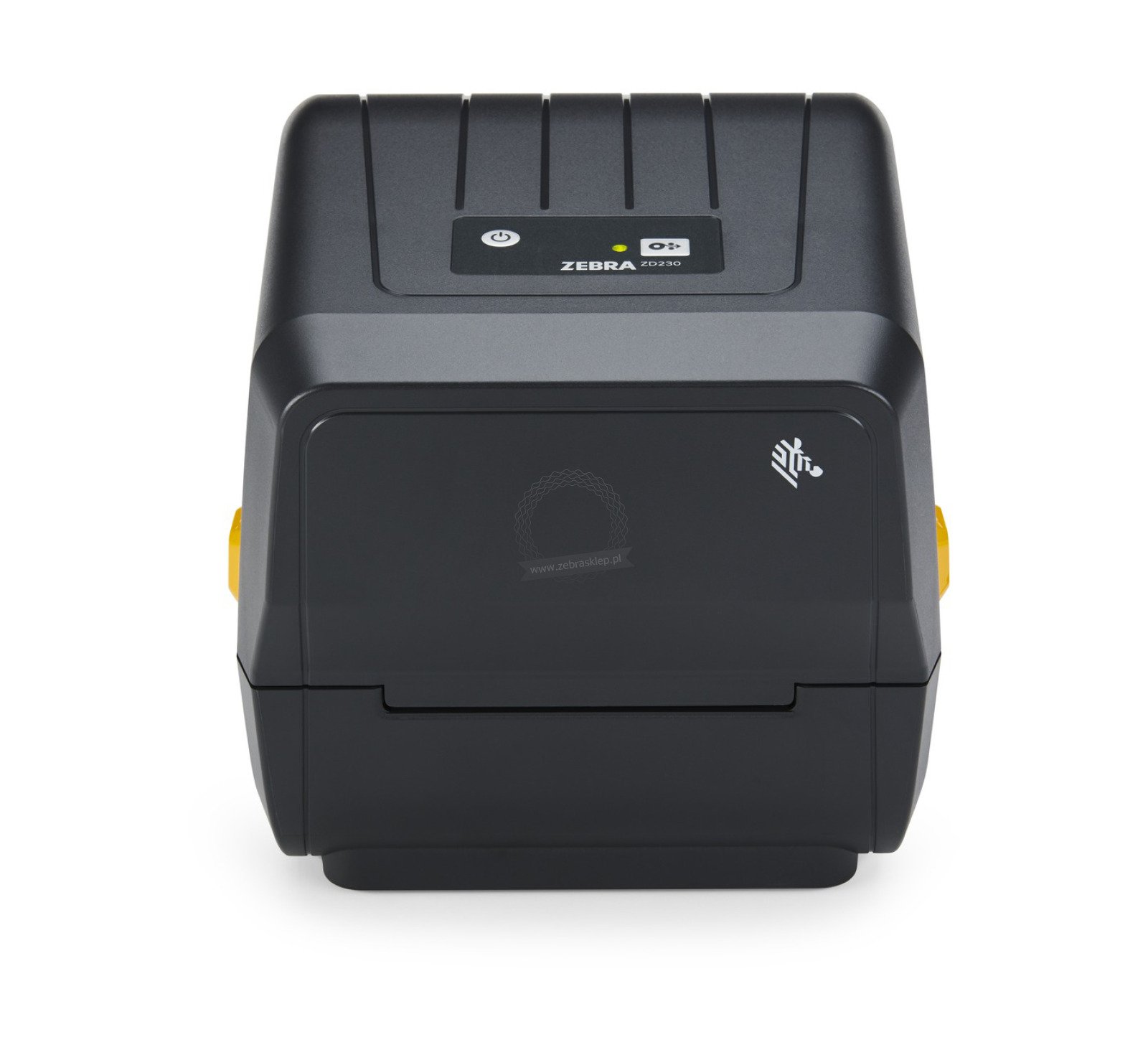

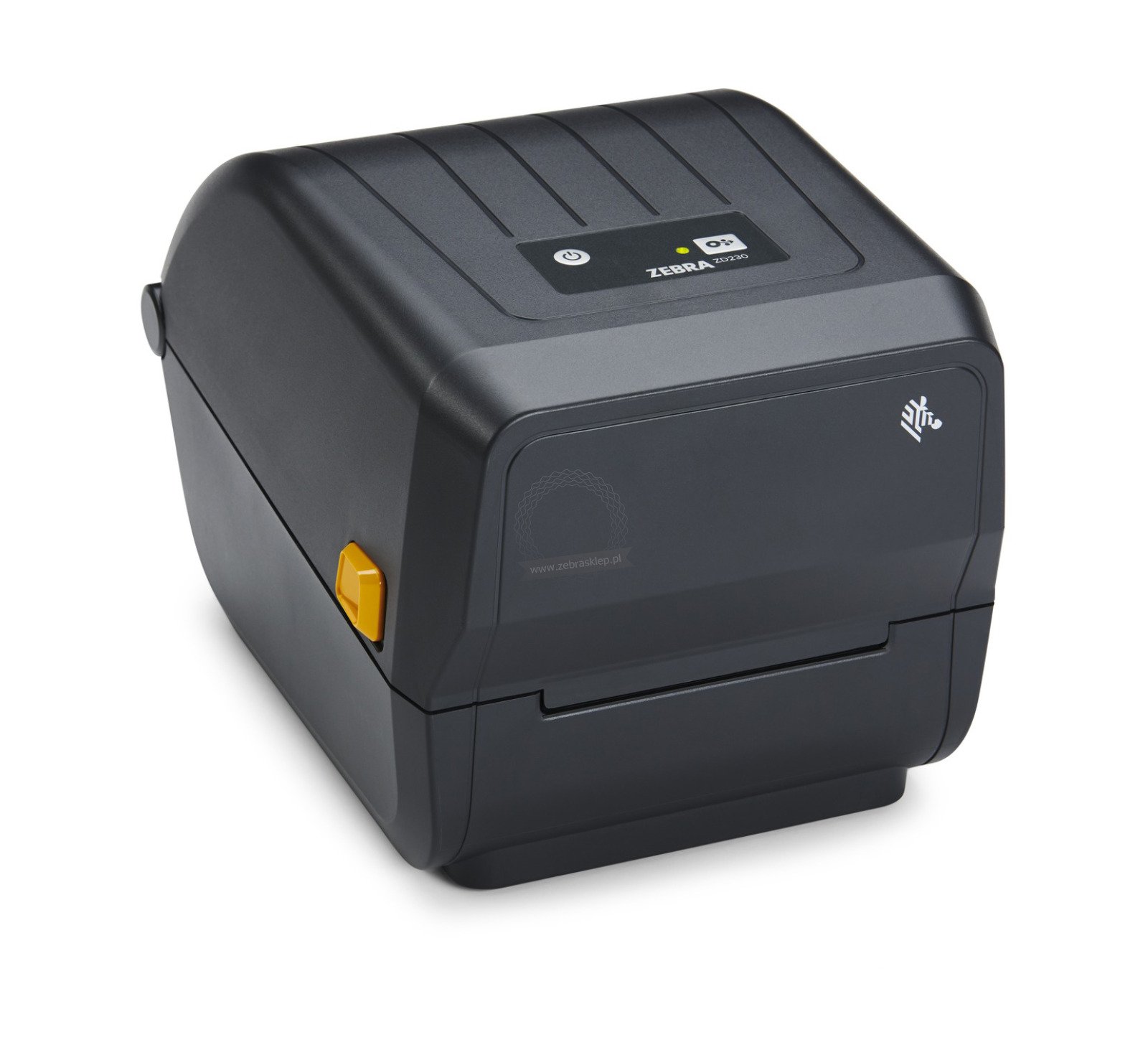

Thermal transfer printer (74/300M) ZD230 Zebra; Standard EZPL, 203 dpi, EU and UK Power Cords, USB, Ethernet, Cutter
Cat. no.: ZD23042-32EC00EZ
Price: €533.30
SRP: €773.00
Save up to €239.70
Print methods
Printing resolution
Print speed
Maximum label width
Media types
On a roll or fanfold, die-cut or continuous media with or without black mark, cards, continuous receipt paper, wristbands
On roll or fanfold, die-cut or continuous feed with or without black mark, tags, continuous receipt paper, wristbands
Na rolce lub składanka, sztancowane lub nośnik ciągły z czarnym znacznikiem lub bez, kartoniki, ciągły papier paragonowy, opaski na rękę
On roll or fanfold, die-cut or continuous feed with or without black mark, cards, continuous receipt paper, wristbands
Availability
Make a phone call +48 668 949 599
Other configurations ZD230
17
models
You are planning a major purchase, carrying out a project, Find out more.
Features
Producer:
Zebra
catalog No.: ZD23042-32EC00EZ
Printer specification |
|
| Print methods | direct thermal/thermal transfer |
| Printing resolution | 203 dpi (8 pts. / mm) |
| Print speed | 152 mm per second |
| Maximum print width | 104 mm |
| Maximum print length | 991 mm |
| Maximum label width | 25,4 mm |
| Maximum label width | 112 mm |
| Maximum label length | 991 mm |
| Label roll outer diameter | 127 mm |
| Label roll inner diameter | 25,4 mm |
| Label thickness | 0.08 mm (min), 0.1905 mm (max) (peel mode only) |
| Media types | On roll or fanfold, die-cut or continuous feed with or without black mark, cards, continuous receipt paper, wristbands |
| Ribbon width | 33,8 mm – 109,2 mm |
| Ribbon length | 74 m/300 m |
| Ribbon roll inner diameter | 25,4 m (300m); 12,7 m (74 m) |
| Memory | Flash 256 MB, SDRAM 128 MB |
| Programming languages | ZPL II; EPL 2; XML |
| Supported codes | Bar width ratio: 2:1 and 3:1; Barcodes (1D): Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2- or 5-digit extensions, Plessey, Postnet, standard 2 of 5, industrial 2 of 5, interleaved 2 of 5, Logmars, MSI, Codabar, Planet Code; Barcodes (2D): Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Software | This printer is equipped with a basic set of Print DNA applications supported by the Link-OS Basic system |
| Ribbon roll | external |
| Cutter | Yes |
| Tear | Yes |
| Real-time clock | no |
| Additional software | full version of ZebraDesigner |

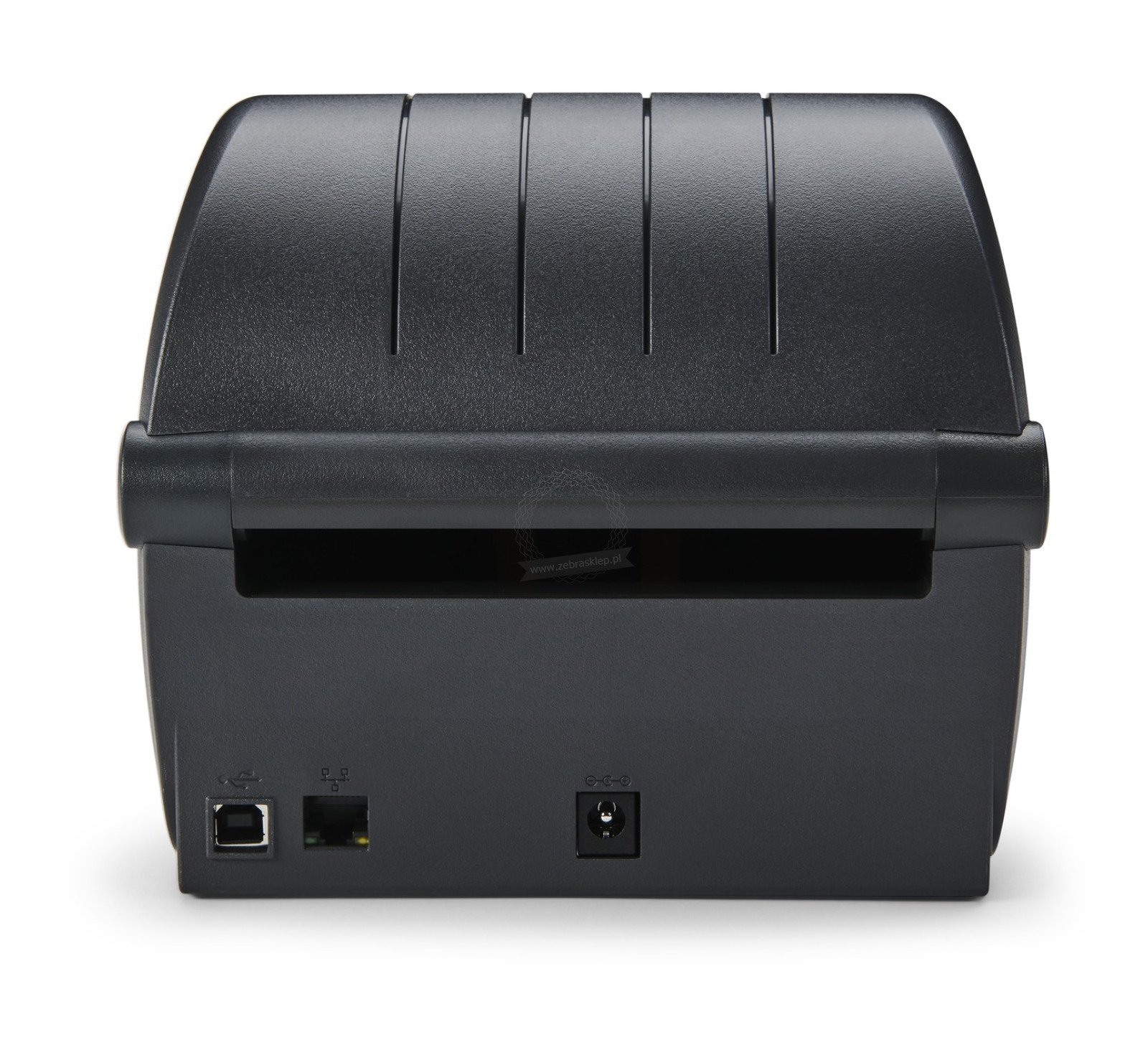

Interfaces |
|
| Interface | USB, Ethernet |
| USB | Yes |
| ETHERNET | Yes |
Physical specification |
|
| Color | dark gray |
| Warranty | 36 months printer, 12 months printhead |
| Dimensions | 267 mm (len.) × 197 mm (wid.) × 191 mm (ht.) |
| Weight | 1,7 kg |
Performance specification |
|
| Operating temperature | 4,4° up to 41°C |
| Storage temperature | -40 up to 60°C |
| Operating humidity | 10% up to 90% without condensation |
| Storage humidity | 5% up to 95% without condensation |
| Electrical characteristics | Self-adjusting power supply (PFC compliant) 100–240 V AC, 50–60 Hz; ENERGY STAR certified |
