36 models

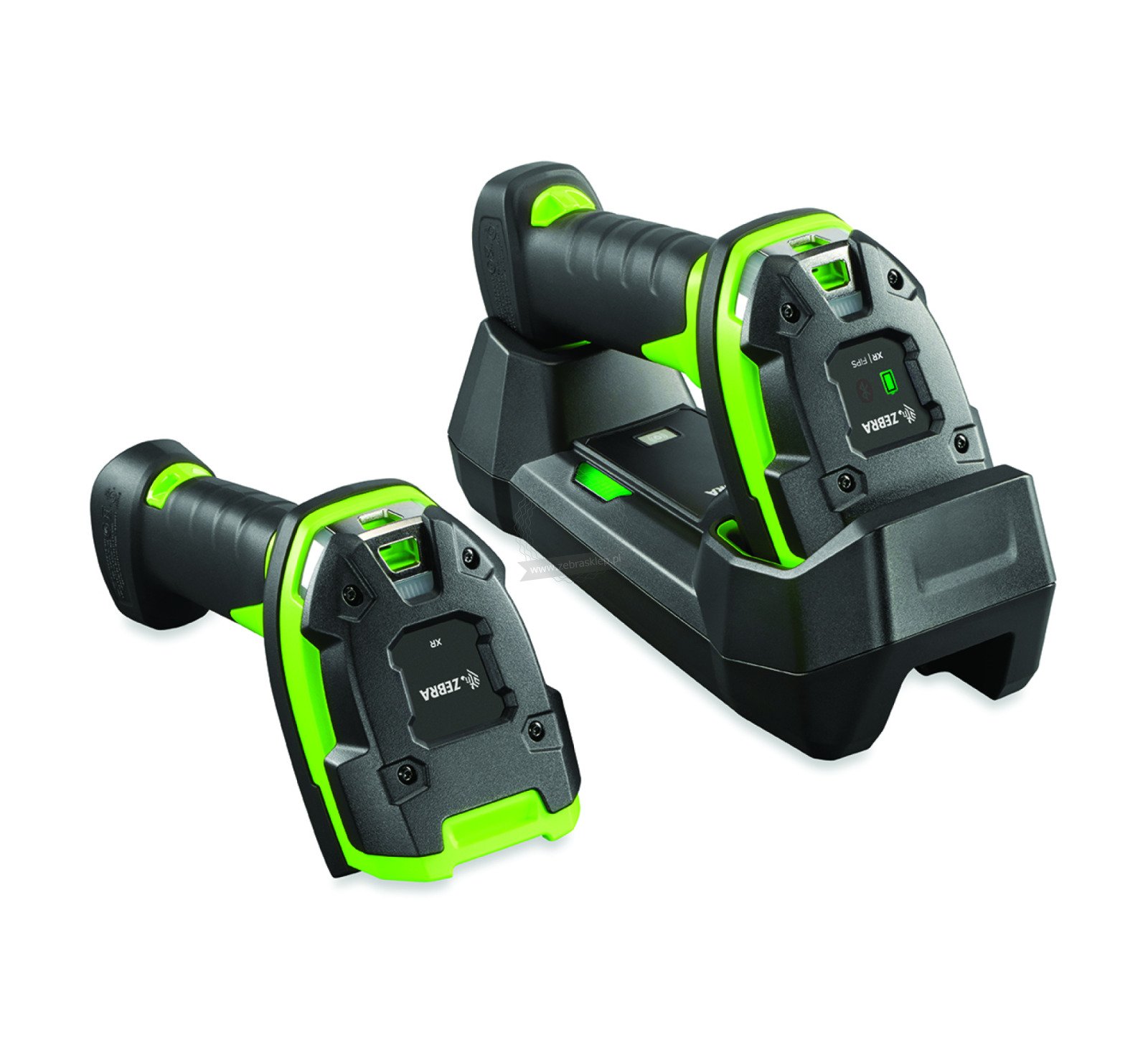

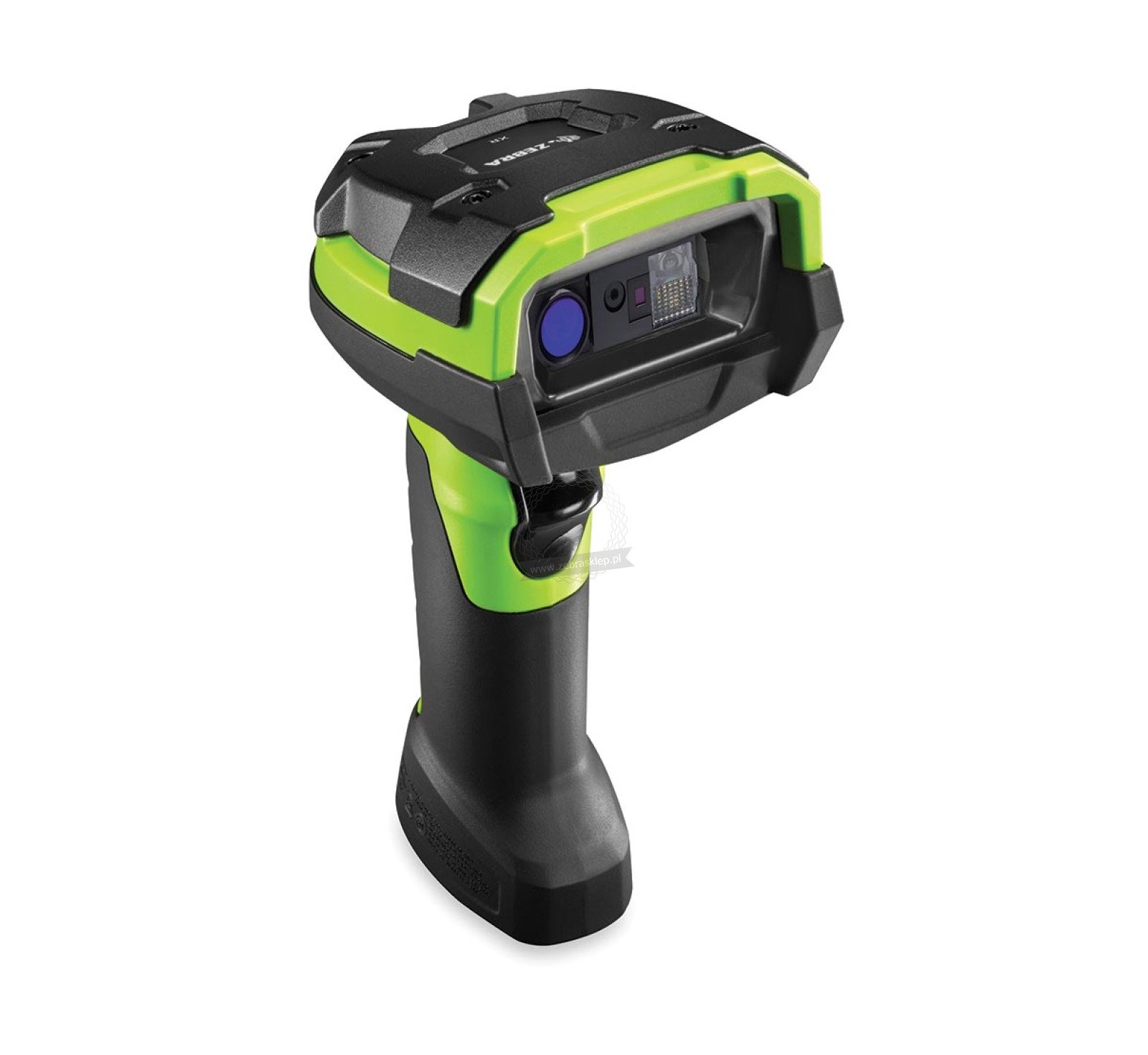

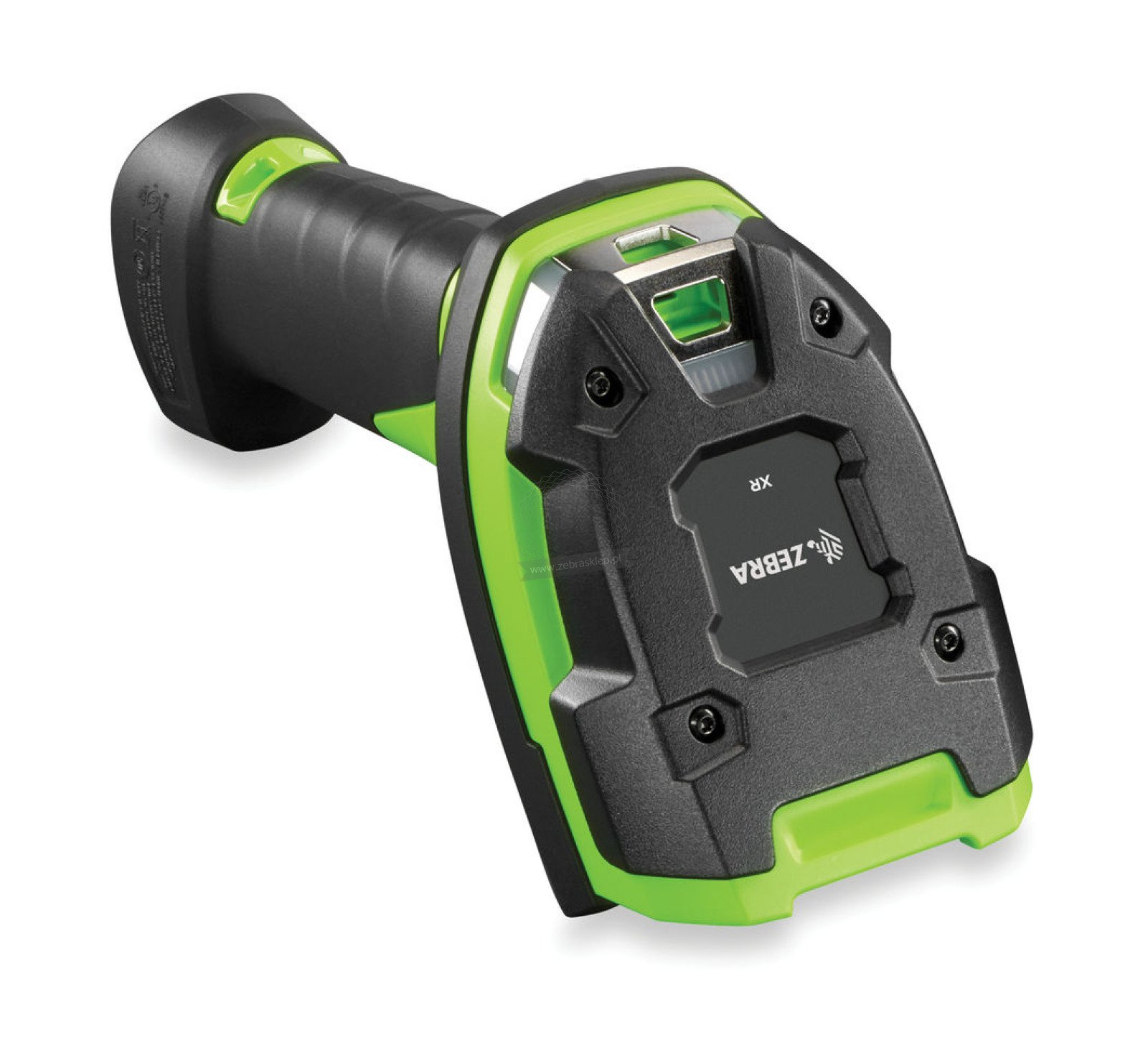

Cordless scanner Zebra DS3678-XR; STANDARD CRADLE USB KIT: DS3678-XR6F003VZWW, CBA-U42-S07PAR, STB3678-C100F3WW , PWR-BGA12V50W0WW , 23844-00-00R

Cat. no.: DS3678-XR3U4212SVW

Price: €1 235.00

SRP: €1 514.30

Save up to €279.30

ETHERNET

Not Yes

RS-232

Not Yes

Scanner type

Imager 2D, 1D Imager 2D/1D, SE5800 (Extended Range) Imager 2D/1D, HP (High Performance) Imager 2D, 1D, DPM

Decode ranges

to 152 cm 66 cm 203 cm to 32 m 660 cm do 152 cm to 203,2 cm 0,5 to 14,7 cm depending on the code

Decode range type

SR ER (XR) ER HP (KD)

IP norm

Scanner: IP65 i IP67; base station FLB: IP65 Scanner: IP65 i IP68, station: IP65 Skaner: IP65 i IP67; stacja bazowa FLB: IP65

Cable

RS232 - Serial not included USB cable RS232

Presentation cradle

Not Yes

Power supply

not included tak, bez kabla 230V yes yes, without cable 230V no

Charging-contact station

not included tak yes

Trigger

yes tak

High density

Not Yes

DPM metal laser etch

Not Yes

Battery capacity

3100mAh Lithium-ion Battery PowerPrecision+ 3100 mAh

Battery type

Lithium-ion Battery Bateria litowo-jonowa

Compare all parameters

Availability Make a phone call +48 668 949 599

Other configurations DS3678 36 models

Make a phone call +48 668 949 599

You are planning a major purchase, carrying out a project, Find out more.

Widest extended range 1D/2D barcode capture

High visibility green laser aimer for indoor and outdoor scanning

Ultra-rugged — can survive 10 ft./3 m drops to concrete and 7,500 tumbles

Dual IP65/IP68 sealing built to handle extreme temperatures and conditions

Includes Zebra’s DataCapture DNA technology platform of highly intelligent firmware, software, utilities and apps

Features

Producer:

Zebra

catalog No.: DS3678-XR3U4212SVW

Interfaces
Interface	Bluetooth, USB
Bluetooth	Yes
USB	Yes
Physical specification
Color	black-green
Warranty	skaner i stacja dokująca: trzydzieści sześć (36) miesięcy, bateria: dwanaście (12) miesięcy
Dimensions	18,5 cm × 7,7 cm × 14,2 cm (wys. × szer. × gł.)
Weight	410 g
Performance specification
Operating temperature	-20°C to 50°C
Storage temperature	-40°C to 70°C
Operating humidity	5% to 95% without condensation
Scanner specification
Compatible codes	1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 z 5, koreański 3 z 5, GS1 DataBar, Base 32 (włoski Pharmacode); 2D: PDF417, MicroPDF417, kody złożone, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), pocztowe; Digimarc: Technologia cyfrowych znaków wodnych; IUID: Obsługa parsowania IUID — możliwość odczytywania i wyodrębniania pól IUID zgodnie z wymaganiami danego zastosowania
Scanner type	Imager 2D/1D, SE5800 (Extended Range)
Decode ranges	to 32 m
Decode range type	ER (XR)
Feedback	świetlna, dźwiękowa, wibracja
Required code contrast	Minimalny współczynnik odbicia: 25%
Fall resistance	odporność na wielokrotne upadki na beton z wysokości 3 m (10') w temperaturze pokojowej; odporność na wielokrotne upadki na beton z wysokości 2,4 m (8’) w temperaturze od -20°C do 50°C; 7500 wstrząsów o amplitudzie 1,0 m (3,3')
IP norm	Scanner: IP65 i IP68, station: IP65
Cable	USB
Power supply	yes
Charging-contact station	yes
Multi-interface	yes
Battery capacity	Lithium-ion Battery PowerPrecision+ 3100 mAh
Scans per charge	Over 80k scans on a single charge
