Comsumables and accessories
16
Accessories for DS3678

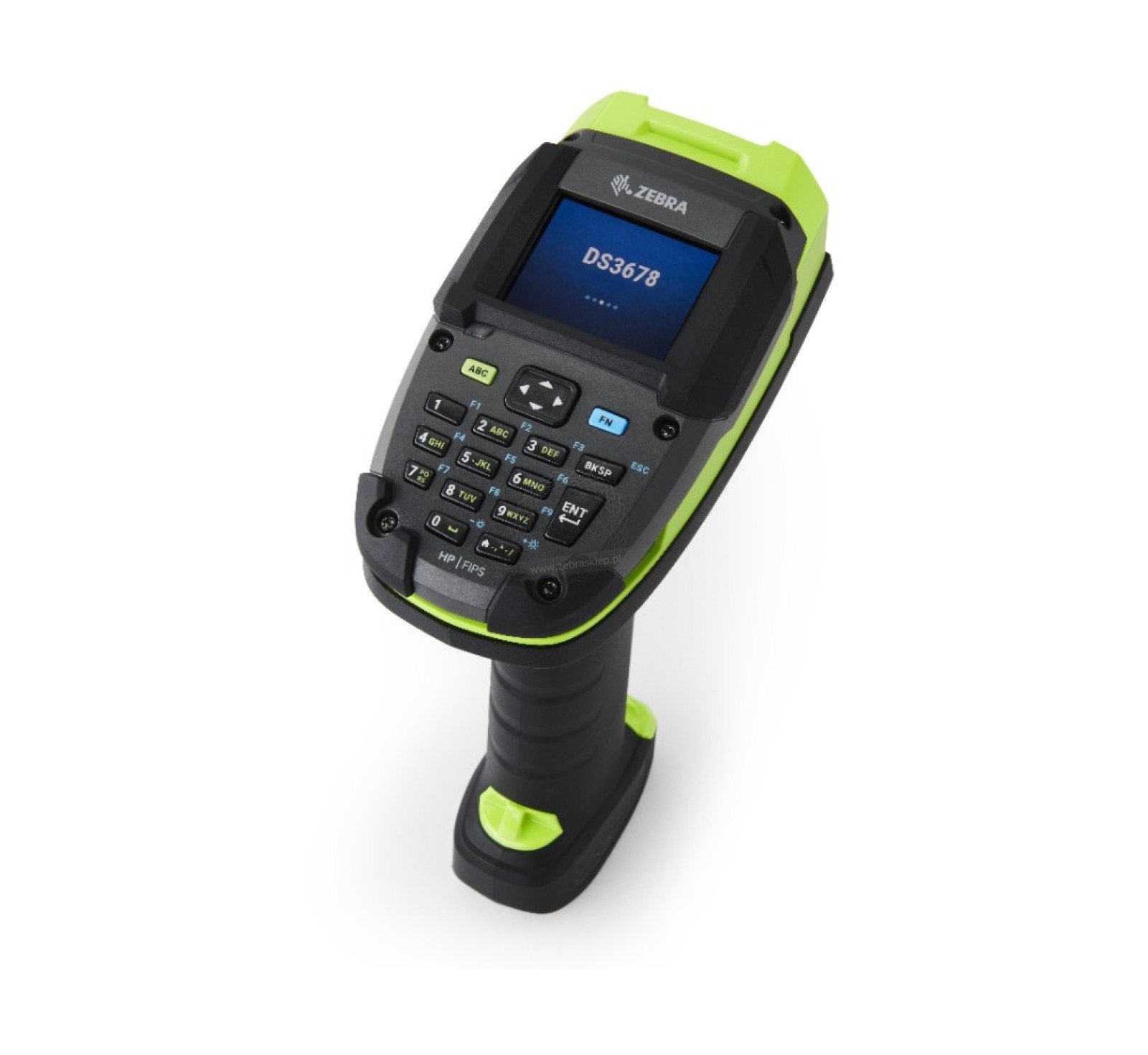

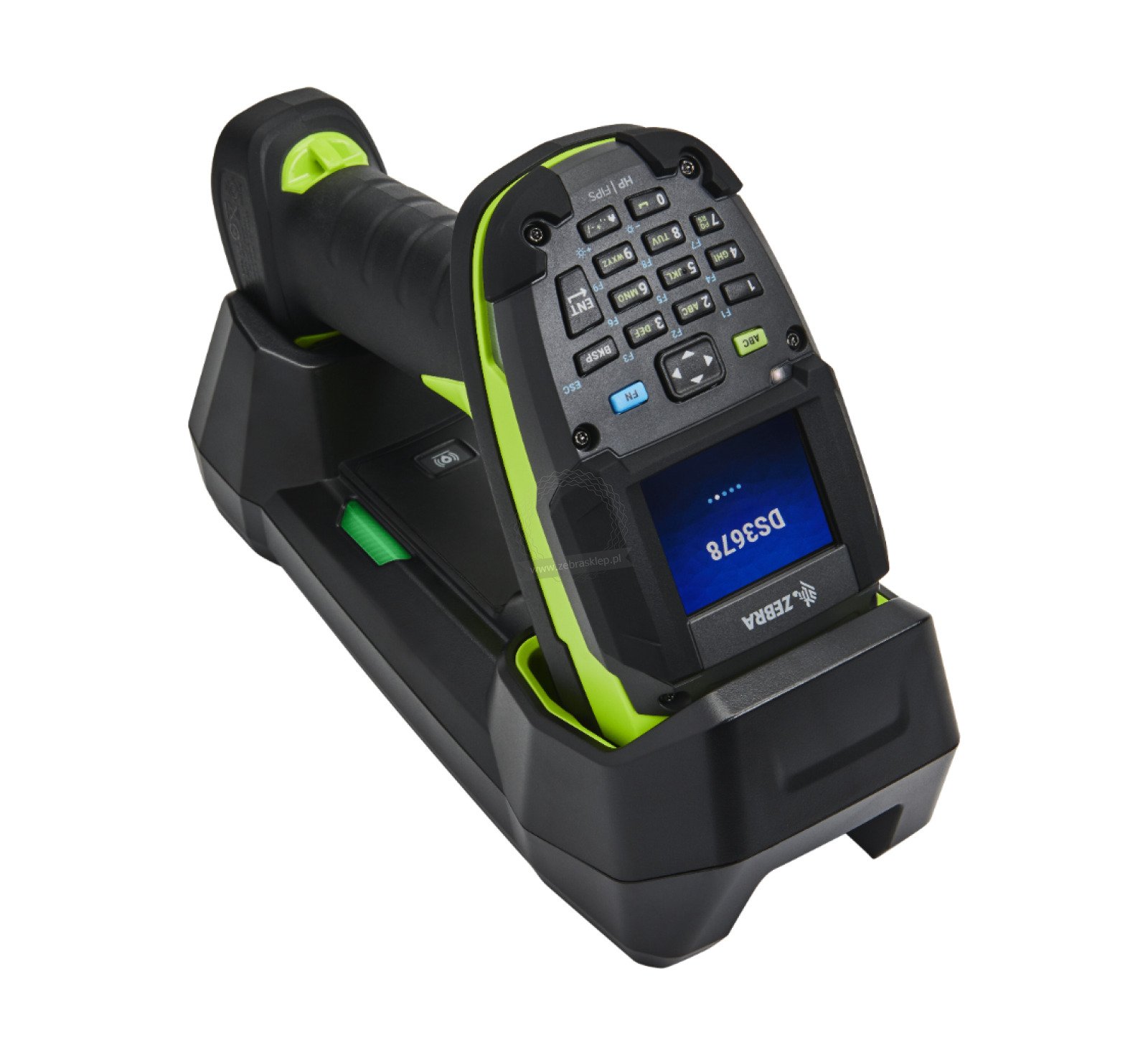

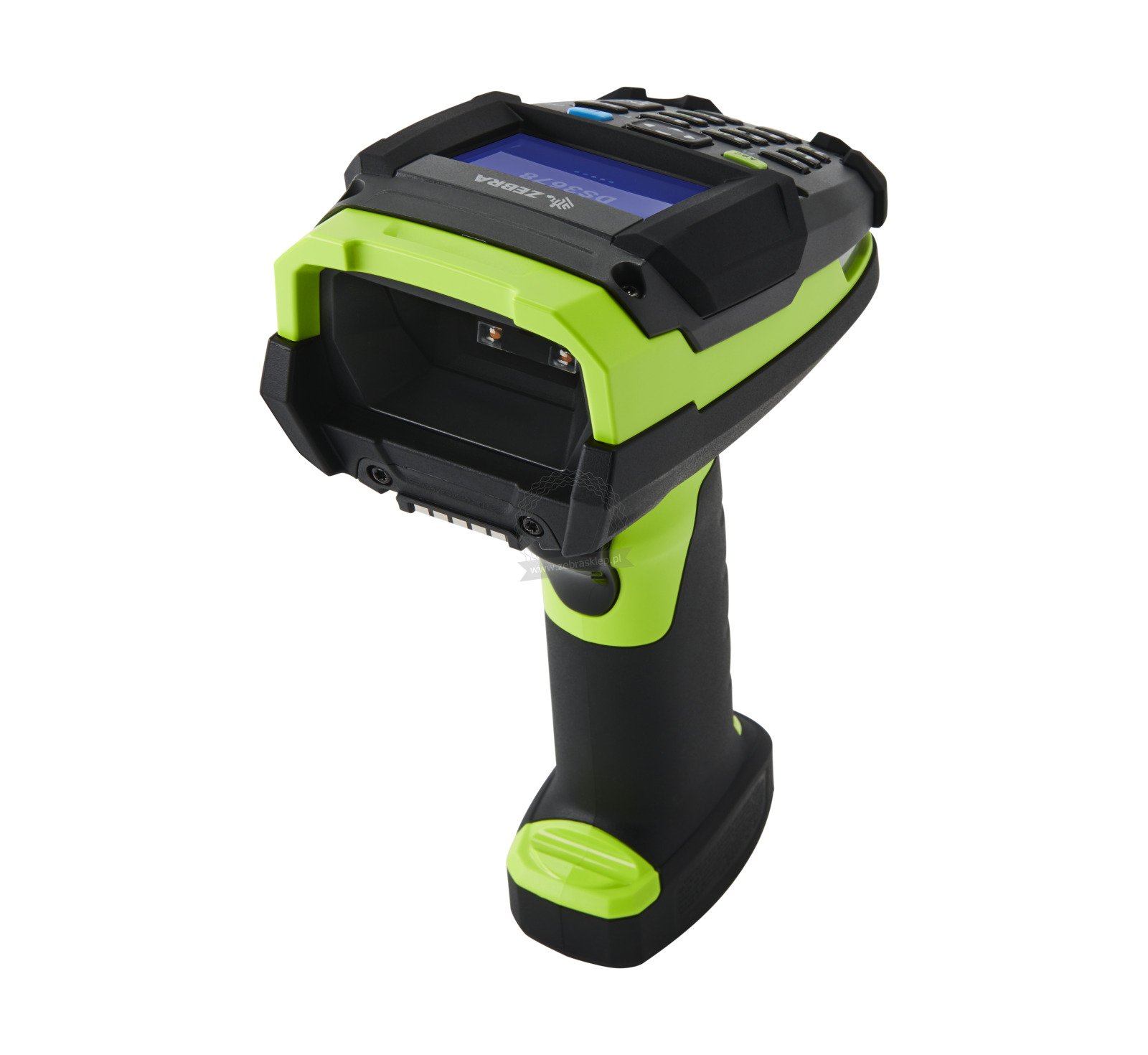

Cordless scanner Zebra DS3678-HP; KEYPAD AND DISPLAY STANDARD CRADLE KIT: DS3678-HP2F003VKWW, CBA-U42-S07PAR , STB3678-C100F3WW, PWR-BGA12V50W0WW, CBL-DC
Cat. no.: DS3678-HP3U42A2SKW
Price: €1 380.60
SRP: €1 623.60
Save up to €243.00
Scanner type
Decode ranges
IP norm
Power supply
Charging-contact station
Battery capacity
Battery type
Availability
Make a phone call +48 668 949 599
Other configurations DS3678
36
models
You are planning a major purchase, carrying out a project, Find out more.
Bright color display offers a modern, intuitive user experience. The display brightness automatically adjusts for easy viewing in any lighting condition
Five pre-built applications are ready to use right out of the box, including the ability to add quantity and location data
Ultra-rugged — can survive 10 ft./3 m drops to concrete and 7,500 tumbles
Dual IP65/IP68 sealing built to handle extreme temperatures and conditions
Includes Zebra’s DataCapture DNA technology platform of highly intelligent firmware, software, utilities and apps
Five pre-built applications are ready to use right out of the box, including the ability to add quantity and location data
Ultra-rugged — can survive 10 ft./3 m drops to concrete and 7,500 tumbles
Dual IP65/IP68 sealing built to handle extreme temperatures and conditions
Includes Zebra’s DataCapture DNA technology platform of highly intelligent firmware, software, utilities and apps
Features
Producer:
Zebra
catalog No.: DS3678-HP3U42A2SKW
Interfaces |
|
| Interface | Bluetooth, USB |
| Bluetooth | Yes |
| USB | Yes |
Physical specification |
|
| Color | black-green |
| Warranty | 38 months |
| Dimensions | 19 cm (ht.) × 7,8 cm (wid.) × 14,3 cm (dep.) |
| Weight | 510 g (18 oz) (with Battery) |
Performance specification |
|
| Operating temperature | -20°C to 50°C |
| Storage temperature | -40°C to 70°C |
| Operating humidity | 5% to 95% without condensation |
Scanner specification |
|
| Compatible codes | 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharmacode); 2D: PDF417, Micro PDF417, composite codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), postal; OCR; OCR-A/B fonts, MICR-E13B, US currency serial code; IUID standard support: IUID parsing support – ability to read and extract IUID fields according to application-specific requirements |
| Scanner type | Imager 2D/1D, HP (High Performance) |
| Decode ranges | to 203,2 cm |
| Decode range type | HP (KD) |
| Feedback | light, audio, vibration |
| Required code contrast | Minimum reflectance coefficient: 15% |
| Fall resistance | Resistance to multiple drops onto concrete from a height of 3 m (10') at room temperature; resistance to multiple drops onto concrete from a height of 2.4 m (8') at temperatures from -20°C to 50°C; 7500 shocks with an amplitude of 1.0 m (3.3') |
| IP norm | Scanner: IP65 i IP68, station: IP65 |
| Cable | USB |
| Power supply | yes |
| Charging-contact station | yes |
| Multi-interface | yes |
| Battery capacity | Lithium-ion Battery PowerPrecision+ 3100 mAh |
| Scans per charge | 60000+ |
| Additional information | features a color display and a keyboard |
Other configurations
Compare configurations
36
models
DS3678-DP2F003VZWW
Cordless scanner Zebra DS3678, BT, Industrial Green, DPM
Net: €1 234.72
Gross: €1 518.70
DS3678-SR0F003VZWW
Cordless scanner Zebra DS3678, BT, Industrial Green, do 152 cm, SR
Net: €383.17
Gross: €471.30
DS3678-ER3U42A2SVW
Cordless scanner Zebra DS3678, BT, Industrial Green, Black, 660 cm, ER, USB, Presentation Cradle
Net: €1 122.44
Gross: €1 380.60
DS3678-XR3U4212SVW
Cordless scanner Zebra DS3678-XR; STANDARD CRADLE USB KIT: DS3678-XR6F003VZWW, CBA-U42-S07PAR, STB3678-C100F3WW , PWR-BGA12V50W0WW , 23844-00-00R
Net: €946.34
Gross: €1 164.00
DS3678-XR3U4602FVW
Cordless scanner Zebra DS3678-XR; FORKLIFT CRADLE USB TRICKLE CHARGE KIT: DS3678-XR6F003VZWW , CBA-U46-S07ZAR , FLB3678-C100F3WW CRADLE WITH BRKT-MM0036W-00
Net: €1 006.10
Gross: €1 237.50
DS3678-HP2F003VKWW
Cordless scanner Zebra DS3678-HP; KEYPAD AND DISPLAY, RUGGED, AREA IMAGER, HIGH PERFORMANCE, CORDLESS, FIPS, INDUSTRIAL GREEN, VIBRATION
Net: €895.45
Gross: €1 101.40
DS3678-DP3RF50BS1W
Cordless scanner Zebra DS3678, RS232 - Serial, Presentation Cradle, DPM
Net: €1 699.11
Gross: €2 089.90
DS3678-SR3U4210SFW
Cordless scanner Zebra DS3678, BT, Industrial Green, do 152 cm, SR, USB, Presentation Cradle
Net: €712.20
Gross: €876.00
DS3678-ER3U4602FVW
Cordless scanner Zebra DS3678, BT, Industrial Green, Black, 660 cm, ER, USB
Net: €1 141.79
Gross: €1 404.40
DS3678-HP3U42A0SFW
Cordless scanner Zebra DS3678, BT, Industrial Green, 203 cm, USB, Presentation Cradle
Net: €812.76
Gross: €999.70
DS3678-XR3RF50BS1W
Cordless scanner Zebra DS3678-XR; CORDLESS SIEMENS INDUSTRIAL ETHERNET KIT: DS3678-XR6F003VZWW, CBA-RF5-S07ZAR , STB3678-C100F3WW , EA3600-S1CP-00
Net: €1 190.24
Gross: €1 464.00
DS3678-XR3U42A2SVW
Cordless scanner Zebra DS3678-XR; RUGGED STANDARD CRADLE USB KIT: DS3678-XR6F003VZWW , CBA-U42-S07, STB3678-C100F3WW , PWR-BGA12V50W0WW
Net: €946.34
Gross: €1 164.00
DS3678-SR3U42A0SFW
Cordless scanner Zebra DS3678, BT, Industrial Green, do 152 cm, SR, USB, Presentation Cradle
Net: €561.06
Gross: €690.10
DS3678-HP2F003VZWW
Cordless scanner Zebra DS3678, BT, Industrial Green, 203 cm, RS232 - Serial
Net: €539.92
Gross: €664.10
DS3678-HD2F003VZWW
Cordless scanner Zebra DS3678, BT, Industrial Green, 66 cm, high density
Net: €537.97
Gross: €661.70
DS3678-HP3RF50BS1W
Cordless scanner Zebra DS3678, Industrial Green, 203 cm, RS232 - Serial
Net: €1 087.64
Gross: €1 337.80
DS3678-ER2F003VZWW
Cordless scanner Zebra DS3678, BT, Industrial Green, 660 cm, ER
Net: €773.90
Gross: €951.90
DS3678-XR3RF50AS1W
Cordless scanner Zebra DS3678-XR; CORDLESS ROCKWELL INDUSTRIAL ETHERNET KIT: DS3678-XR6F003VZWW , CBA-RF5-S07ZAR , STB3678-C100F3WW, EA3600-R1CP-00
Net: €1 190.24
Gross: €1 464.00
DS3678-HP3U42A2SKW
Cordless scanner Zebra DS3678-HP; KEYPAD AND DISPLAY STANDARD CRADLE KIT: DS3678-HP2F003VKWW, CBA-U42-S07PAR , STB3678-C100F3WW, PWR-BGA12V50W0WW, CBL-DC
Net: €1 122.44
Gross: €1 380.60
DS3678-XR6F003VZWW
Cordless scanner Zebra DS3678-XR; RUGGED, AREA IMAGER, EXTENDED RANGE (SE58), CORDLESS, FIPS, GREEN LASER AIMER, INDUSTRIAL GREEN, VIBRATION MOTOR
Net: €677.15
Gross: €832.90
DS3678-SR3RF50BS1W
DS3678-SR CORDLESS SIEMENS/INDUSTRIAL ETHERNET KIT SCANNER Zebra
Net: €1 145.85
Gross: €1 409.40
DS3678-HP3RF50AS1W
Cordless scanner Zebra DS3678, 203 cm, RS232 - Serial, Presentation Cradle, high density
Net: €1 087.64
Gross: €1 337.80
DS3678-HD3RF50BS1W
Cordless scanner Zebra DS3678, 66 cm, RS232 - Serial, Presentation Cradle, high density
Net: €944.39
Gross: €1 161.60
DS3678-HD3RF50AS1W
Cordless scanner Zebra DS3678, Industrial Green, 66 cm, RS232 - Serial, Presentation Cradle, high density
Net: €1 069.35
Gross: €1 315.30
DS3678-ER3RF50BS1W
Cordless scanner Zebra DS3678, 660 cm, ER, RS232 - Serial, Presentation Cradle
Net: €1 190.24
Gross: €1 464.00
DS3678-ER3RF50AS1W
Cordless scanner Zebra DS3678, Industrial Green, 660 cm, ER, RS232 - Serial, Presentation Cradle
Net: €1 190.24
Gross: €1 464.00
DS3678-DP3RF50AS1W
Cordless scanner Zebra DS3678, RS232 - Serial, Presentation Cradle, DPM
Net: €1 730.65
Gross: €2 128.70
DS3678-HD3U4210SFW
Cordless scanner Zebra DS3678, BT, Industrial Green, 66 cm, USB, Presentation Cradle, high density
Net: €824.39
Gross: €1 014.00
DS3678-DP2RF50AS1W
Cordless scanner Zebra DS3678, BT, Green, RS232 - Serial, DPM
Net: €1 730.65
Gross: €2 128.70
DS3678-ER3U4212SVW
Cordless scanner Zebra DS3678, BT, Industrial Green, 660 cm, ER, USB, Presentation Cradle
Net: €1 143.58
Gross: €1 406.60
DS3678-HP3U4210SFW
Cordless scanner Zebra DS3678, BT, Industrial Green, 203 cm, USB, Presentation Cradle
Net: €843.33
Gross: €1 037.30
DS3678-HD3U42A0SFW
Cordless scanner Zebra DS3678, BT, Industrial Green, 66 cm, USB, Presentation Cradle, high density
Net: €808.94
Gross: €995.00
DS3678-DP3U4212S1W
Cordless scanner Zebra DS3678, BT, Industrial Green, USB, Presentation Cradle, DPM
Net: €1 528.62
Gross: €1 880.20
DS3678-DP3U42A2S1W
Cordless scanner Zebra DS3678, BT, Black, Industrial Green, USB, Presentation Cradle, DPM
Net: €1 505.61
Gross: €1 851.90
