36 models

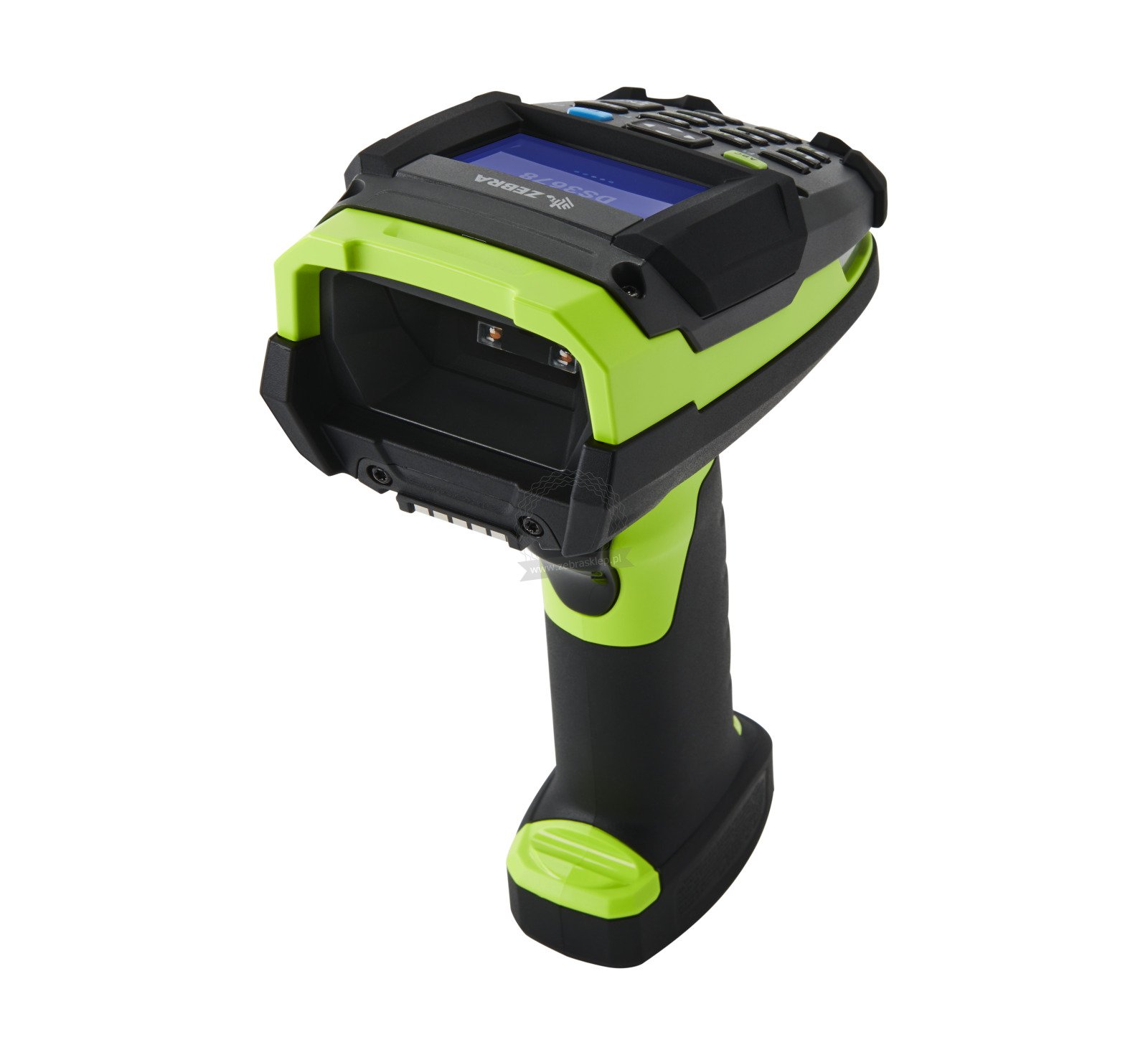

Cordless scanner Zebra DS3678-HP; KEYPAD AND DISPLAY, RUGGED, AREA IMAGER, HIGH PERFORMANCE, CORDLESS, FIPS, INDUSTRIAL GREEN, VIBRATION

Cat. no.: DS3678-HP2F003VKWW

Price: €1 092.20

SRP: €1 185.70

Save up to €93.50

ETHERNET

Not Yes

RS-232

Not Yes

Scanner type

Imager 2D, 1D Imager 2D/1D, SE5800 (Extended Range) Imager 2D/1D, HP (High Performance) Imager 2D, 1D, DPM

Decode ranges

to 152 cm 66 cm 203 cm to 32 m 660 cm do 152 cm to 203,2 cm 0,5 to 14,7 cm depending on the code

Decode range type

SR ER (XR) ER HP (KD)

IP norm

Scanner: IP65 i IP67; base station FLB: IP65 Scanner: IP65 i IP68, station: IP65 Skaner: IP65 i IP67; stacja bazowa FLB: IP65

Cable

RS232 - Serial not included USB cable RS232

Presentation cradle

Not Yes

Power supply

not included tak, bez kabla 230V yes yes, without cable 230V no

Charging-contact station

not included tak yes

Trigger

yes tak

High density

Not Yes

DPM metal laser etch

Not Yes

Battery capacity

3100mAh Lithium-ion Battery PowerPrecision+ 3100 mAh

Battery type

Lithium-ion Battery Bateria litowo-jonowa

Compare all parameters

Availability Make a phone call +48 668 949 599

Other configurations DS3678 36 models

Make a phone call +48 668 949 599

You are planning a major purchase, carrying out a project, Find out more.

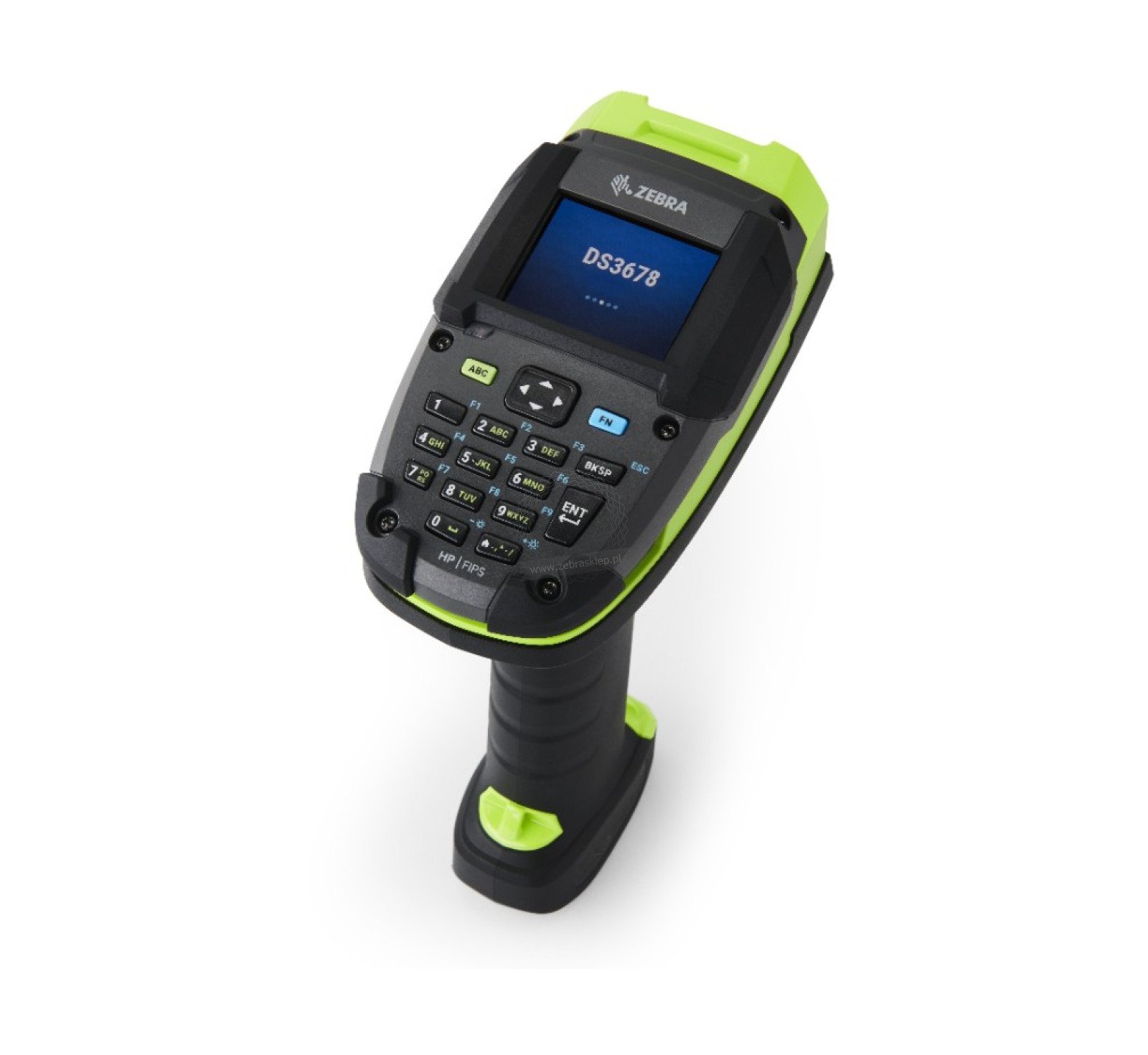

Bright color display automatically adjusts for easy viewing in any lighting condition. Ergonomic backlit keypad allows workers to key in data more easily, such as adding quantity and location.

Five pre-built applications are ready to use right out of the box, including the ability to add quantity and location data

Ultra-rugged — can survive 10 ft./3 m drops to concrete and 7,500 tumbles

Dual IP65/IP68 sealing built to handle extreme temperatures and conditions

Includes Zebra’s DataCapture DNA technology platform of highly intelligent firmware, software, utilities and apps

Features

Producer:

Zebra

catalog No.: DS3678-HP2F003VKWW

Interfaces
Interface	Bluetooth
Bluetooth	Yes
Physical specification
Color	black-green
Warranty	skaner i stacja dokująca: trzydzieści sześć (36) miesięcy, bateria: dwanaście (12) miesięcy
Dimensions	19 cm (wys.) × 7,8 cm (szer.) × 14,3 cm (gł.)
Weight	510 g (18 oz) (with Battery)
Performance specification
Operating temperature	-20°C to 50°C
Storage temperature	-40°C to 70°C
Operating humidity	5% to 95% without condensation
Scanner specification
Compatible codes	1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 z 5, koreański 3 z 5, GS1 DataBar, Base 32 (włoski Pharmacode); 2D: PDF417, Micro PDF417, kody złożone, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), pocztowe; OCR; Czcionki OCR-A/B, MICR-E13B, kod seryjny waluty amerykańskiej; Obsługa standardu IUID: Obsługa parsowania IUID — możliwość odczytywania i wyodrębniania pól IUID zgodnie z wymaganiami danego zastosowania
Scanner type	Imager 2D/1D, HP (High Performance)
Decode ranges	to 203,2 cm
Decode range type	HP (KD)
Feedback	świetlna, dźwiękowa, wibracja
Required code contrast	Minimalny współczynnik odbicia: 15%
Fall resistance	odporność na wielokrotne upadki na beton z wysokości 3 m (10') w temperaturze pokojowej; odporność na wielokrotne upadki na beton z wysokości 2,4 m (8’) w temperaturze od -20°C do 50°C; 7500 wstrząsów o amplitudzie 1,0 m (3,3')
IP norm	Scanner: IP65 i IP68, station: IP65
Cable	not included
Power supply	not included
Charging-contact station	not included
Multi-interface	yes
Battery capacity	Lithium-ion Battery PowerPrecision+ 3100 mAh
Scans per charge	60000+
Additional information	features a color display and a keyboard
