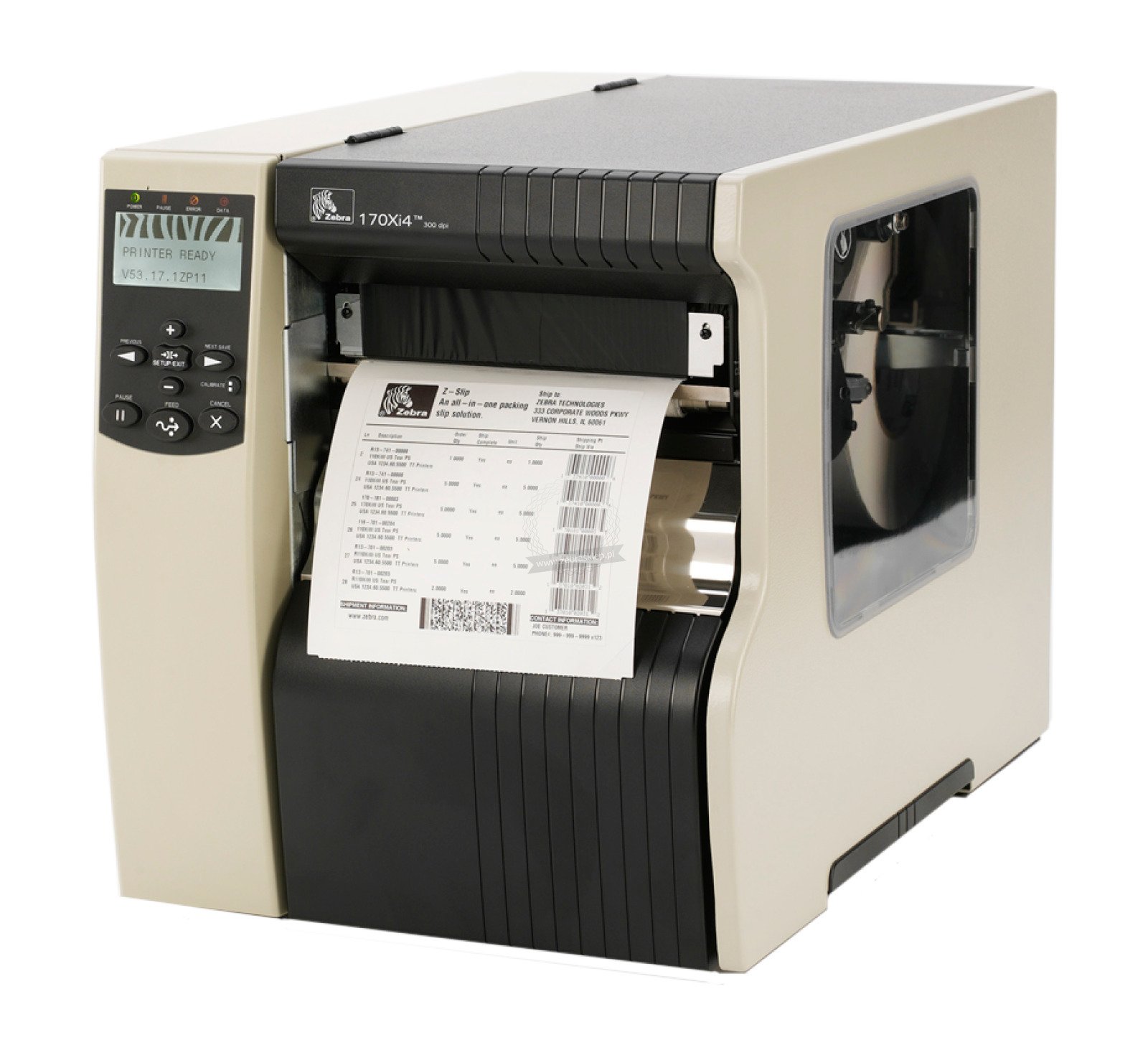

Thermal transfer printer 170Xi4 Zebra; 203 dpi, print server as standard
Cat. no.: 172-80E-00003
Price: €5 228.50
SRP: €5 845.40
Save up to €616.90
Printing resolution
Availability
Make a phone call +48 668 949 599
Other configurations 170Xi4
2
models
You are planning a major purchase, carrying out a project, Find out more.
Features
Producer:
Zebra
catalog No.: 172-80E-00003
Printer specification |
|
| Print methods | thermal/thermal transfer |
| Printing resolution | 203 dpi (8 pts/mm) |
| Print speed | 305 mm/s |
| Maximum print width | 168 mm |
| Maximum print length | 991 mm |
| Maximum label width | 51 mm |
| Maximum label width | 180 mm |
| Label roll outer diameter | 203 mm |
| Label roll inner diameter | 76 m |
| Label thickness | 0,076 mm to 0,305 mm |
| Media types | Continuous folding, die or with a black marker |
| Ribbon width | od 60 do 156 mm |
| Ribbon length | 450 m or 300 m |
| Ribbon roll inner diameter | 25,4 mm |
| Memory | 16 MB SDRAM; standard 8 MB non-volatile flash memory, optionally 64 MB |
| Programming languages | ZPL II, XML, ZPL |
| Supported codes | Linear codes: Codabar, Code 11, Code 39, Code 93, Code 128 with subcodes A/B/C and UCC Case C Codes, EAN-8, EAN-13, Industrial 2 of 5, Interleaved 2 of 5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2 of 5, UPC-A, UPC-E, UPC and EAN with 2- or 5-digit extensions; Two-dimensional codes: Codablock, Code 49, Data Matrix, GS1 DataBar (RSS), MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Software | ZebraDesigner Pro |
| Printer drivers | Zebra Universal Driver – Zebra's most advanced printer driver |
| Additional options | LCD Display |
| Ribbon roll | external |
| Tear | Yes |
| Display | Yes |
| Real-time clock | Yes |
| Additional software | full version of ZebraDesigner |
Interfaces |
|
| Interface | RS-232, USB, LPT, Ethernet |
| USB | Yes |
| ETHERNET | Yes |
| RS-232 | Yes |
| LPT | Yes |
Physical specification |
|
| Color | light gray/black |
| Warranty | 12 months printer, 6 months printhead |
| Dimensions | 338,1 x 393,7 x 517,5 mm (szer. x wys. x gł.) |
| Weight | 30,5 kg |
Performance specification |
|
| Operating temperature | 5°C - 40°C |
| Storage temperature | -40°C to 60° |
| Operating humidity | 20 to 85% without condensation |
| Storage humidity | 5 to 85% without condensation |
| Electrical characteristics | "Universal power supply with Power Factor Correction (PFC) 90–264 V (AC); 48–62 Hz |
Other configurations
Compare configurations
2
models
172-80E-00003
Thermal transfer printer 170Xi4 Zebra; 203 dpi, print server as standard
Net: €4 250.81
Gross: €5 228.50
170-80E-00203
Thermal transfer printer 170XI4 Zebra; 300 DPI, Seriesl, Parallel, USB, Ethernet INT10/100, Rewinder, Peeler
Net: €4 685.77
Gross: €5 763.50
Consumables
880026-076
5-6 days
Paper thermal transfer labels Zebra Z-Perform 1000T uncoated permanent adhesive White 102x76mm core 76mm
Price: €21.10
3004861-T
5-6 days
Paper direct thermal labels Zebra Z-Perform 1000D uncoated permanent adhesive White 51x32mm core 76mm
Price: €15.90
3004645
5-6 days
Paper thermal transfer labels Zebra Z-Perform 1000T uncoated permanent adhesive White 100x100mm core 76mm
Price: €21.10
880350-101
5-6 days
Polyester thermal transfer labels Zebra Z-Ultimate 3000T White coated permanent adhesive White 102x102mm core 76mm
Price: €123.00
02100BK17445
5-6 days
Wax Ribbons Zebra 2100 High-Performance Wax Black 174mmx450m core 25mm
Price: €24.10
04800BK17445
5-6 days
Resin Ribbon Zebra 4800 Standard Performance Resin Black 174mmx450m core 25mm
Price: €61.00
04800BK13145
5-6 days
Resin Ribbon Zebra 4800 Standard Performance Resin Black 131mmx450m core 25mm
Price: €45.90
3006417
5-6 days
Paper thermal transfer labels Zebra Z-Perform 1000T uncoated permanent adhesive White 127x64mm core 76mm
Price: €33.30
3007253-T
5-6 days
Paper direct thermal labels Zebra Z-Perform 1000D uncoated permanent adhesive White 102x76mm core 76mm
Price: €28.60
02300BK15645
2-3 days
Wax Ribbons Zebra 2300 Standard Performance Wax Black 156mmx450m core 25mm
Price: €16.70
03200BK08945
2-3 days
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 89mmx450m core 25mm
Price: €21.90
02300BK11045
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 110mmx450m core 25mm
Price: €15.10
04800BK11045
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 110mmx450m core 25mm
Price: €44.30
04800BK08045
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 80mmx450m core 25mm
Price: €32.30
02300BK11030
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 110mmx300m core 25mm
Price: €9.00
02300BK08945
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 89mmx450m core 25mm
Price: €12.20
02100BK11045
24h
Wax Ribbons Zebra 2100 High-Performance Wax Black 110mmx450m core 25mm
Price: €17.50
03200BK11045
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 110mmx450m core 25mm
Price: €31.10
02300BK08345
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 83mmx450m core 25mm
Price: €10.00
04800BK06045
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 60mmx450m core 25mm
Price: €24.60
02300BK06045
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 60mmx450m core 25mm
Price: €8.20
05095BK06045
24h
Resin Ribbon Zebra 5095 High-Performance Resin Black 60mmx450m core 25mm
Price: €33.40
02300BK04045
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 40mmx450m core 25mm
Price: €6.20
03400BK11045
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 110mmx450m core 25mm
Price: €26.90
02300BK06030
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 60mmx300m core 25mm
Price: €4.90
02100BK15645
24h
Wax Ribbons Zebra 2100 High-Performance Wax Black 156mmx450m core 25mm
Price: €25.00
02100BK08045
24h
Wax Ribbons Zebra 2100 High-Performance Wax Black 80mmx450m core 25mm
Price: €11.30
03200BK10245
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 102mmx450m core 25mm
Price: €32.60
03400BK06045
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 60mmx450m core 25mm
Price: €14.60
05095BK08945
24h
Resin Ribbon Zebra 5095 High-Performance Resin Black 89mmx450m core 25mm
Price: €43.70
03200BK06045
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 60mmx450m core 25mm
Price: €17.30
880738-025
24h
Paper direct thermal labels Zebra Z-Perform 1000D uncoated permanent adhesive White 76x25mm core 76mm
Price: €21.80
02300BK08330
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 83mmx300m core 25mm
Price: €7.70
05095BK08345
24h
Resin Ribbon Zebra 5095 High-Performance Resin Black 83mmx450m core 25mm
Price: €53.50
03400BK10245
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 102mmx450m core 25mm
Price: €21.80
02300BK10245
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 102mmx450m core 25mm
Price: €15.80
05095BK11045
24h
Resin Ribbon Zebra 5095 High-Performance Resin Black 110mmx450m core 25mm
Price: €61.30
03200BK13145
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 131mmx450m core 25mm
Price: €37.70
880134-050
24h
Paper thermal transfer labels Zebra Z-Select 2000T coated permanent adhesive White 102x51mm core 76mm
Price: €37.30
05095BK13145
24h
Resin Ribbon Zebra 5095 High-Performance Resin Black 131mmx450m core 25mm
Price: €84.40
04800BK08945
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 89mmx450m core 25mm
Price: €35.90
02100BK10245
24h
Wax Ribbons Zebra 2100 High-Performance Wax Black 102mmx450m core 25mm
Price: €14.30
04800BK15645
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 156mmx450m core 25mm
Price: €69.00
03200BK08045
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 80mmx450m core 25mm
Price: €25.60
03400BK08345
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 83mmx450m core 25mm
Price: €17.70
02300BK13145
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 131mmx450m core 25mm
Price: €18.30
880170-076
24h
Paper direct thermal labels Zebra Z-Select 2000D coated permanent adhesive White 102x76mm core 76mm
Price: €45.90
880154-025
24h
Paper direct thermal labels Zebra Z-Select 2000D coated permanent adhesive White 51x25mm core 76mm
Price: €24.60
Accessories
Software
Label creation software
