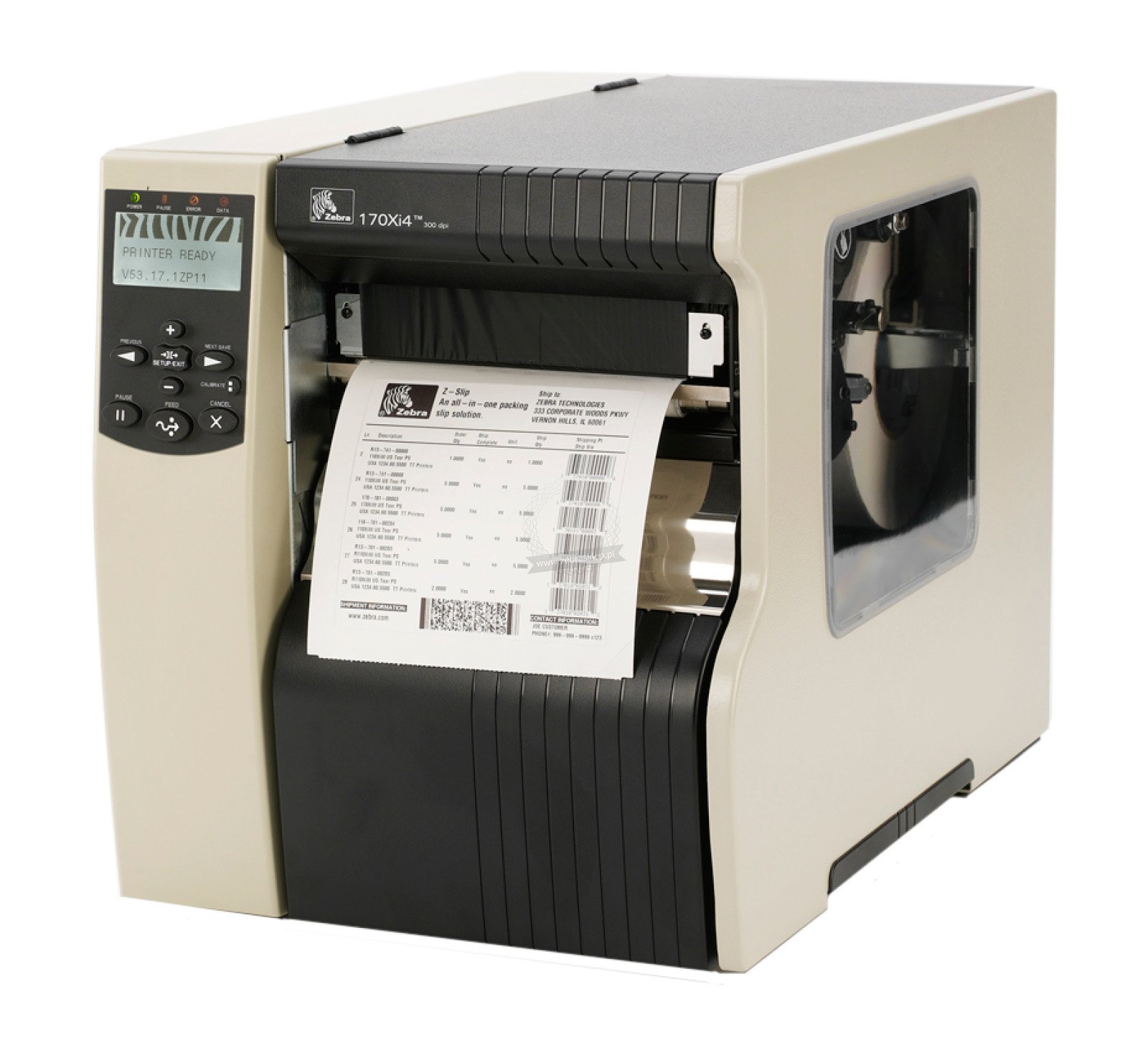

Thermal transfer printer 170XI4 Zebra; 300 DPI, Seriesl, Parallel, USB, Ethernet INT10/100, Rewinder, Peeler
Cat. no.: 170-80E-00203
Price: €5 763.50
SRP: €6 443.70
Save up to €680.20
Printing resolution
Availability
Make a phone call +48 668 949 599
Other configurations 170Xi4
2
models
You are planning a major purchase, carrying out a project, Find out more.
Features
Producer:
Zebra
catalog No.: 170-80E-00203
Printer specification |
|
| Print methods | thermal/thermal transfer |
| Printing resolution | 300 Dpi (12 pts/mm) |
| Print speed | 203 mm/s |
| Maximum print width | 168 mm |
| Maximum print length | 991 mm |
| Maximum label width | 51 mm |
| Maximum label width | 180 mm |
| Label roll outer diameter | 203 mm |
| Label roll inner diameter | 76 m |
| Label thickness | 0,076 mm to 0,305 mm |
| Media types | Continuous folding, die or with a black marker |
| Ribbon width | od 60 do 156 mm |
| Ribbon length | 450 m or 300 m |
| Ribbon roll inner diameter | 25,4 mm |
| Memory | 16 MB SDRAM; standard 8 MB non-volatile flash memory, optionally 64 MB |
| Programming languages | ZPL II, XML, ZPL |
| Supported codes | Linear codes: Codabar, Code 11, Code 39, Code 93, Code 128 with subcodes A/B/C and UCC Case C Codes, EAN-8, EAN-13, Industrial 2 of 5, Interleaved 2 of 5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2 of 5, UPC-A, UPC-E, UPC and EAN with 2- or 5-digit extensions; Two-dimensional codes: Codablock, Code 49, Data Matrix, GS1 DataBar (RSS), MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Software | ZebraDesigner Pro |
| Printer drivers | Zebra Universal Driver – Zebra's most advanced printer driver |
| Additional options | Odklejak/Pełny nawijak |
| Ribbon roll | external |
| Rewind spindle | Yes |
| Peeler | Yes |
| Display | Yes |
| Real-time clock | Yes |
| Additional software | full version of ZebraDesigner |
Interfaces |
|
| Interface | RS-232, USB, LPT, Ethernet |
| USB | Yes |
| ETHERNET | Yes |
| RS-232 | Yes |
| LPT | Yes |
Physical specification |
|
| Color | light gray/black |
| Warranty | 12 months printer, 6 months printhead |
| Dimensions | 338,1 x 393,7 x 517,5 mm (szer. x wys. x gł.) |
| Weight | 30,5 kg |
Performance specification |
|
| Operating temperature | 5°C - 40°C |
| Storage temperature | -40°C to 60° |
| Operating humidity | 20 to 85% without condensation |
| Storage humidity | 5 to 85% without condensation |
| Electrical characteristics | "Universal power supply with Power Factor Correction (PFC) 90–264 V (AC); 48–62 Hz |
