22 models

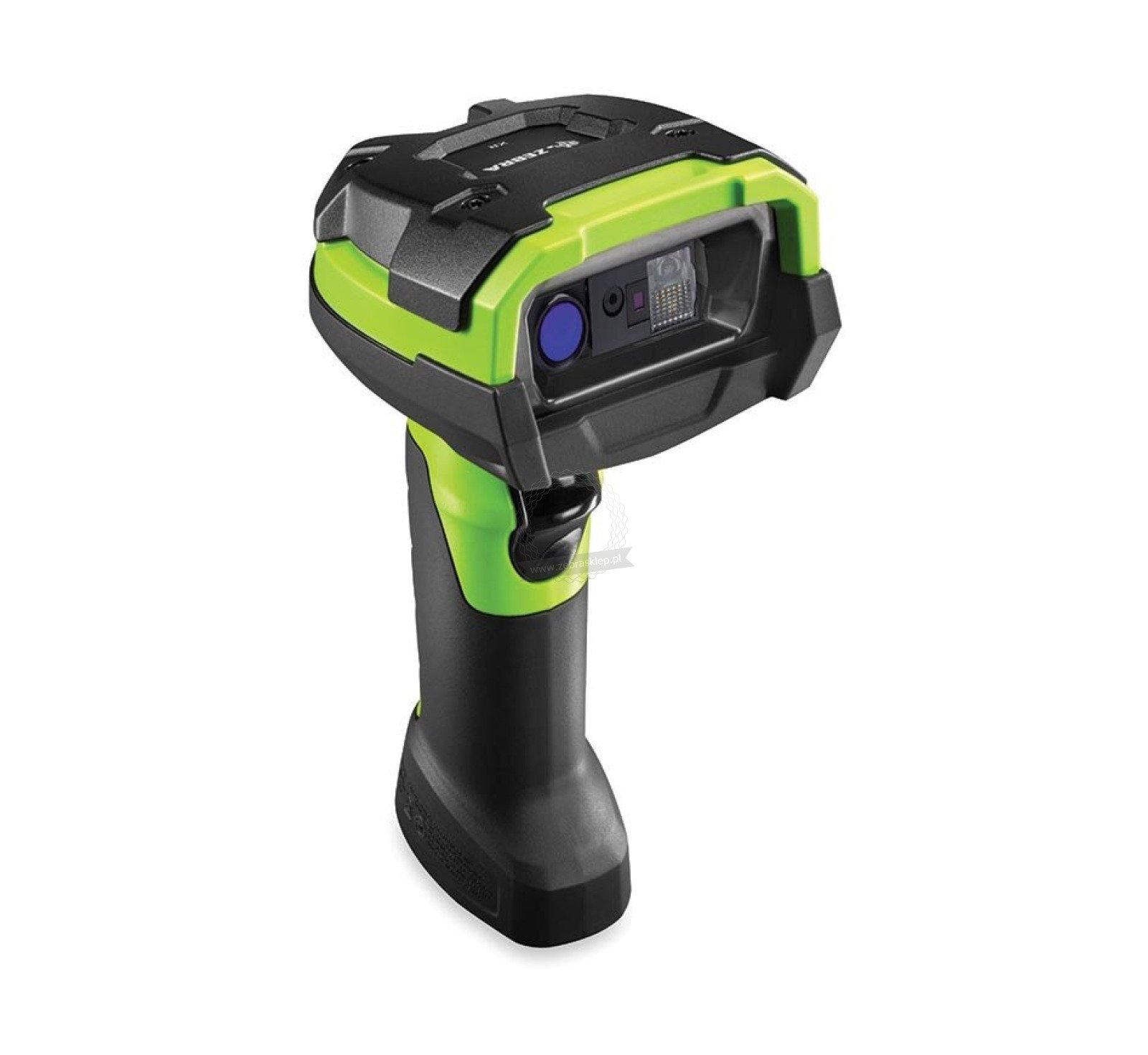

Handheld scanner Zebra DS3608-XR; CORDED ROCKWELL INDUSTRIAL ETHERNET (STRAIGHT CABLE) KIT: DS3608-XR60003VZWW , CBA-RF5-S07ZAR , EA3600-R1CP-00

Cat. no.: DS3608-XR3RF50AZVW

Price: €1 065.90

SRP: €1 191.80

Save up to €125.90

RS-232

Not Yes

Scanner type

Imager 2D, 1D 1D i 2D, imager SE5500 (Extended Range) Imager 2D, 1D, DPM

Decode ranges

to 152 cm 203 cm 66 cm to 32 m 7,6 cm - 21 m 0,5 - 14,7 cm (depending on the code)

Decode range type

SR ER

IP norm

Scanner: IP65 i IP67; base station FLB: IP65 Scanner: IP65 and IP68 in accordance with applicable IEC sealing standards; FLB base station: IP65

Cable

not included cable USB ethernet USB RS232

Presentation cradle

Not Yes

High density

Not Yes

DPM metal laser etch

Not Yes

Compare all parameters

Availability Make a phone call +48 668 949 599

Other configurations DS3608 22 models

Make a phone call +48 668 949 599

You are planning a major purchase, carrying out a project, Find out more.

Features

Producer:

Zebra

catalog No.: DS3608-XR3RF50AZVW

Interfaces
Interface	RS232
RS-232	Yes
Physical specification
Color	black-green
Warranty	38 months
Dimensions	18,5 cm × 7,6 cm × 13,2 cm (ht. × wid. × dep.)
Weight	308 g
Performance specification
Operating temperature	-30°C to 50°C
Storage temperature	-40°C to 70°C
Operating humidity	5% to 95% without condensation
Storage humidity	5% to 95% without condensation
Scanner specification
Compatible codes	1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharmacode); 2D: PDF417, MicroPDF417, composite codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), postal codes; Digimarc: Digital watermark technology; IUID: IUID parsing support – ability to read and extract IUID fields as required by application
Scanner type	1D i 2D, imager SE5500 (Extended Range)
Decode ranges	to 32 m
Decode range type	ER
Feedback	light, audio, wibracje
Required code contrast	Minimum reflectance coefficient: 25%
Fall resistance	DS36X8: withstands multiple drops to concrete from 3 m (10') at room temperature; Corded model: withstands multiple drops to concrete from 2.4 m (8') at temperatures from -30°C to 50°C; 7500 tumbles at 1.0 m (3.3')
IP norm	Scanner: IP65 and IP68 in accordance with applicable IEC sealing standards; FLB base station: IP65
Cable	RS232
Scans per charge	over 80,000 scans per charge
Battery type	PowerPrecision+ rechargeable lithium-ion battery, 3100 mAh
Additional information	Red/amber LED indicator
Proximity sensor	Image sensor: Max resolution: 1920 pixels horizontal × 1080 pixels vertical; Min resolution: 1280 pixels horizontal × 800 pixels vertical
