6 models

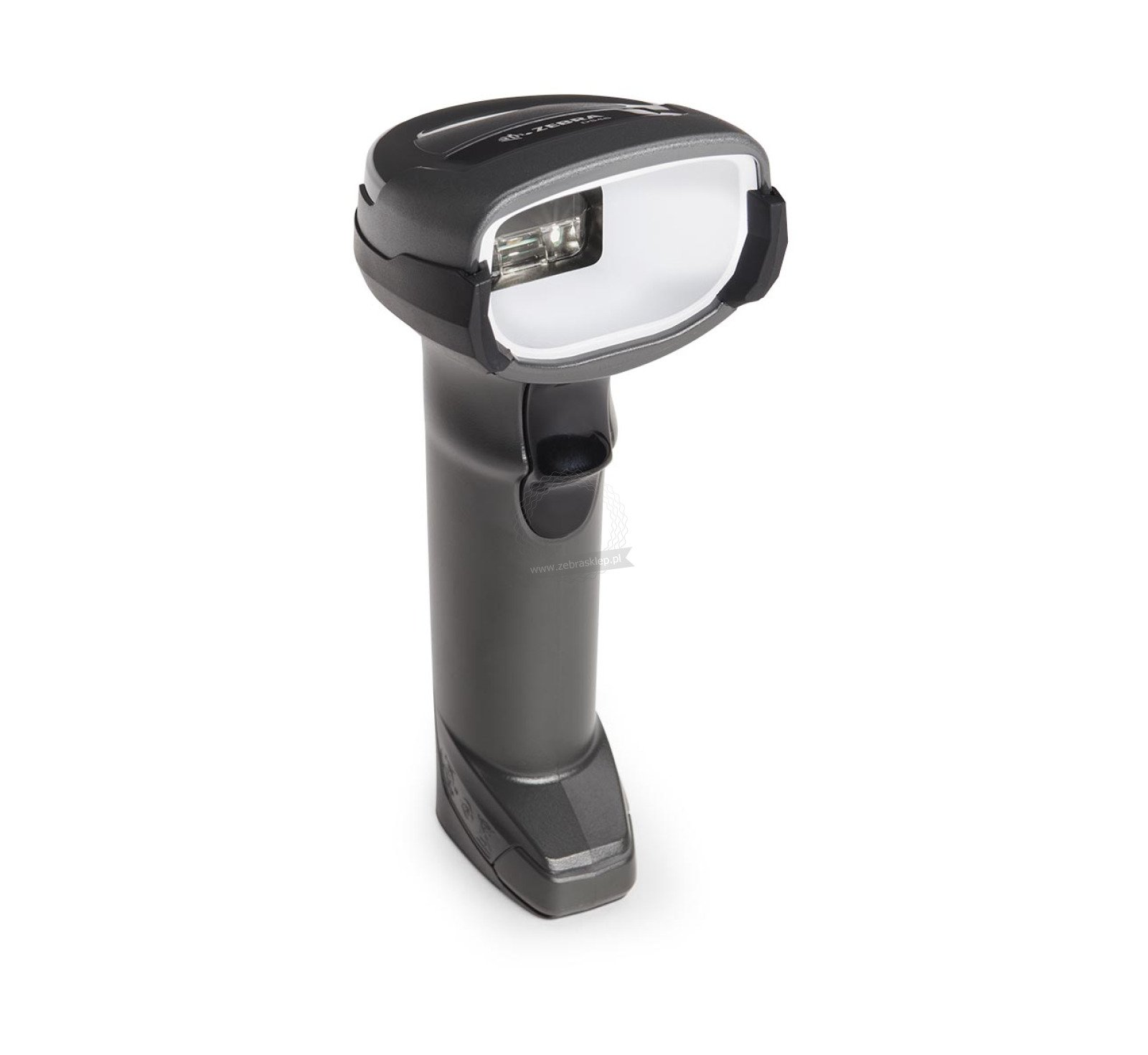

Cordless scanner Zebra DS4678; AREA IMAGER, ELECTRONICS DPM, CORDLESS, WHITE ILLUMINATION, TWILIGHT BLACK, VIBRATION - NA, LA, EMEA ONLY

Cat. no.: DS4678-DPE0007VZRW

Price: €396.40

SRP: €546.10

Save up to €149.70

Scanner type

1D i 2D, imager (Standard Range - Standard scanning range) 1D i 2D, imager DPM (Direct Part Marking - reading of codes laser-etched, engraved, or embossed directly on the product)

Decode ranges

to 111,8 cm to 21,8 cm

Decode range type

SR DPE

Cable

not included USB

Charging-contact station

not included yes

DPM metal laser etch

Not Yes

Compare all parameters

Availability 5-6 days in stock

Other configurations DS4678 6 models

You are planning a major purchase, carrying out a project, Find out more.

With the widest decode range in its class, the DS4678-DPE easily captures tough to scan direct part marks and high density barcodes

The DS4678-DPE supports more than 5,000 scans in a single charge – more than 13 hours of continuous scanning

Ideal for noisy production lines, the DS4678-DPE delivers both haptic and visual feedback that confirms a scan has been completed

A built-in diffuser provides optimal illumination on a wide variety of surfaces, including shiny and reflective surfaces

Complimentary industry preferred software tools for easy deployment and management across your entire enterprise

Features

Producer:

Zebra

catalog No.: DS4678-DPE0007VZRW

Interfaces
Interface	Bluetooth, USB, RS232, KBW
Bluetooth	Yes
Physical specification
Color	black
Warranty	na wady produkcyjne i materiałowe na okres trzech lat od daty wysyłki
Dimensions	16,8 cm (wys) × 6,6 cm (szer.) × 10,7 cm (gł.)
Weight	225 g
Performance specification
Operating temperature	0,0°C to +50,0°C
Storage temperature	-40,0°C to +70,0°C
Operating humidity	Relative humidity 5-95%, without condensation
Scanner specification
Compatible codes	1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 z 5, koreański 3 z 5, GS1 DataBar, Base 32 (włoski Pharmacode); 2D: PDF417, Micro PDF417, kody złożone, TLC-39, Aztec, DataMatrix, DotCode, DataMatrix, MaxiCode, kod QR, Micro QR, Han Xin, kody pocztowe, SecurPharm
Scanner type	1D i 2D, imager DPM (Direct Part Marking - reading of codes laser-etched, engraved, or embossed directly on the product)
Decode ranges	to 21,8 cm
Decode range type	DPE
Feedback	świetlna, dźwiękowa
Required code contrast	Minimalny współczynnik odbicia: 15%
Fall resistance	Designed to withstand multiple drops to concrete from a height of 1.8 meters; Built to endure 2000 tumbles at 0.5 meter amplitude
IP norm	IP52
Cable	not included
Power supply	not included
Charging-contact station	not included
Multi-interface	yes
DPM metal laser etch	Yes
Battery capacity	2500 mAh
Scans per charge	Number of scanning operations after a full battery charge: 50,000 per second
Battery type	Lithium-ion Battery with status reporting
Additional information	white backlight
