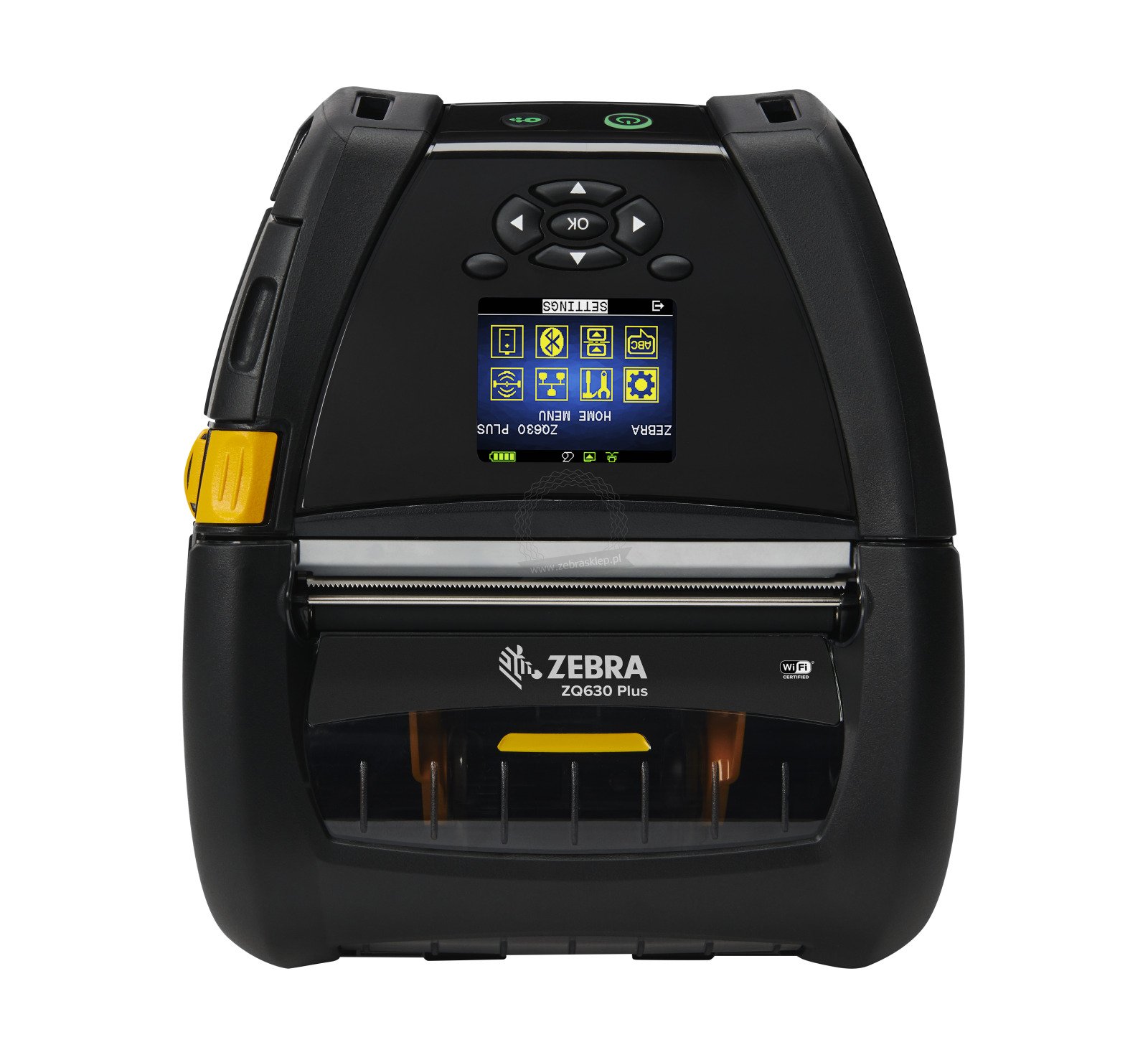

Direct thermal printer Zebra ZQ630 Plus; English fonts,BT 4.x, Linered platen, 0.75" core, Group E, Shoulder strap, Belt clip
Cat. no.: ZQ63-AUFAE14-00
Price: €1 082.50
SRP: €1 435.20
Save up to €352.70
Media types
Die-cut labels and cards, linerless labels, receipt paper, RFID (compatible with ZQ630/ZQ630 Plus RFID printer), black mark sensor, gap sensor
Die-cut labels and tags, linerless labels, receipt paper, RFID (compatible with ZQ630/ZQ630 Plus RFID printer), black mark sensor, gap sensor
Die-cut labels and tags, receipt paper, RFID (compatible with ZQ630 Plus RFID printer), black mark sensor Note: ZQ630 Plus RFID requires media with black mark and does not support gap detection
Availability
2-3 days in stock
Other configurations ZQ630 Plus
7
models
You are planning a major purchase, carrying out a project, Find out more.
The industry’s first Wi-Fi 6 mobile printer with 802.11ax/Bluetooth 5.3 dual radio option and 802.11r fast roaming for faster, more dependable and more secure connections. Wi-Fi 5 (802.11ac)/Bluetooth 4.2 dual radio model also available.
The smart PowerPrecision+ battery is one of the highest capacity batteries in its class, powering every minute of the longest shifts. Battery metrics help better manage your batteries. And our Power Smart Print Technology™ reduces power consumption.
Sleep mode with instant wake-up over Wi-Fi and Bluetooth reduces power consumption when idle. The moment a user sends a print job, the ZQ620 Plus wakes up and begins printing.
Available accessories include multi-slot battery chargers, carrying options for added protection and single and quad-bay Ethernet cradles for easy remote management. The ZQ600 Plus Series is compatible with QLn accessories for a cost-effective upgrade.
Powered by Link-OS, Zebra's robust printer operating system, and Print DNA, a combination of productivity, management, development and visibility tools that results in a superior printing experience.
The smart PowerPrecision+ battery is one of the highest capacity batteries in its class, powering every minute of the longest shifts. Battery metrics help better manage your batteries. And our Power Smart Print Technology™ reduces power consumption.
Sleep mode with instant wake-up over Wi-Fi and Bluetooth reduces power consumption when idle. The moment a user sends a print job, the ZQ620 Plus wakes up and begins printing.
Available accessories include multi-slot battery chargers, carrying options for added protection and single and quad-bay Ethernet cradles for easy remote management. The ZQ600 Plus Series is compatible with QLn accessories for a cost-effective upgrade.
Powered by Link-OS, Zebra's robust printer operating system, and Print DNA, a combination of productivity, management, development and visibility tools that results in a superior printing experience.
Features
Producer:
Zebra
catalog No.: ZQ63-AUFAE14-00
Printer specification |
|
| Print methods | direct thermal |
| Printing resolution | 203 dpi |
| Print speed | 115 m/s |
| Maximum print width | 104 mm |
| Maximum print length | 813 mm |
| Maximum label width | 51 mm |
| Maximum label width | 112 mm |
| Minimum label length | 12,7 mm |
| Maximum label length | 813 mm |
| Label roll outer diameter | 66 mm |
| Label roll inner diameter | 19 mm |
| Label thickness | cartons from 0.058 mm to 0.14 mm or labels 0.1651 mm |
| Media types | Die-cut labels and cards, linerless labels, receipt paper, RFID (compatible with ZQ630/ZQ630 Plus RFID printer), black mark sensor, gap sensor |
| Memory | RAM 256 MB; Flash 512 MB (Standard) |
| Programming languages | EPL, ZPL, CPCL |
| Supported codes | Bar width ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1 Linear barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW7), Interleaved 2 of 5, UPC-A and UPC-E, 2- and 5-digit extensions, EAN-8, EAN-13, 2- and 5-digit extensions 2D barcodes: PDF417, MicroPDF417, MaxiCode, QR codes, GS1/DataBar™ (RSS) family, Aztec, MSI/Plessey, FIM Postnet, Data Matrix, TLC39 |
| Software | ZBI 2.x™ – an advanced programming language that allows printers to run independent applications, connect with peripheral devices, and much more |
| Display | Yes |
| Movable Label Sensor | Yes |
| Battery | removable PowerPrecision+ rechargeable lithium-ion battery 6800 mAh (nominal) 49.4 Wh |
| Resistance | Resistance to multiple drops onto concrete from a height of 1.83 m. IP54 sealing rating providing protection against water and dust. Resistance: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4 and EN61000-4-5. A display made of tempered glass and a seamless unibody design. The high-grade resin used in their construction is one of the hardest available materials, providing greater impact resistance |
Interfaces |
|
| Interface | Bluetooth, USB, RS232 |
| Bluetooth | Yes |
| USB | Yes |
| RS-232 | Yes |
| NFC | Yes |
Physical specification |
|
| Color | black |
| Warranty | 12 months |
| Dimensions | 187 mm x 165 mm x 82,5 mm |
| Weight | 1,1 kg with Battery |
Performance specification |
|
| Operating temperature | -20° up to 50°C |
| Storage temperature | -25°C up to 65°C |
| Operating humidity | 10% up to 90%, without condensation |
| Storage humidity | 10% up to 90%, without condensation |
