7 models

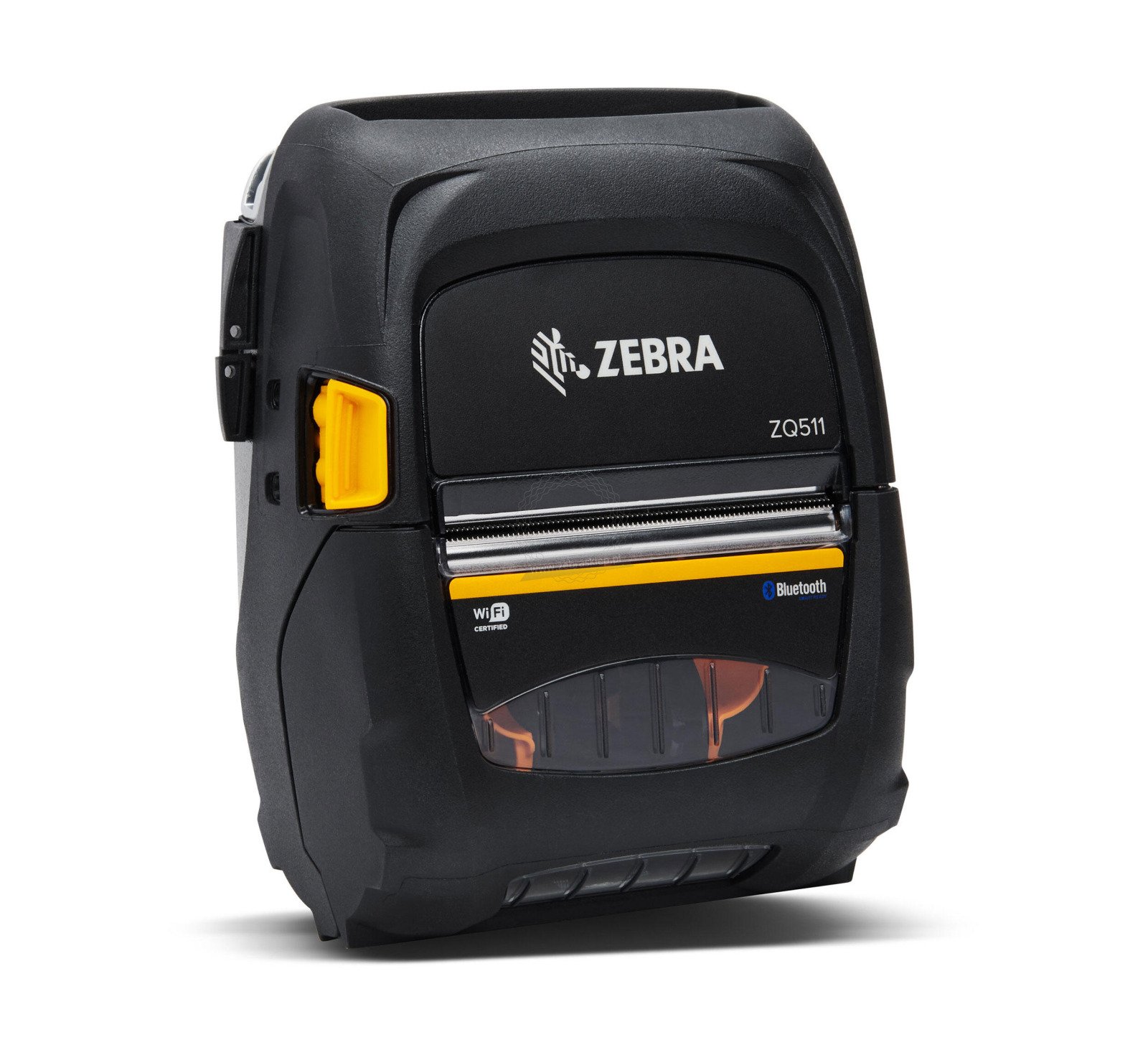

Direct thermal printer ZQ511 Zebra; media width 3.15"/80mm, English/Latin fonts, Dual 802.11ac/Bluetooth 4.1, no battery, EMEA certs

Cat. no.: ZQ51-BUW001E-00

Price: €700.40

SRP: €932.00

Save up to €231.60

Media types

Receipt, label with gap/black mark, hang tag, linerless Receipt, label with gap/black mark, hang tag, linerless, RFID (note: ZQ511R/ZQ521R printers require RFID media with black mark and do not support gap detection) Note: ZQ511R/ZQ521R printers require RFID media with black mark and do not support gap detection

Rfid

Not Yes

WIFI

Not Yes

Compare all parameters

Availability Make a phone call +48 668 949 599

Other configurations ZQ511 7 models

Make a phone call +48 668 949 599

You are planning a major purchase, carrying out a project, Find out more.

Designed and certified to meet MIL-STD 810G for drop and shock and tumble tested per the IEC68-2-32 spec while providing an IP54 rating for protection against solid and liquid ingress.

Your workforce will stay connected inside and outside the four walls with the latest connectivity options, such as WLAN 802.11ac and Bluetooth 4.1 Low Energy.

Whether you are managing a fleet of printers or just a few, Print DNA's Mobile Device Management provides you status and visibility to printers that are in the field or in the next room.

Optimizd printing power with high capcity PowerPrecision battery and 'sleep mode' to preserve power when not in use provides peace of mind.

Simplified design and friendly user interface make the ZQ511 easy to use for anyone, even for those wearing gloves.

Features

Producer:

Zebra

catalog No.: ZQ51-BUW001E-00

Printer specification
Print methods	thermal
Printing resolution	203 Dpi
Print speed	to 127 mm/s ([Draft])
Maximum print width	72 mm
Maximum print length	99 cm
Maximum label width	35 mm
Maximum label width	80 mm + 1 mm
Maximum label length	99 cm
Label roll outer diameter	52 mm
Label roll inner diameter	19 mm
Label thickness	min: 0.05842 mm for all media (ZQ511 SKU without liner is 0.05334 mm); max: 0.1600 mm for labels and 0.1397 mm for tags/receipts
Media types	Receipt, label with gap/black mark, hang tag, linerless
Memory	256 MB pamięci RAM, pamięć Flash 512 MB (standard); 8 MB RAM, 64 MB Flash (dostępne dla użytkownika)
Programming languages	CPCL and ZPL®
Supported codes	Kody kreskowe CPCL: Stosunek kresek: 1,5:1; 2:1; 2,5:1; 3:1; 3,5:1; Kody liniowe: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), przeplatany 2 z 5, UPC-A i UPC-E, rozszerzenie 2- i 5-cyfrowe, EAN-8, EAN-13, rozszerzenie 2- i 5-cyfrowe; Kody dwuwymiarowe (2D): PDF417, MicroPDF417, MaxiCode, kody QR, rodzina GS1/DataBar™ (RSS), Aztec, MSI/Plessey, FIM Postnet, Data Matrix, TLC39. Kody kreskowe ZPL: Stosunek kresek: 2:1, 3:1, 5:2, 7:3; Kody liniowe: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC-A i UPC-E z rozszerzeniami 2- lub 5-cyfrowymi EAN, Planet Code, Plessey, POSTNET, standardowy 2 z 5, przemysłowy 2 z 5, przeplatany 2 z 5, LOGMARS, MSI, Codabar oraz GS1 DataBar (RSS); Kody dwuwymiarowe (2D): PDF417, MicroPDF-417, Code 49, TLC39, Maxicode, Codablock, Data Matrix, QR code, Aztec.
Real-time clock	Yes
Battery	Removable PowerPrecision+ lithium-ion battery for multiple recharges 3250 mAh (nominal) and optionally available higher capacity 6500 mAh battery
Resistance	Drop and shock resistance in compliance with MIL-STD 810G. Resistance to multiple drops onto concrete from a height of 2 m (6.6 ft). Shock resistance tests conducted according to the IEC68-2-32 standard specification confirmed resistance to 1300 free falls from a height of 1 m/3.3 ft
Interfaces
Bluetooth	Yes
USB	Yes
WIFI	Yes
NFC	Yes
Physical specification
Color	szary
Warranty	drukarka: 24 miesiące na wady produkcyjne i materiałowe; bateria: 12 miesięcy; głowica: 6 miesięcy
Dimensions	150 mm (dł.) × 120 mm (szer.) × 62 mm (wys.)
Weight	with battery: 0,63 kg
Performance specification
Operating temperature	-20°C to 55°C
Storage temperature	-30°C to 66°C
Operating humidity	10% to 90%, without condensation
Storage humidity	10% to 90%, without condensation
