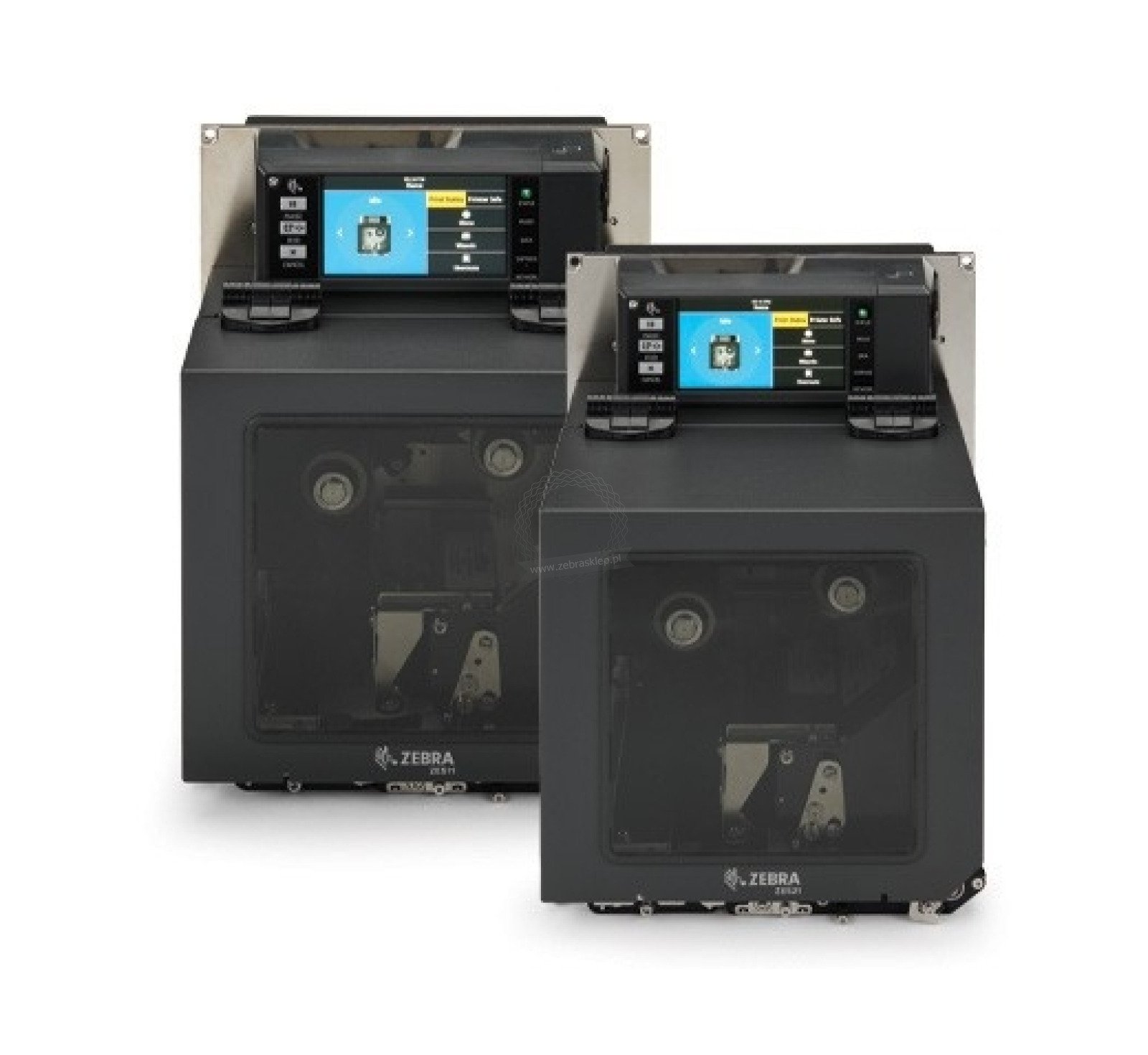

Printing module thermal transfer ZE521 Zebra; 6", 300 dpi, RH, Euro and UK cord, USB, Serial, Ethernet, Bluetooth 4.1, Dual USB Host, Color Touch, ZPL
Cat. no.: ZE52163-R0E0000Z
Price: €5 412.90
SRP: €6 997.20
Save up to €1 584.30
Availability
5-6 days in stock
Other configurations ZE521
8
models
You are planning a major purchase, carrying out a project, Find out more.
With all-metal construction, the ZE521-6 offers best-in-class print speeds for premium performance. They’re engineered without the need for cooling fans, and their external cabinets are resistant to debris and water ingress.
With Zebra’s innovative Print DNA software suite, the ZE521 makes work easier
Access components easily with the newly designed interior workspace with more room. Replace printheads in seconds without tools with the quick-release tab and socketed design that eliminates connectors.
Part of Zebra’s broad RFID portfolio, the 6-inch ZE521 offers field-installable premium RFID printing and encoding. Incorporating Zebra’s exclusive RE40 module and adaptive encoding technology
Shield yourself from dangerous, costly IoT printer attacks with Zebra’s exclusive PrintSecure, part of Print DNA, to protect your data, secure your endpoints and prevent downtime.
With Zebra’s innovative Print DNA software suite, the ZE521 makes work easier
Access components easily with the newly designed interior workspace with more room. Replace printheads in seconds without tools with the quick-release tab and socketed design that eliminates connectors.
Part of Zebra’s broad RFID portfolio, the 6-inch ZE521 offers field-installable premium RFID printing and encoding. Incorporating Zebra’s exclusive RE40 module and adaptive encoding technology
Shield yourself from dangerous, costly IoT printer attacks with Zebra’s exclusive PrintSecure, part of Print DNA, to protect your data, secure your endpoints and prevent downtime.
Features
Producer:
Zebra
catalog No.: ZE52163-R0E0000Z
Printer specification |
|
| Print methods | thermal transfer/thermal |
| Printing resolution | 300 Dpi |
| Print speed | 305 mm/s |
| Maximum print width | 168 mm |
| Maximum print length | 2540 mm |
| Maximum label width | 76 mm |
| Maximum label width | 180 mm |
| Minimum label length | Applicator mode, reverse feeding enabled: 76.2 mm; Applicator mode, reverse feeding disabled: 25.4 mm; Winding mode: 25.4 mm 'loose loop'; Tearing mode, reverse feeding enabled: 76.2 mm; Tearing mode, reverse feeding disabled: 25.4 mm |
| Maximum label length | 2540 mm |
| Label roll inner diameter | 76 mm |
| Label thickness | 0,076 mm to 0,305 mm |
| Media types | Continuous, die-cut or with a black marker |
| Ribbon width | 76 mm to 180 mm |
| Ribbon length | 600 m |
| Ribbon roll inner diameter | 25,4 mm |
| Memory | SDRAM 512 MB, Flash 512 MB |
| Programming languages | ZPL i ZPL II |
| Supported codes | Barcode ratios: 2:1, 7:3, 5:2, and 3:1; Linear barcodes: Code 11, Code 39, Code 93, Code 128 with A/B/C subsets and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2- or 5-digit extensions, Plessey, Postnet, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, Logmars, MSI, Codabar, Planet Code; 2D barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (including composites), Aztec |
| Display | Yes |
| Movable Label Sensor | Yes |
| Real-time clock | Yes |
| Resistance | The outer casing is resistant to the ingress of contaminants and water, making it ideal for dusty environments or those where it may come into contact with splashing water. |
Interfaces |
|
| Bluetooth | Yes |
| USB | Yes |
| ETHERNET | Yes |
| RS-232 | Yes |
| USB Host | Yes |
| NFC | Yes |
Physical specification |
|
| Color | black |
| Warranty | 12 months printer, 6 months printhead |
| Dimensions | 438 x 245 x 300 mm (dep. x wid. x ht.) |
| Weight | 17,3 kg |
Performance specification |
|
| Operating temperature | 0°C to 40°C |
| Storage temperature | -40°C to 71°C |
| Operating humidity | 20% to 95%, without condensation |
| Storage humidity | 5% to 95%, without condensation |
| Electrical characteristics | "Universal power supply with power factor correction 90–264 V AC, 47–63 Hz |
