11 models

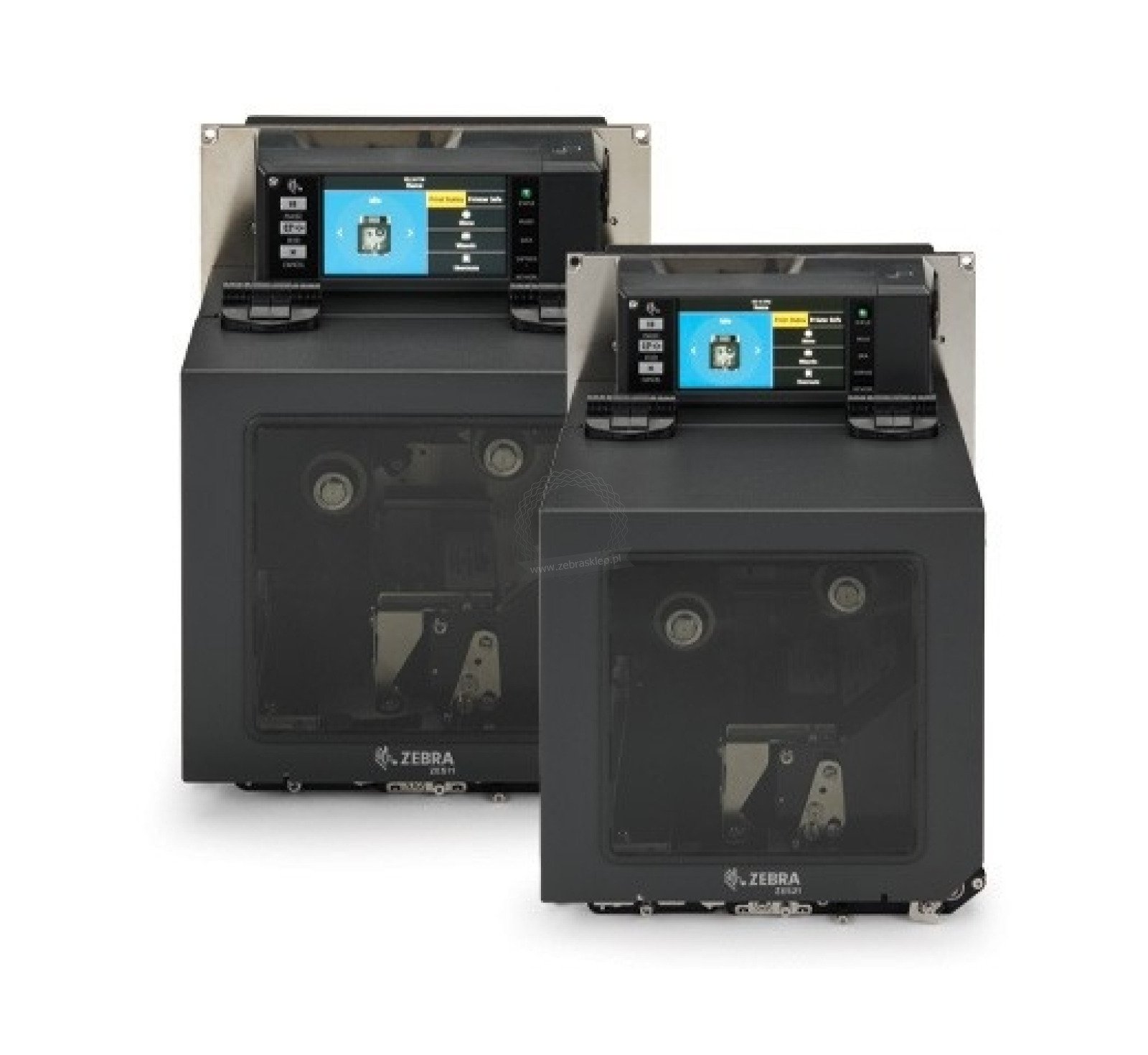

Printing module thermal transfer ZE511 Zebra; 4", 203 dpi, RH, Optimized Rotated Barcode Printhead, Euro and UK cord, USB, Serial, Ethernet, Bluetooth 4.1, Dual USB Host, Color Touch, ZPL

Cat. no.: ZE51142-R0E0100Z

Price: €5 081.70

SRP: €6 102.20

Save up to €1 020.50

Printing resolution

203 Dpi 300 Dpi 600 dpi

Print speed

457 mm per second 356 mm/s 152 mm/s

Rfid

Not Yes

Compare all parameters

Availability Make a phone call +48 668 949 599

Other configurations ZE511 11 models

Make a phone call +48 668 949 599

You are planning a major purchase, carrying out a project, Find out more.

With all-metal construction, the ZE511-4 offers best-in-class print speeds and 600 dpi print quality for premium performance. They’re engineered without the need for cooling fans, and their external cabinets are resistant to debris and water ingress.

With Zebra’s innovative Print DNA software suite, the ZE511 makes work easier

Access components easily with the newly designed interior workspace with more room. Replace printheads in seconds without tools with the quick-release tab and socketed design that eliminates connectors.

Part of Zebra’s broad RFID portfolio, the 4-inch ZE511 offers field-installable premium RFID printing and encoding. Incorporating Zebra’s exclusive RE40 module and adaptive encoding technology

Shield yourself from dangerous, costly IoT printer attacks with Zebra’s exclusive PrintSecure, part of Print DNA, to protect your data, secure your endpoints and prevent downtime.

Features

Producer:

Zebra

catalog No.: ZE51142-R0E0100Z

Printer specification
Print methods	thermal transfer/thermal
Printing resolution	203 Dpi
Print speed	457 mm per second
Maximum print width	104 mm
Maximum print length	3801 mm
Maximum label width	16 mm
Maximum label width	114 mm
Minimum label length	"Applicator mode, reverse feeding enabled: 12.7 mm; Applicator mode, reverse feeding disabled: 6.4 mm; Stream mode: 6.4 mm; Winding mode: 6.4 mm 'loose loop'; Tearing mode, reverse feeding enabled: 12.7 mm; Tearing mode, reverse feeding disabled: 6.4 mm
Maximum label length	3801 mm
Label roll inner diameter	76 mm
Label thickness	0,135 mm to 0,254 mm
Media types	Continuous, die-cut or with a black marker
Ribbon width	25,4 mm to 107 mm
Ribbon length	Standard: 600 m
Ribbon roll inner diameter	25,4 mm
Memory	SDRAM 512 MB, Flash 512 MB
Programming languages	ZPL i ZPL II
Supported codes	Proporcje kodów kreskowych: 2:1, 7:3, 5:2 i 3:1; Liniowe kody kreskowe: Code 11, Code 39, Code 93, Code 128 z podkodami A/B/C i UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC i EAN z rozszerzeniami 2- lub 5-cyfrowymi, Plessey, Postnet, standardowy 2 z 5, przemysłowy 2 z 5, przeplatany 2 z 5, Logmars, MSI, Codabar, Planet Code; Kody kreskowe 2D: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (i złożone), Aztec.
Display	Yes
Movable Label Sensor	Yes
Real-time clock	Yes
Resistance	The outer casing is resistant to the ingress of contaminants and water, making it ideal for dusty environments or those where it may come into contact with splashing water.
Interfaces
Bluetooth	Yes
USB	Yes
ETHERNET	Yes
RS-232	Yes
USB Host	Yes
NFC	Yes
Physical specification
Color	black
Warranty	12 months printer, 6 months printhead
Dimensions	379 x 245 x 300 mm (gł. x szer. x wys.)
Weight	15,4 kg
Performance specification
Operating temperature	0°C to 40°C
Storage temperature	-40°C to 71°C
Operating humidity	20% to 95%, without condensation
Storage humidity	5% to 95%, without condensation
Electrical characteristics	"Universal power supply with power factor correction 90–264 V AC, 47–63 Hz
