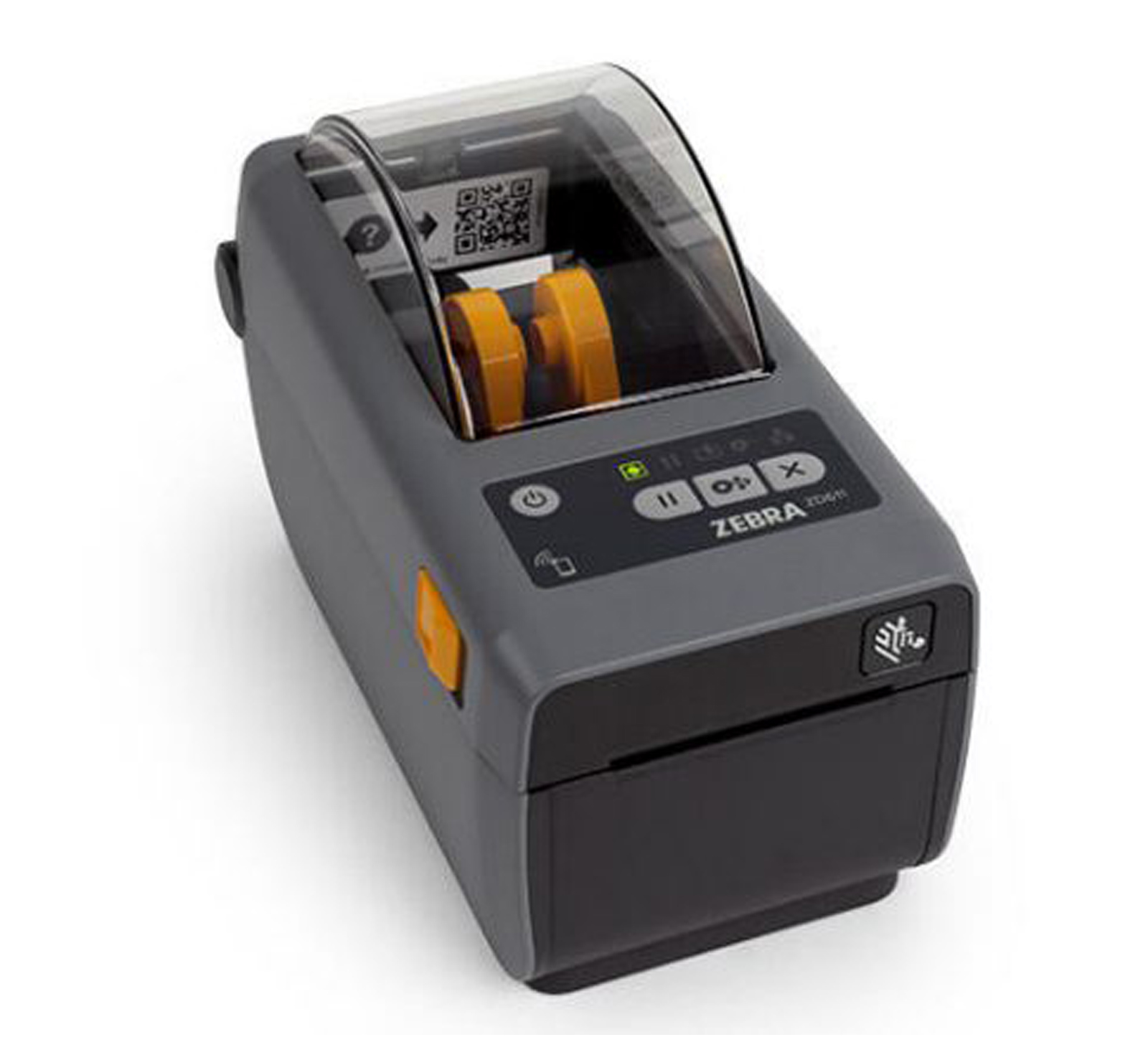

Thermal transfer printer Zebra ZD611 TT PRNT (74M) COLOR TOUCH/LCD 300 DPI USB/ HOST BTLE5 CUT.

Cat. no.: ZD6A123-T2EE00EZ

Price: €895.00

SRP: €1 348.70

Save up to €453.70

Print methods

thermal thermal/thermal transfer

Printing resolution

203 Dpi 300 Dpi

Print speed

203 mm/s 152 mm/s

Cutter

Not Yes

Peeler

Not Yes

Display

Not Yes

WIFI

Not Yes

Compare all parameters

Availability Make a phone call +48 668 949 599

Other configurations ZD611 38 models

Make a phone call +48 668 949 599

You are planning a major purchase, carrying out a project, Find out more.

Replacement for the legacy TLP2824 Plus, offering more functions and capabilities powered by a new innovative architecture that can run more tasks, perform more operations simultaneously and is ready for what's next.

Standard on the ZD611t model, the 4.3 full color LCD touch display makes it easy to use with step-by-step setup wizards, troubleshooting animations, media-loading and calibration guidance. The display changes color to show printer status at a glance.

Connectivity includes Ethernet, USB and USB Host standard. Optional connectivity includes Serial, and dual wireless radio with 802.11ac Wi-Fi and Bluetooth 4.1 - available as factory- or field-installable.

Zebra's exclusive Print DNA software suite makes it easy to get printers up and running quickly. And PrintSecure makes it easy to shield printers from cyberattacks.

Increase printer flexibility and use cases with options and accessories, including 300 dpi, desktop battery, peeler, cutter, keyboard display unit, and mounting plate.

Features

Producer:

Zebra

catalog No.: ZD6A123-T2EE00EZ

Printer specification
Print methods	thermal/thermal transfer
Printing resolution	300 Dpi
Print speed	152 mm/s
Maximum print width	54 mm
Maximum print length	991 mm
Maximum label width	15 mm
Maximum label width	57 mm
Minimum label length	6,35 mm
Maximum label length	991 mm
Label roll outer diameter	127 mm
Label roll inner diameter	25 mm
Label thickness	0,06 - 0,195 mm
Media types	On roll or fanfold, die-cut or continuous feed with or without black mark, tags, continuous receipt paper, wristbands
Ribbon width	33 - 58 mm
Ribbon length	74 m
Ribbon roll inner diameter	12,7 mm
Memory	512 MB Flash, 256 MB DDR3 SDRAM
Programming languages	ZPL i EPL
Supported codes	Kody kreskowe 1D Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC i EAN z rozszerzeniami 2- lub 5-cyfrowymi, Plessey, Postnet, standardowy 2 z 5, przemysłowy 2 z 5, przeplatany 2 z 5, Logmars, MSI, Codabar i Planet Code Kody dwuwymiarowe (2D) Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software	ZebraDesigner Essentials
Printer drivers	ZPL II, EPL 2, XML, ZBI, PDF Direct
Additional options	Dispenser/peeler: peeling and feeding labels using a label presence sensor (factory installed or customer installed) Cutter (factory installed or customer installed)
Cutter	Yes
Display	Yes
Movable Label Sensor	Yes
Real-time clock	Yes
Battery	sold separately
Interfaces
USB	Yes
ETHERNET	Yes
Physical specification
Color	dark gray
Warranty	24 months printer, 12 months printhead
Dimensions	242,9 mm (dł.) × 138,7 mm (szer.) × 169,2 mm (wys.)
Weight	1,629 kg
Performance specification
Operating temperature	4,4°C to 41°C
Storage temperature	-40°C to 60°C
Operating humidity	10% to 90% without condensation
Storage humidity	5% to 95% without condensation
Electrical characteristics	Autosensing power supply (PFC compliant) 100–240 V AC, 50–60 Hz, ENERGY STAR certified, VI energy efficiency level certified, optional 2750 mAh battery, medical facility models include IEC60601-1 certified power supply
