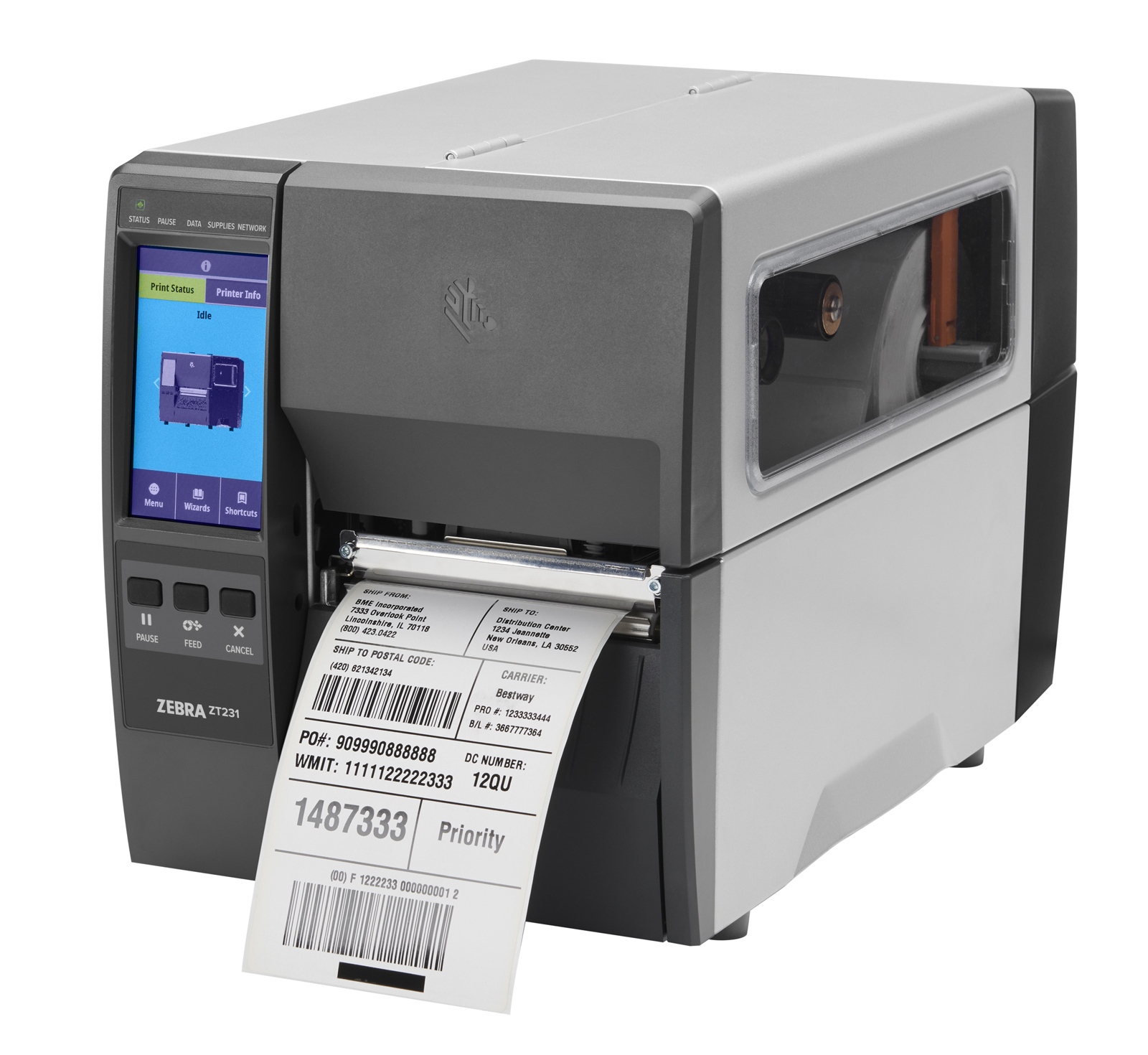

Thermal transfer printer ZT231; 4", 203 dpi, TT, EU/UK Cords, USB, Serial, Ethernet, BTLE, USB Host, EZPL
Cat. no.: ZT23142-T0E000FZ
Price: €666.30
SRP: €961.30
Save up to €295.00
Print methods
Print speed
Media types
Availability
24h in stock
Other configurations ZT231
19
models
You are planning a major purchase, carrying out a project, Find out more.
With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi.
Reduce training time with the ZT231’s easy-to-use 4.3 full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger.
Take advantage of Zebra’s robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard.
Expand your printer’s capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID encoding.
Take advantage of a variety of standard connectivity options including USB, Serial, Ethernet, BTLE and USB Host.
Reduce training time with the ZT231’s easy-to-use 4.3 full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger.
Take advantage of Zebra’s robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard.
Expand your printer’s capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID encoding.
Take advantage of a variety of standard connectivity options including USB, Serial, Ethernet, BTLE and USB Host.
Features
Producer:
Zebra
catalog No.: ZT23142-T0E000FZ
Printer specification |
|
| Print methods | thermal transfer/thermal |
| Printing resolution | 203 Dpi |
| Print speed | 305 mm/s |
| Maximum print width | 104 mm |
| Maximum print length | 3988 mm |
| Maximum label width | 19 mm |
| Maximum label width | 114 mm |
| Label roll outer diameter | 203 mm |
| Label roll inner diameter | 76 mm |
| Label thickness | 0,076 mm to 0,25 mm |
| Media types | Continuous, die-cut, with a cut, with a black marker |
| Ribbon width | 51 mm to 110 mm |
| Ribbon length | to 450m |
| Ribbon roll inner diameter | 25 mm |
| Memory | 256 MB SDRAM |
| Programming languages | ZBI 2.0, ZPL, ZPLII, EPL, EPL2 |
| Supported codes | Linear barcodes: Code 11, Code 39, Code 93, Code 128 with A/B/C subsets and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2- or 5-digit extensions, Plessey, Postnet, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, Logmars, MSI, Codabar, Planet Code 2D barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (including composite) |
| Software | ZBI 2.0™ — an optional, advanced programming language that enables printers to support standalone applications, connect with peripheral devices, and much more. ZPL and ZPL II™ — Zebra Programming Language allows advanced label formatting and printer control; compatible with all Zebra printers. EPL and EPL2™ — Eltron Programming Language with line mode simplifies label formatting and ensures format compatibility with legacy systems. (EPL with line mode available only in direct thermal models) (EPL available only in 203 dpi models) |
| Display | Yes |
| Movable Label Sensor | Yes |
| Real-time clock | Yes |
Interfaces |
|
| Bluetooth | Yes |
| USB | Yes |
| ETHERNET | Yes |
| RS-232 | Yes |
Physical specification |
|
| Warranty | 24 months printer, 12 months printhead |
| Dimensions | 432 mm x 241 mm x 279 mm |
| Weight | 9,1 kg |
Performance specification |
|
| Operating temperature | 5ºC - 40ºC |
| Storage temperature | -40º to 60ºC |
| Operating humidity | 20% to 85% without condensation |
| Storage humidity | 5% to 85% without condensation |
| Electrical characteristics | Universal power supply with automatic range detection (PFC compliant) 100–240 V AC; 50–60 Hz ENERGY STAR certified |
