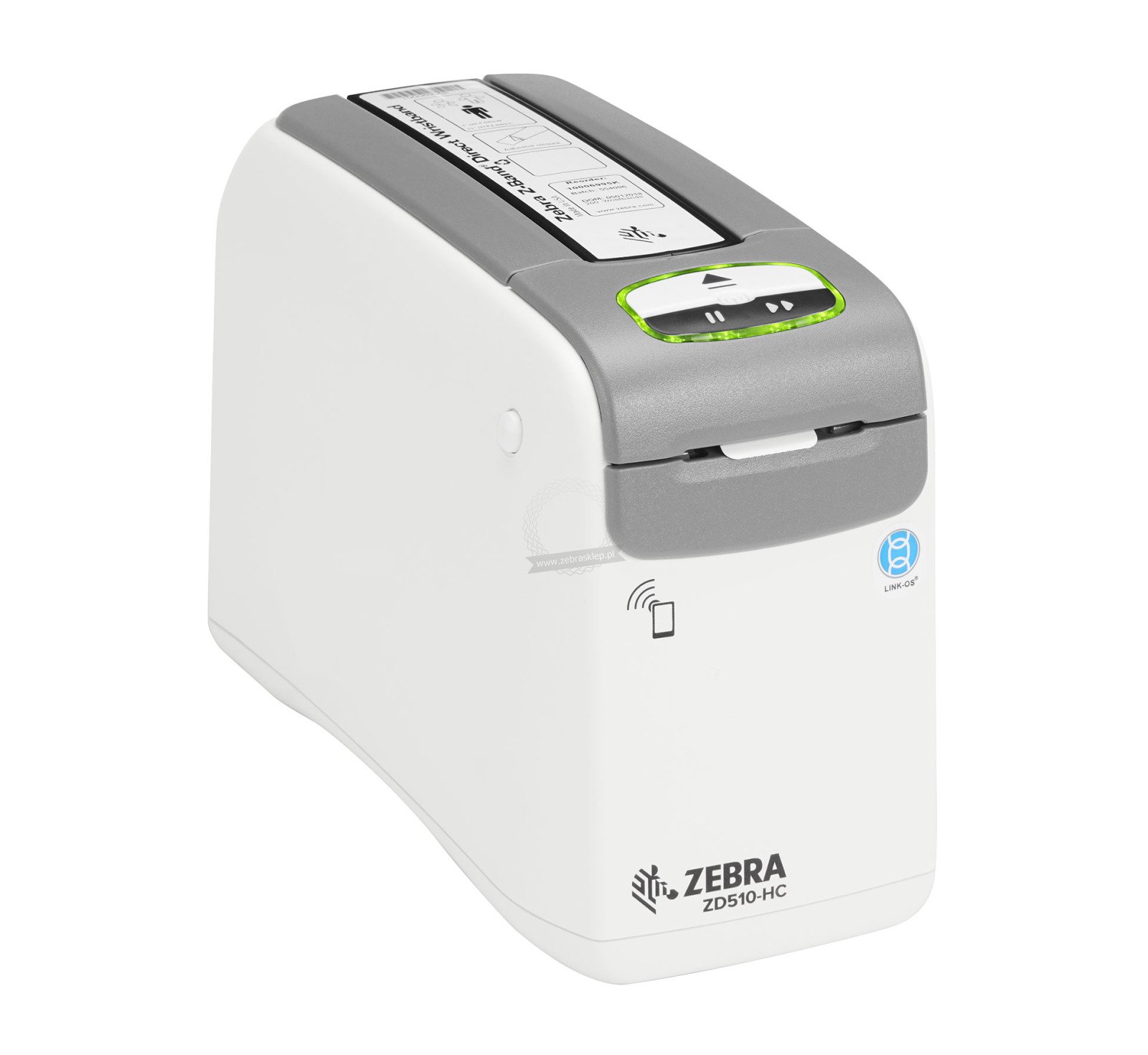

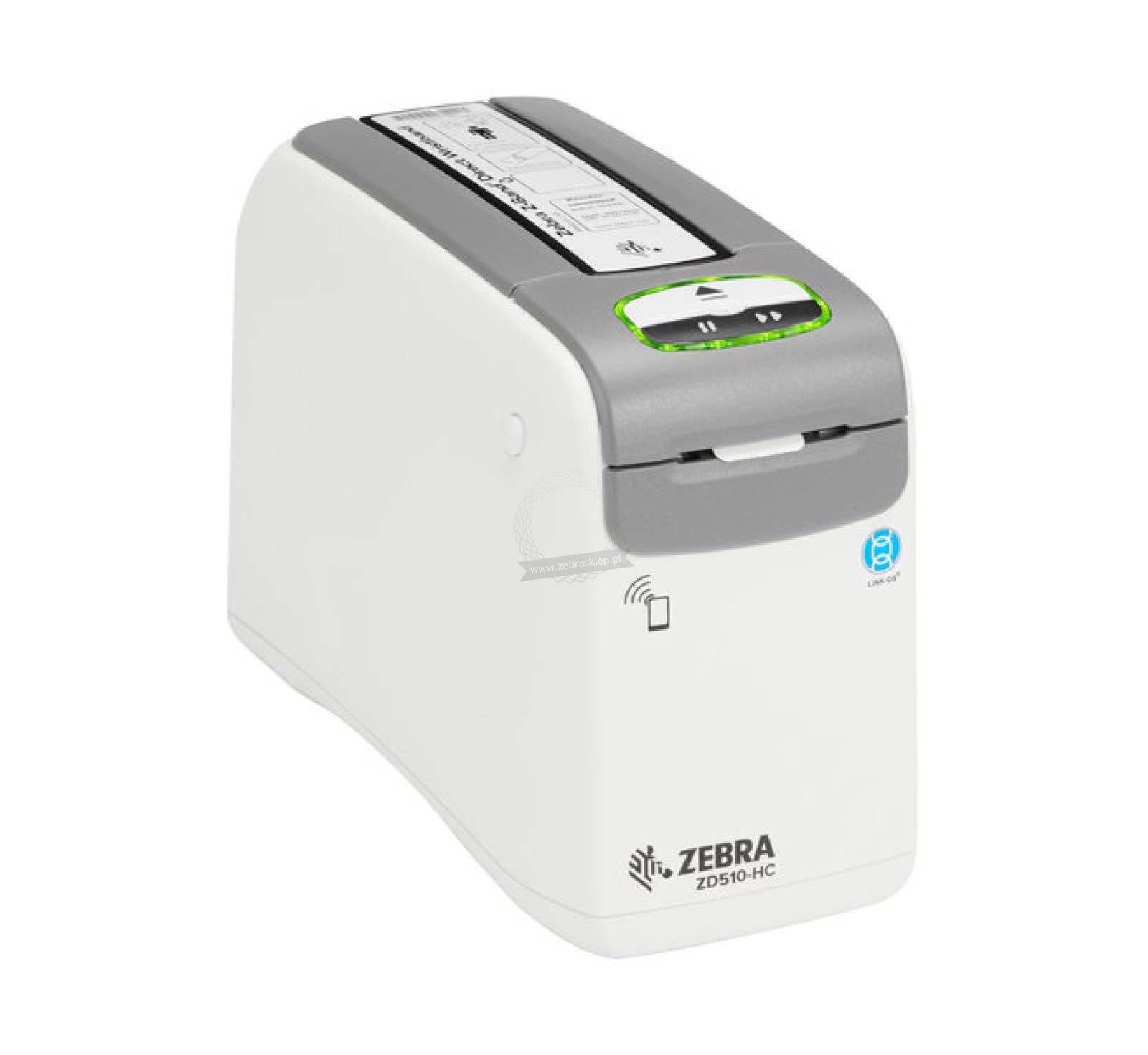

Direct thermal printer ZD510-HC Zebra; ZPL II, XML, 300 dpi, EU and UK Cords, USB, USB Host, Ethernet, BTLE
Cat. no.: ZD51013-D0EE00FZ
Price: €749.30
SRP: €1 093.80
Save up to €344.50
Print speed
Media types
Availability
Make a phone call +48 668 949 599
Other configurations ZD510-HC
2
models
You are planning a major purchase, carrying out a project, Find out more.
Just insert the Zebra Z-Band wristband cartridge and print.
The smartchip in each cartridge allows automatic calibration.
The ZD510-HC instantly identifies the wristband size and automatically configures darkness and speed settings for optimal print quality and wristband durability.
The ZD510-HC accommodates Zebra’s entire line of white and color Z-Band wristbands. Z-Bands are available in a variety of sizes, from infant to adult, with both adhesive or clip closures. Z-Bands are resistant to hand sanitizers and are non-irritating.
Barcodes on Z-Band wristbands are proven to withstand water, soap, foams, alcohol and other common solvents found in healthcare. Independent laboratory testing showed that Z-Bands were two to six times more durable than leading competitors after repeated exposure to common hand sanitizers.
The smartchip in each cartridge allows automatic calibration.
The ZD510-HC instantly identifies the wristband size and automatically configures darkness and speed settings for optimal print quality and wristband durability.
The ZD510-HC accommodates Zebra’s entire line of white and color Z-Band wristbands. Z-Bands are available in a variety of sizes, from infant to adult, with both adhesive or clip closures. Z-Bands are resistant to hand sanitizers and are non-irritating.
Barcodes on Z-Band wristbands are proven to withstand water, soap, foams, alcohol and other common solvents found in healthcare. Independent laboratory testing showed that Z-Bands were two to six times more durable than leading competitors after repeated exposure to common hand sanitizers.
Features
Producer:
Zebra
catalog No.: ZD51013-D0EE00FZ
Printer specification |
|
| Print methods | thermal |
| Printing resolution | 300 dpi (12ptk/mm) |
| Print speed | Healthcare: 51 mm/sec. Z-Band Fun and Z-Band Splash wristbands: 102 mm/sec. |
| Maximum print width | 19,05 mm; 25,4 mm; 30,16 mm |
| Maximum print length | 558 mm |
| Maximum label width | 19,05 mm |
| Maximum label width | 13,06 mm |
| Minimum label length | 76 mm |
| Maximum label length | 558 mm |
| Media types | wristbands |
| Memory | Memory Flash 512 MB; Memory SDRAM 256 MB |
| Programming languages | ZPL or ZPL II |
| Supported codes | Linear codes: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, EAN-14, GS1 DataBar™ (formerly RSS), Industrial 2 of 5, Interleaved 2 of 5, Logmars, MSI, Plessey, Postnet, Standard 2 of 5, UPC-A, UPC-E, UPC-A and UPC-E with 2- or 5-digit EAN extensions; Two-dimensional codes: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR codes |
| Real-time clock | Yes |
Interfaces |
|
| Interface | USB, XML, Ethernet, USB Host, BTLE |
| USB | Yes |
| ETHERNET | Yes |
| USB Host | Yes |
| BTLE | Yes |
| NFC | Yes |
Physical specification |
|
| Color | white-gray |
| Warranty | printer 36 months, printhead 12 months |
| Dimensions | 127 × 178* × 242 mm (W × H* × D) * 153 mm of free space above the printer is required to load the cartridge |
Performance specification |
|
| Operating temperature | 4,4°C to 40°C |
| Storage temperature | -40°C to 60°C |
| Operating humidity | 20%-85% without condensation |
| Storage humidity | 5%-85% without condensation |
| Electrical characteristics | Universal power supply (PFC compliant) 100-240 V AC, 50-60 Hz; ENERGY STAR certified printer |
