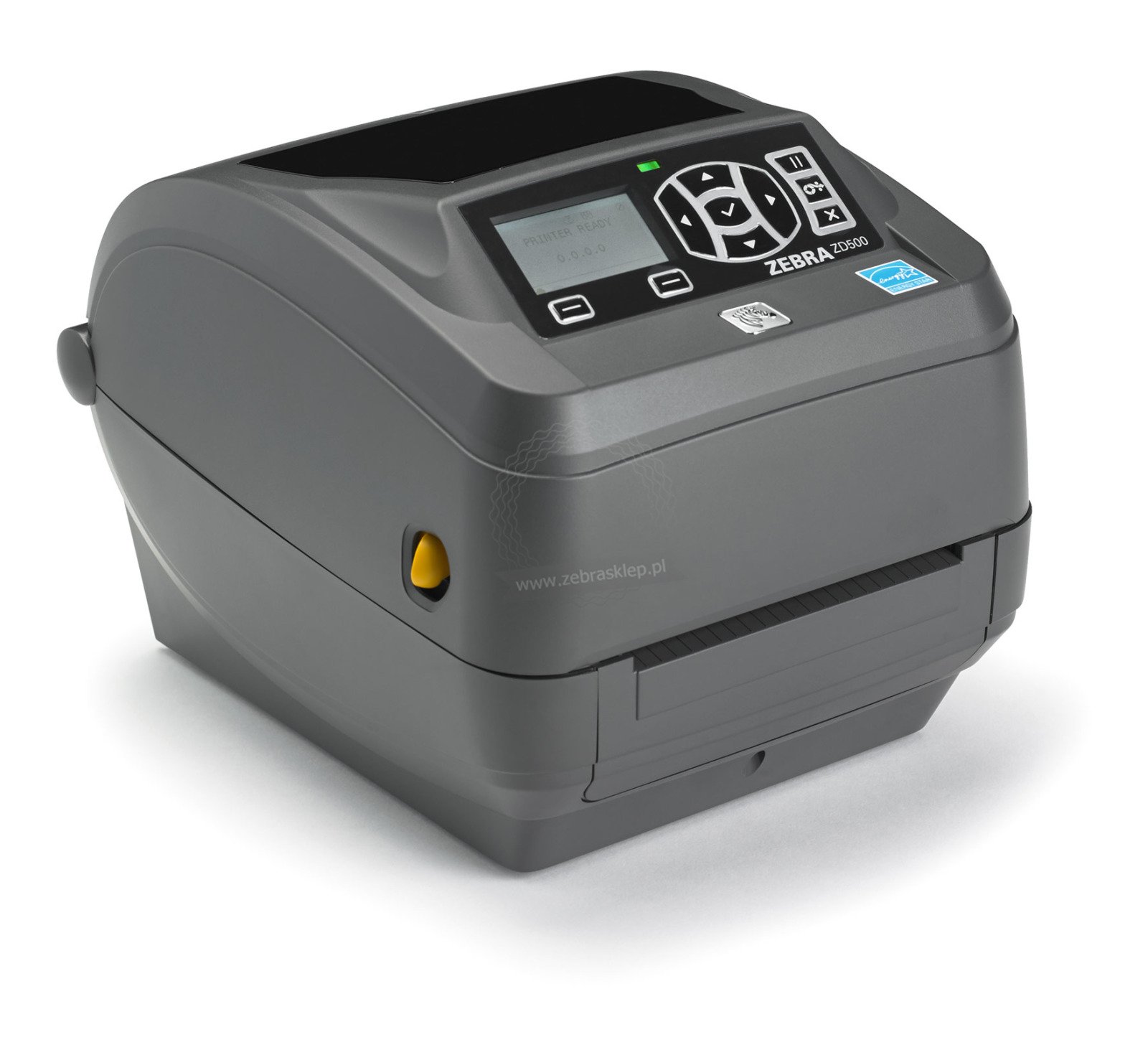

Thermal transfer printer ZD500 Zebra; 300 dpi, USB, Serial, Parallel port, Ethernet, Peeler
Cat. no.: ZD50043-T1E200FZ
Price: €969.20
SRP: €1 315.50
Save up to €346.30
Availability
Make a phone call +48 668 949 599
Other configurations ZD500
1
models
You are planning a major purchase, carrying out a project, Find out more.
LCD User Interface
Quad connectivity: USB, Parallel, Serial, and Ethernet
Sharp 300 dpi printing option
ENERGY STAR® qualified
Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration.
Quad connectivity: USB, Parallel, Serial, and Ethernet
Sharp 300 dpi printing option
ENERGY STAR® qualified
Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration.
Features
Producer:
Zebra
catalog No.: ZD50043-T1E200FZ
Printer specification |
|
| Print methods | thermal/thermal transfer |
| Printing resolution | 300 dpi (12ptk/mm) |
| Print speed | 102 mm/s |
| Maximum print width | 104 mm |
| Maximum print length | 990 mm |
| Maximum label width | 19 mm |
| Maximum label width | 108 mm |
| Minimum label length | Minimum in tearing mode: 6.3 mm; Minimum with label presence sensor: 12.7 mm; Minimum with cutter: 25.4 mm |
| Maximum label length | Max. length of discontinuous media: 990 mm |
| Label roll outer diameter | 127 |
| Label roll inner diameter | 12,7 mm, 25 mm, 35 mm, 37,1 mm, 76 mm |
| Label thickness | 0,08 mm to 0,305 mm |
| Media types | Labels direct thermal on roll or fanfold, die-cut or continuous feed, with or without black mark, tags, continuous receipt paper, wristbands |
| Ribbon width | 33,8 mm to 109,2 mm |
| Ribbon length | 74 mm |
| Ribbon roll inner diameter | 12,7 mm |
| Memory | Standardowo SDRAM 128 MB (4 MB dostępne dla użytkownika); Standardowo fl ash 256 MB (56 MB dostępne dla użytkownika) |
| Programming languages | XML; ZPL II; Web View; Alert; ZBI |
| Supported codes | Stosunek kresek: 2:1 (bez rotacji) i 3:1; Kody liniowe: Codabar, Code 11 (ZPL), Code 128, Code 39, Code 93, EAN-13, EAN-8, EAN-14 (ZPL), German Post Code (EPL), przemysłowy 2 z 5 (ZPL), przeplatany 2 z 5, Japanese Postnet (EPL), ISBT-128 (ZPL), Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar (RSS-14), standardowy 2 z 5 (ZPL), UCC/EAN-128 (EPL), UPC i EAN z rozszerzeniami 2- lub 5-cyfrowymi (ZPL), UPC-A, UPC-A i UPC-E z rozszerzeniami 2- lub 5-cyfrowymi EAN, UPC-E i GS1 Databar (dawniej RSS); kody kreskowe EPL tylko w modelach GX; Kody dwuwymiarowe: Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, QR Code, PDF417, MicroPDF417, Aztec (dla EPL i ZPL, chyba że podano inaczej) |
| Software | Link-OS® |
| Additional options | Peeler |
| Ribbon roll | external |
| Peeler | Yes |
| Display | Yes |
| Movable Label Sensor | Yes |
| Real-time clock | Yes |
| Additional software | full version of ZebraDesigner |
Interfaces |
|
| Interface | LPT, RS-232, Ethernet, USB |
| USB | Yes |
| ETHERNET | Yes |
| RS-232 | Yes |
| LPT | Yes |
| NFC | Yes |
Physical specification |
|
| Color | dark gray |
| Warranty | printer 24 months, printhead 6 months |
| Dimensions | Szerokość: 193 mm Wysokość: 191 mm Głębokość: 254 mm |
| Weight | 2,1 kg |
Performance specification |
|
| Operating temperature | 4,4°C to 41°C |
| Storage temperature | -40°C to 60°C |
| Operating humidity | 10% to 90% without condensation |
| Storage humidity | 5% to 95% without condensation |
| Electrical characteristics | Autosensing power supply (PFC compliant) 100-240 V AC, 50-60 Hz |
