10 models

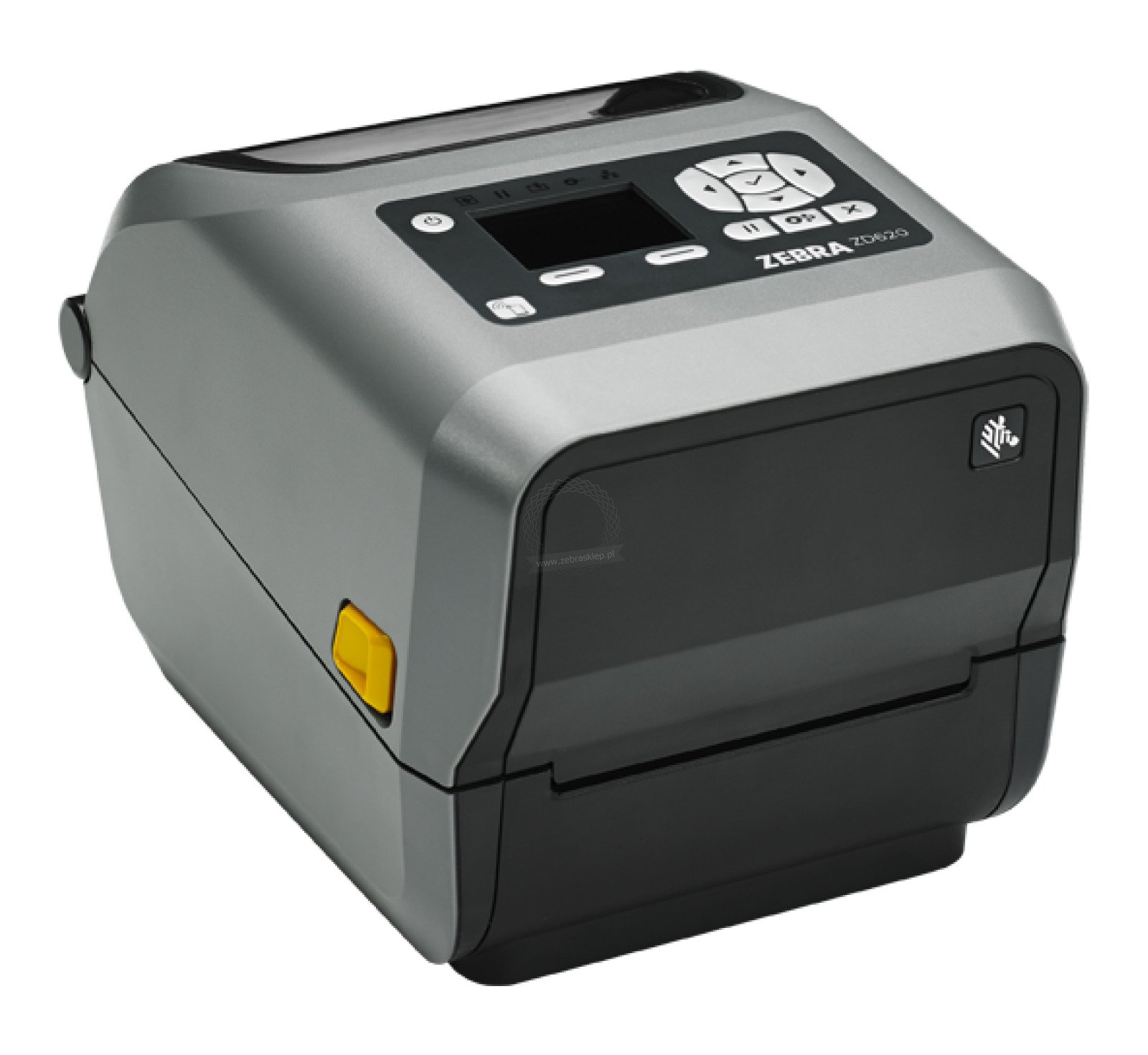

Thermal transfer printer ZD620 Zebra; Standard EZPL, 300 dpi, EU and UK Cords, USB, USB Host, BTLE, Serial, Ethernet

Cat. no.: ZD62043-T0EF00EZ

Price: €704.70

SRP: €1 062.00

Save up to €357.30

Print methods

thermal/thermal transfer thermal

Printing resolution

300 dpi (12ptk/mm) 203 dpi (8pts/mm)

Print speed

152 mm/s 203 mm/s

Cutter

Not Yes

Display

Not Yes

WIFI

Not Yes

Compare all parameters

Availability Make a phone call +48 668 949 599

Other configurations ZD620 10 models

Make a phone call +48 668 949 599

You are planning a major purchase, carrying out a project, Find out more.

The ZD620t delivers best-in-class print speeds — 8ips @ 203 dpi and 6ips @ 300 dpi — for maximum printer throughput and productivity

New at-a-glance five LED status icons take the guesswork out of printer status

Configuration is a snap with the optional color LCD and 1-button user interface

You can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. Wireless models include fast 802.11ac Wi-Fi and Bluetooth 4.1

Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration.

Features

Producer:

Zebra

catalog No.: ZD62043-T0EF00EZ

Printer specification
Print methods	thermal/thermal transfer
Printing resolution	300 dpi (12ptk/mm)
Print speed	152 mm/s
Maximum print width	108 mm (4.25")
Maximum print length	991 mm
Maximum label width	15 mm
Maximum label width	118 mm
Maximum label length	991 mm
Label roll outer diameter	127 mm
Label roll inner diameter	12,7 mm i 25,4 mm as standard; 38,1 mm, 50,8 mm i 76,2 mm using an adapter
Label thickness	0.08 mm (min.), 0.1905 mm (max.) (tear-off mode only)
Media types	On roll or fanfold, die-cut or continuous feed with or without black mark, tags, continuous receipt paper, wristbands, linerless media* * For use only with linerless-compatible printer model
Ribbon width	33,8 mm - 109,2 mm
Ribbon length	300 m, 74 m
Ribbon roll inner diameter	33,8 mm - 109,2 mm
Memory	Flash 512 MB, SDRAM 256 MB
Programming languages	ZPL II; EPL 2; XML; ZBI
Supported codes	Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC i EAN z rozszerzeniami 2- lub 5-cyfrowymi, Plessey, Postnet, standardowy 2 z 5, przemysłowy 2 z 5, przeplatany 2 z 5, Logmars, MSI, Codabar, Planet Code, Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software	Link-OS®
Additional options	Instalowany fabrycznie dyspenser ? odklejanie i podawanie etykiet z czujnikiem obecności etykiety Instalowany fabrycznie obcinak
Tear	Yes
Movable Label Sensor	Yes
Real-time clock	Yes
Interfaces
Interface	RS-232,USB, Ethernet,
USB	Yes
ETHERNET	Yes
RS-232	Yes
USB Host	Yes
BTLE	Yes
Physical specification
Color	black-gray
Warranty	printer 24 months, printhead 6 months
Dimensions	267 x 202 x 192 mm
Weight	2.5 kg
Performance specification
Operating temperature	4,4°C to 41°C
Storage temperature	-40°C to 60°C
Operating humidity	10% to 90% without condensation
Storage humidity	5% to 95% without condensation
Electrical characteristics	Autosensing power supply (PFC compliant) 100–240 V AC, 50–60 Hz; ENERGY STAR certified
