5 models

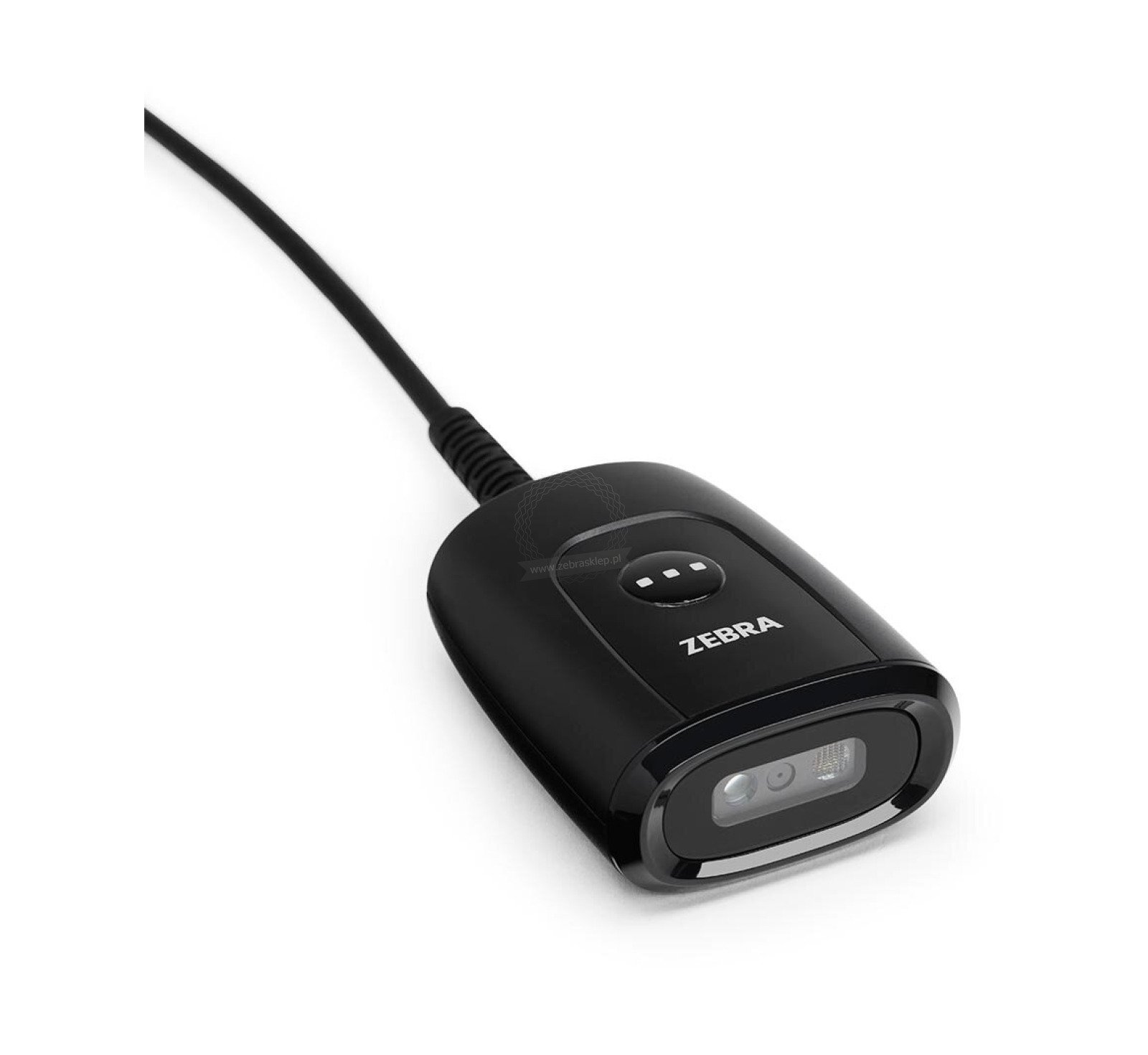

Handheld scanner Zebra DS5502; SR Black (with Multi-Mount) USB KIT: DS5502-SR40004ZZWW Scanner, CBL-U10755-01 7' USB Cable, BRKT-MM0055C-04

Cat. no.: DS5502-SR4US70MMZW

Price: €296.40

SRP: €431.00

Save up to €134.60

RS-232

Not Yes

Cable

not included USB cable cable RS-232

Compare all parameters

Availability Make a phone call +48 668 949 599

Other configurations DS5502 5 models

Make a phone call +48 668 949 599

You are planning a major purchase, carrying out a project, Find out more.

Features

Producer:

Zebra

catalog No.: DS5502-SR4US70MMZW

Interfaces
Interface	USB, Serial (RS-232)
USB	Yes
Physical specification
Color	black
Warranty	3 years against manufacturing and material defects
Dimensions	3,0 cm (ht.) × 5,6 cm (wid.) × 7,2 cm (dep.)
Weight	65,2 g
Performance specification
Operating temperature	-20°C to +50°C
Storage temperature	-40°C to +70°C
Operating humidity	relative humidity 5% to 95%, without condensation
Storage humidity	relative humidity 5% to 95%, without condensation
Scanner specification
Compatible codes	1D: All major 1D code types, including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharmacode); 2D: All major 2D code types, including PDF417, Micro PDF417, composite codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR code, Micro QR, Han Xin, postal codes, SecurPharm; OCR: OCR-A, OCR-B, MICR, US currency
Scanner type	1D i 2D, imager (Standard Range)
Decode ranges	to 36 cm
Decode range type	SR
Feedback	light, audio
Decode speed	Up to 254 cm per second (UPC codes 13 mil in optimized mode)
Required code contrast	Minimum reflectance coefficient: 15%
Fall resistance	Durable design withstands multiple drops to concrete from 1.5 m
IP norm	IP54
Cable	USB cable
Stand	yes
Additional information	White-green LED sight
