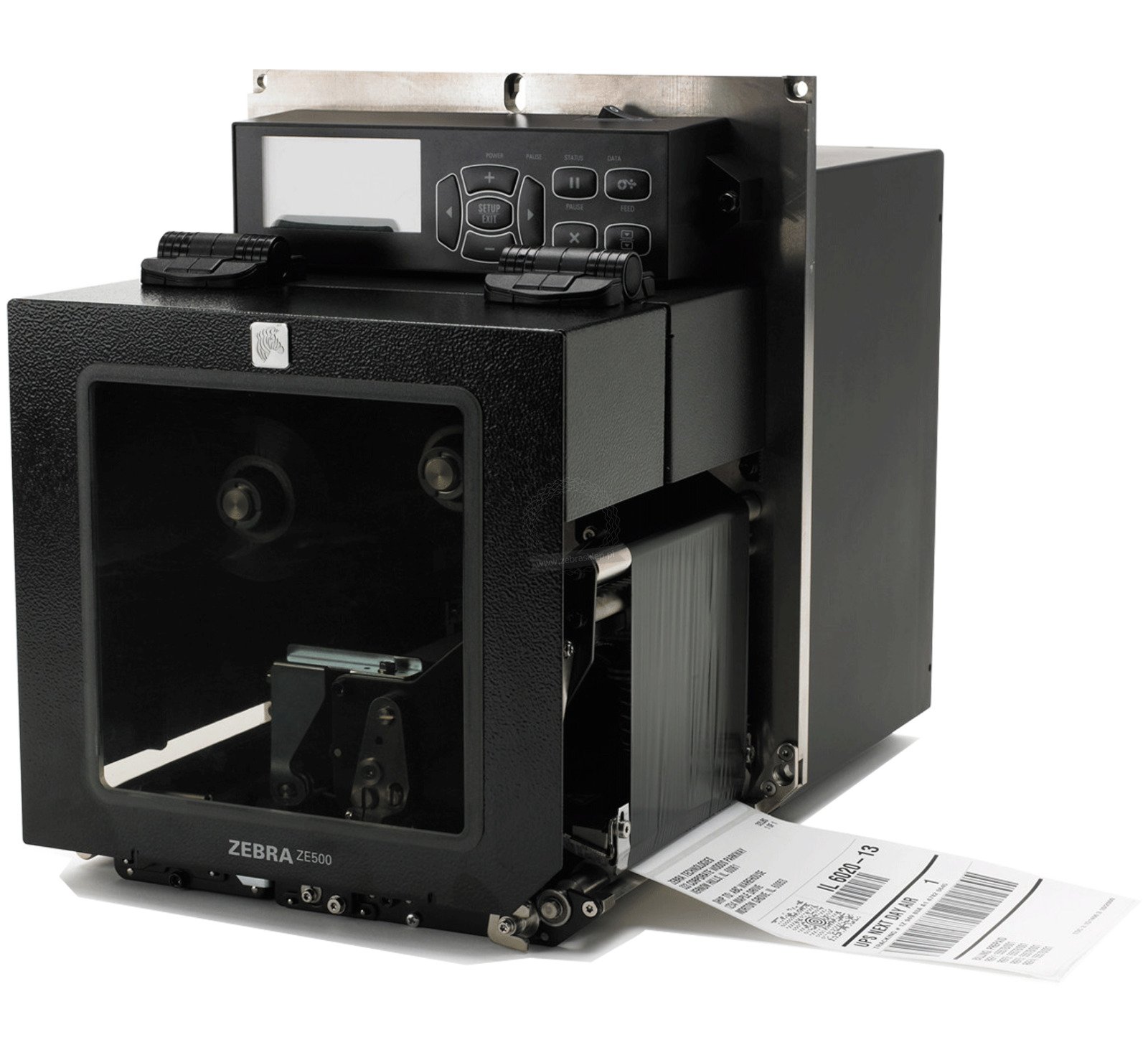

Printing module ZE500 Zebra; 4", LH; 203dpi, Euro/UK Cord, Serial, Parallel, USB, Int 10/100, RFID Configured for EMEA
Cat. no.: ZE50042-L0E0R10Z
Price: €7 248.00
SRP: €8 140.80
Save up to €892.80
Availability
5-6 days in stock
Other configurations ZE500-4
1
models
You are planning a major purchase, carrying out a project, Find out more.
Features
Producer:
Zebra
catalog No.: ZE50042-L0E0R10Z
Printer specification |
|
| Print methods | thermal/thermal transfer |
| Printing resolution | 203 dpi (8 pts/mm) |
| Print speed | 305 mm/s |
| Maximum print width | 104 mm (4.09") |
| Maximum print length | 990 mm (3810 mm - continuous media) |
| Maximum label width | 16 mm |
| Maximum label width | 114 mm |
| Minimum label length | 13 mm (with retraction), 6.5 mm (without retraction and in stream mode) |
| Maximum label length | 990 mm (3810 mm - continuous media) |
| Label thickness | 0,135 mm to 0,254 mm |
| Media types | Continuous, die-cut or with a black marker |
| Ribbon width | 25,4 mm to 107 mm |
| Ribbon length | Capacity for 600 m tape |
| Ribbon roll inner diameter | 25,4 mm |
| Memory | Pamięć SDRAM 16 MB, fl ash 64 MB |
| Programming languages | XML, ZPL, ZPL II |
| Supported codes | Obsługiwane wszystkie standardowe kody liniowe i dwuwymiarowe. Code 11, Codabar, Aztec Code, Codablock, UPC-E, UPC-A, UPC 2 or 5 Digit Extension, UCC Case Codes, TLC 39, Standard 2 of 5, RSS-14, RSS Composite, QR Code, POSTNET, Plessey, Planet Code, PDF-417, MSI, Micro PDF, Maxi Code, LOGMARS, ISBT-128, Interleaved 2 of 5, Industrial 2 of 5, EAN-8, EAN-13, EAN With 2 or 5 Digit Extension, Data Matrix, Code 93, Code 49, Code 39, Code 128-C, Code 128-B, Code 128-A |
| Software | ZebraDesigner Pro |
| Ribbon roll | external |
| Display | Yes |
| Rfid | Yes |
| Real-time clock | Yes |
| Additional software | full version of ZebraDesigner |
| Resistance | The fully metal industrial construction allows for easy integration with automatic labeling systems and is more resistant to dust and water |
Interfaces |
|
| Interface | RS-232, USB, LPT, Ethernet |
| USB | Yes |
| ETHERNET | Yes |
| RS-232 | Yes |
| LPT | Yes |
Physical specification |
|
| Color | black |
| Warranty | 12 months printer, 6 months printhead |
| Dimensions | 245 x 300 x 379 mm (szer. x wys. x gł.) |
| Weight | 15.4 kg |
Performance specification |
|
| Operating temperature | 0°C to 40°C |
| Storage temperature | -40°C to 71°C |
| Operating humidity | 20% to 95% (relative humidity without condensation) |
| Storage humidity | 5% to 95% (relative humidity without condensation) |
| Electrical characteristics | Universal power supply with Power Factor Correction (PFC) 90–264 V (AC), 47–63 Hz |
Other configurations
Compare configurations
1
models
ZE50042-L0E0R10Z
Printing module ZE500 Zebra; 4", LH; 203dpi, Euro/UK Cord, Serial, Parallel, USB, Int 10/100, RFID Configured for EMEA
Net: €5 892.68
Gross: €7 248.00
Consumables
02300BK11030
5-6 days
Wax Ribbons Zebra 2300 Standard Performance Wax Black 110mmx300m core 25mm
Price: €10.50
880026-076
5-6 days
Paper thermal transfer labels Zebra Z-Perform 1000T uncoated permanent adhesive White 102x76mm core 76mm
Price: €21.80
800630-205
5-6 days
Paper thermal transfer labels Zebra Z-Select 2000T coated permanent adhesive perforated White 76x51mm core 76mm
Price: €27.30
05100BK11045
5-6 days
Resin Ribbon Zebra 5100 Premium Resin Black 110mmx450m core 25mm
Price: €103.50
880350-101
5-6 days
Polyester thermal transfer labels Zebra Z-Ultimate 3000T White coated permanent adhesive White 102x102mm core 76mm
Price: €127.30
880386-101
5-6 days
Polyester thermal transfer labels Zebra Z-Ultimate 3000T Silver coated permanent adhesive silver 102x102mm core 76mm
Price: €136.80
880170-101
5-6 days
Paper direct thermal labels Zebra Z-Select 2000D coated permanent adhesive White 102x102mm core 76mm
Price: €41.00
3007253-T
5-6 days
Paper direct thermal labels Zebra Z-Perform 1000D uncoated permanent adhesive White 102x76mm core 76mm
Price: €29.60
02300BK08345
2-3 days
Wax Ribbons Zebra 2300 Standard Performance Wax Black 83mmx450m core 25mm
Price: €10.20
05095BK08945
2-3 days
Resin Ribbon Zebra 5095 High-Performance Resin Black 89mmx450m core 25mm
Price: €44.60
02300BK11045
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 110mmx450m core 25mm
Price: €15.40
04800BK11045
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 110mmx450m core 25mm
Price: €45.40
04800BK08045
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 80mmx450m core 25mm
Price: €33.10
02300BK08945
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 89mmx450m core 25mm
Price: €12.50
02100BK11045
24h
Wax Ribbons Zebra 2100 High-Performance Wax Black 110mmx450m core 25mm
Price: €17.90
03200BK11045
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 110mmx450m core 25mm
Price: €31.90
04800BK06045
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 60mmx450m core 25mm
Price: €25.20
02300BK06045
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 60mmx450m core 25mm
Price: €8.40
05095BK06045
24h
Resin Ribbon Zebra 5095 High-Performance Resin Black 60mmx450m core 25mm
Price: €34.30
02300BK04045
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 40mmx450m core 25mm
Price: €6.30
03200BK08945
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 89mmx450m core 25mm
Price: €22.80
03400BK11045
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 110mmx450m core 25mm
Price: €27.50
02300BK06030
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 60mmx300m core 25mm
Price: €5.10
880150-025
24h
Paper direct thermal labels Zebra Z-Select 2000D coated permanent adhesive White 38x25mm core 76mm
Price: €20.70
02100BK08045
24h
Wax Ribbons Zebra 2100 High-Performance Wax Black 80mmx450m core 25mm
Price: €11.50
03200BK10245
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 102mmx450m core 25mm
Price: €33.40
03400BK06045
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 60mmx450m core 25mm
Price: €15.00
03200BK06045
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 60mmx450m core 25mm
Price: €17.70
880738-025
24h
Paper direct thermal labels Zebra Z-Perform 1000D uncoated permanent adhesive White 76x25mm core 76mm
Price: €22.40
02300BK08330
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 83mmx300m core 25mm
Price: €7.90
05095BK08345
24h
Resin Ribbon Zebra 5095 High-Performance Resin Black 83mmx450m core 25mm
Price: €54.80
03400BK10245
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 102mmx450m core 25mm
Price: €22.30
02300BK10245
24h
Wax Ribbons Zebra 2300 Standard Performance Wax Black 102mmx450m core 25mm
Price: €16.20
05095BK11045
24h
Resin Ribbon Zebra 5095 High-Performance Resin Black 110mmx450m core 25mm
Price: €62.90
880134-050
24h
Paper thermal transfer labels Zebra Z-Select 2000T coated permanent adhesive White 102x51mm core 76mm
Price: €38.20
04800BK08945
24h
Resin Ribbon Zebra 4800 Standard Performance Resin Black 89mmx450m core 25mm
Price: €36.80
03400BK04045
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 40mmx450m core 25mm
Price: €10.00
02100BK10245
24h
Wax Ribbons Zebra 2100 High-Performance Wax Black 102mmx450m core 25mm
Price: €14.70
03200BK08045
24h
Wax/Resin Ribbons Zebra 3200 Premium High-Performance Wax/Resin Black 80mmx450m core 25mm
Price: €26.20
03400BK08345
24h
Wax/Resin Ribbons Zebra 3400 High-Performance Wax/Resin Black 83mmx450m core 25mm
Price: €18.20
880114-019
24h
Paper thermal transfer labels Zebra Z-Select 2000T coated permanent adhesive White 38x19mm core 76mm
Price: €22.40
880170-076
24h
Paper direct thermal labels Zebra Z-Select 2000D coated permanent adhesive White 102x76mm core 76mm
Price: €47.00
